Product Details
Place of Origin: China
Brand Name: Luyoung
Certification: CE
Model Number: DK7745F
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD6000-8000
Packaging Details: Fumigation-free plywood
Delivery Time: 45 working days
Payment Terms: L/C, T/T
Supply Ability: 100sets
Workbench Size(mm): |
830x600 |
Worktable Travel(mm): |
450x550 |
Surface Roughness Of Machining(μm): |
Ra≤2.5 |
Ra≤2.5: |
160mm 2/min |
Maximum Cutting Taper: |
“+_3 Degree |
Max. Load(kg): |
450kg |
Max. Cutting Thickness(mm): |
400 |
Power: |
2.5KW |
Dimension(L*W*H)mm: |
1600x1240x1400mm |
Workbench Size(mm): |
830x600 |
Worktable Travel(mm): |
450x550 |
Surface Roughness Of Machining(μm): |
Ra≤2.5 |
Ra≤2.5: |
160mm 2/min |
Maximum Cutting Taper: |
“+_3 Degree |
Max. Load(kg): |
450kg |
Max. Cutting Thickness(mm): |
400 |
Power: |
2.5KW |
Dimension(L*W*H)mm: |
1600x1240x1400mm |

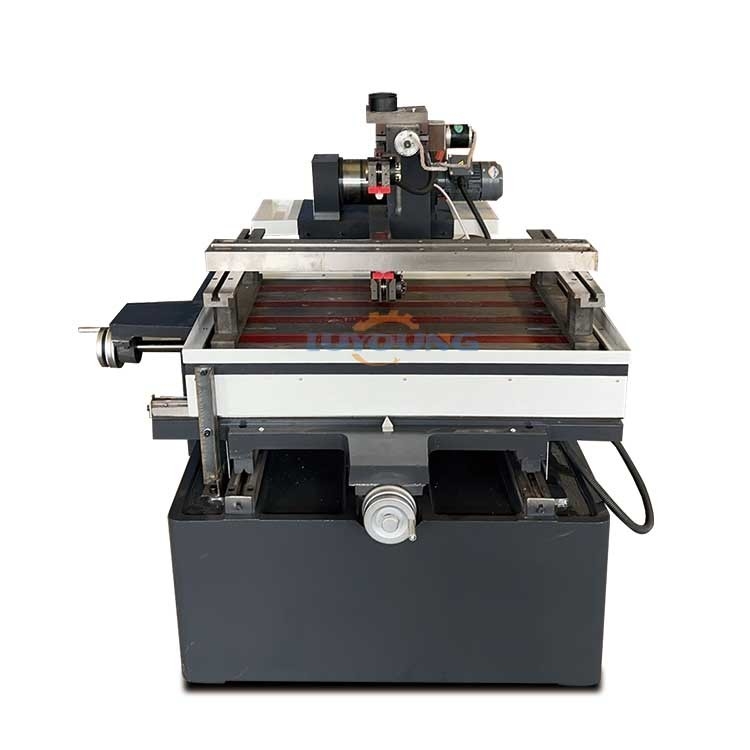

The DK7745F Fast Wire Electrical Discharge Machining (WEDM) machine delivers high-speed precision cutting for metal components. Utilizing a rapidly reciprocating molybdenum wire electrode (8-10 m/s), this system achieves cutting speeds of up to 160 mm²/min with an accuracy of 0.05-0.08 mm.
The cutting process employs electrical spark erosion where the negatively charged wire and positively charged workpiece create high temperatures that precisely melt or vaporize material. The molybdenum wire's high melting point and continuous movement ensure minimal wear while maintaining cutting precision.
This CNC Wire EDM machine is ideal for:
Regular maintenance of guide wheels, guides, molybdenum wire quality control, and cutting fluid management are essential for optimal performance.
Developed from 1960s technology, modern fast wire EDM machines now incorporate:
