Heavy Duty Vertical Milling Center Vmc1580 5 Axis CNC Milling Machine

Name: Heavy Duty Vertical Milling Center Vmc1580 5 Axis CNC Milling Machine
Brand: shandong lu young machinery co.,ltd
SKU: vmc1580
Price: 42,950.00 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: luyoung

Certification: CE

Model Number: vmc1580

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1/SET

Price: $36900-$49000

Packaging Details: Non-fumigating wooden cases

Delivery Time: 30DAYS

Payment Terms: T/T, Western Union, MoneyGram, D/A, D/P

Supply Ability: 10/SET

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                BT40 VMC1580 CNC Milling Machine, BT50 Vertical Milling Center Vmc1580, 5 axis Vertical Milling Center


Table Size:	1600*800mm	Color:	Customized According To Customer Requirements
Z Motor Torque:	7.7N.m	Product Type:	Cnc 3/4/5 Axis Machine
Cnc Or Not:	CNC	Spindle Inner Cone:	BT40/50
Atc Type:	Armless /arm

Table Size:	1600*800mm
Color:	Customized According To Customer Requirements
Z Motor Torque:	7.7N.m
Product Type:	Cnc 3/4/5 Axis Machine
Cnc Or Not:	CNC
Spindle Inner Cone:	BT40/50
Atc Type:	Armless /arm

Heavy Duty Vertical Milling Center Vmc1580 5 Axis CNC Milling Machine

Specification

Item	VMC1580
Size of worktable(length×width)mm	1700*800
T slot (mm)	5-22x150
Max loading weight on worktable	1500
X-Axis travel(mm)	1500
Y-Axis travel(mm)	800
Z-Axis travel(mm)	700
Distance between spindle nose and table	170-840
Distance between spindle center and column(mm)	810
Spindle taper	BT50-155
Max. spindle speed( rpm)	8000/10000/12000
Spindle motor power(Kw)	18.5kw
Rapid feeding speed: X,Y,Z axis m/min	16/16/16 (24/24//24 liner guidway)
Fast cutting speed m /min	10m/min
Positional accuracy	±0.01 mm
Repeat positional accuracy	±0.005mm
Auto Tool changer type	16 tools head type tool changer(optional 24 arm type auto tool changer)
Max. tool length	300mm
Max. Tool diameter	Φ80(adjacent tool)/φ150(not adjacent tool)
Max.tool weight	8kg
Tool changing time(tool-to-tool)	7sec
Air pressure	0.6 Mpa
Machine weight	13000KG
Overall sizse(mm)	430032003100

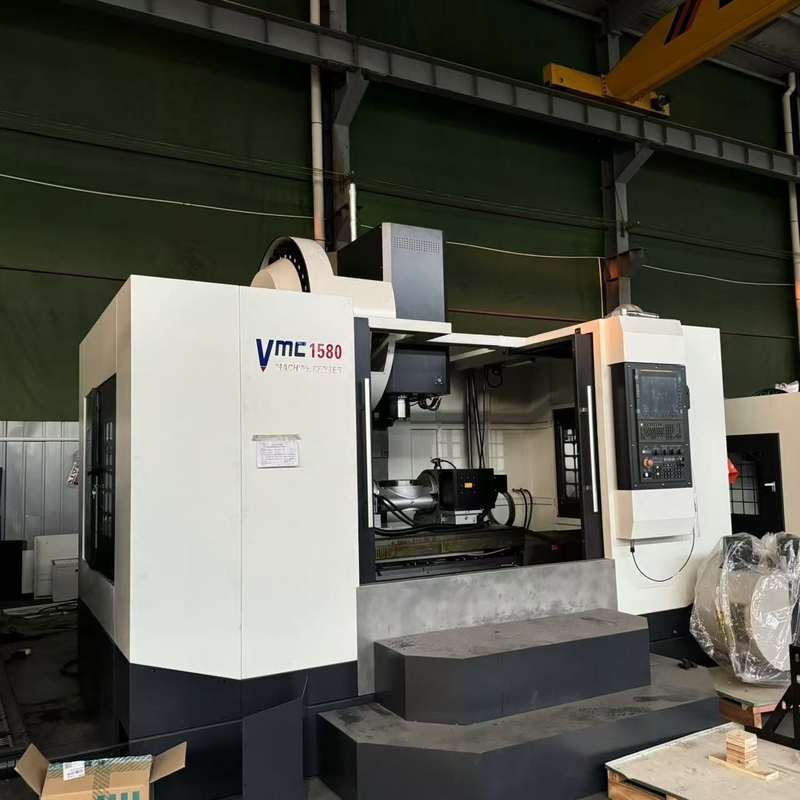

Heavy Duty Vertical Milling Center Vmc1580 5 Axis CNC Milling Machine 0

Product Description

Pls notice the important spare parts used famous brands

1. The warranty period of our products is one year. If there is any damage in the warranty period, we will send it to you for free.We provide 24-hour online technical service and contact us at any time.
2. 365 days without false service, uninterrupted supply, pre-sales consultation, after-sales service and other technical support We also offer free technical training and overseas services.

Welcome to visit our factory
