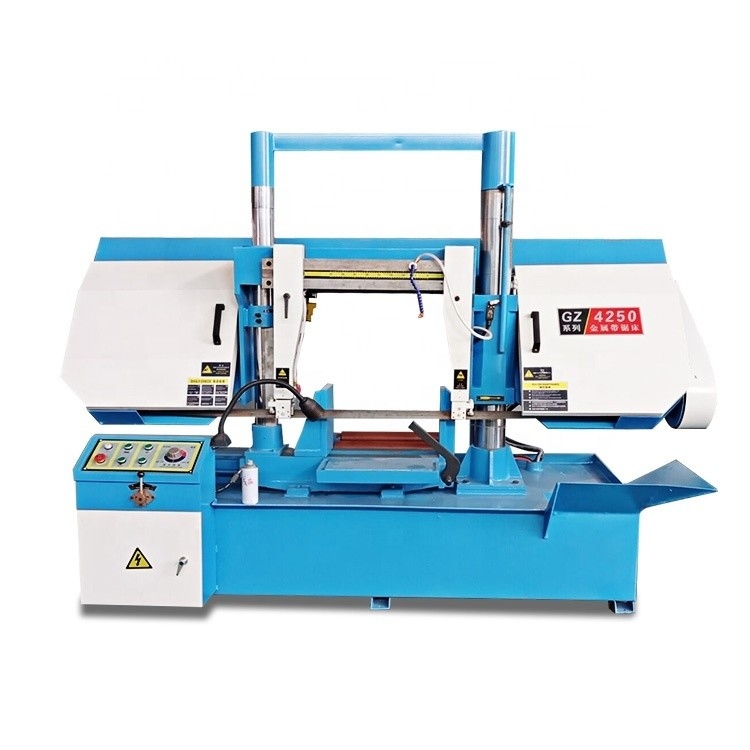

45m Min Blade Double Column Horizontal Metal Steel Iron Band Saw Machine

Product Details

Place of Origin: Shandong, China

Document: Product Brochure PDF

Payment & Shipping Terms

Price: $5,000.00/sets >=1 sets

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                band saw iron machine, Horizontal Iron Band Saw, 45m min Iron Band Saw Machine


Condition:	New	Machine Type:	Band Saw Machine, Semi Bandsaw Pipe Cutting Machine GB4250 Metal Band Sawing Machine
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	New Product 2020	Cutting Capacity (mm):	500
Blade Speed (m/min):	27,45,69m/min	Saw Blade Tension Method:	Hydraulic
Warranty Of Core Components:	1 Year	Core Components:	Gearbox, Pressure Vessel, Pump, Gear, Bearing, Engine, Motor, PLC
Showroom Location:	None	Warranty:	1 Year
Weight (KG):	800	Applicable Industries:	Manufacturing Plant
Key Selling Points:	Competitive Price	Motor Power (kw):	5.5
CNC Or Not:	CNC	Automatic Grade:	Automatic
After-sales Service Provided:	Engineers Available To Service Machinery Overseas	Sawing Range:	300mm
Belt Saw Blade Size:	3050341.1mm	Saw Blade Speed:	27,45,69m/min
Main Motor:	2.2kw	Oil Pump Motor:	0.42kw
Color:	Customizable

Condition:	New
Machine Type:	Band Saw Machine, Semi Bandsaw Pipe Cutting Machine GB4250 Metal Band Sawing Machine
Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided
Marketing Type:	New Product 2020
Cutting Capacity (mm):	500
Blade Speed (m/min):	27,45,69m/min
Saw Blade Tension Method:	Hydraulic
Warranty Of Core Components:	1 Year
Core Components:	Gearbox, Pressure Vessel, Pump, Gear, Bearing, Engine, Motor, PLC
Showroom Location:	None
Warranty:	1 Year
Weight (KG):	800
Applicable Industries:	Manufacturing Plant
Key Selling Points:	Competitive Price
Motor Power (kw):	5.5
CNC Or Not:	CNC
Automatic Grade:	Automatic
After-sales Service Provided:	Engineers Available To Service Machinery Overseas
Sawing Range:	300mm
Belt Saw Blade Size:	3050341.1mm
Saw Blade Speed:	27,45,69m/min
Main Motor:	2.2kw
Oil Pump Motor:	0.42kw
Color:	Customizable

45m Min Blade Double Column Horizontal Metal Steel Iron Band Saw Machine

45m/min Blade Speed Double Column Horizontal Metal Steel Iron Band Saw Sawing Machine

GB4250 Factory price double column horizontal metal steel iron cutting band saw sawing machine

Specification

Model Name			GB4240	GB4250
Max.cutting			400-400×400m	500-500×500mm
Saw blade	Size	5000×41×1.3mm	5800×41×1.3mm
		Speed	27,45,69m/min
		Guides	Carbide and bearing blade guides
		Cleaning	Power wire brush & flood coolant
		Tension	Manual
Motor output	Blade	4kw	5.5kw
		Hydraulic	1.5kw	1.5kw
		Coolant	0.09kw	0.09kw
Work feeding			Manual
Work Vice			Hydraulic
Machine size(mm)			2380×1350×1950	2500×1550×2200
Machine Weight(kg)			1400	1600

Product Description

GB4250 Factory price double column horizontal metal steel iron cutting band saw sawing machine

1. Product selection services, you can give us your workpieces or drawings, then our Professional team will choose the most suitable model for you.
2.Flexible configuration, you tell us your request then we design and produce it.
3.Free training, we supply free training online or at our workshop.
4.Free technical support, including machine brochures, machine inspection certificate, precision inspection book, machine foundation diagram , standard machine tools .
5.7×24 hours service, listen in time and handle your feedback within 24 hours.

Product Feature

The GB4250 Factory price double column horizontal metal steel iron cutting band saw sawing machine Factory price double column horizontal metal steel iron cutting band saw sawing machine, and the saw wheel drives the saw band to cut. There are two main types of band sawing machines: vertical and horizontal. The saw frame of the vertical band saw machine is set vertically, and the work piece moves during cutting to cut the curve contour of the sheet and the formed part. The saw band can also be replaced with a file chain or sanding belt for filing or sanding. The saw frame of the horizontal band saw machine is arranged horizontally or obliquely, and feeds in the vertical direction or the direction of swinging around a point. The saw band is generally twisted by 40° to keep the saw teeth perpendicular to the work piece. Horizontal type is divided into scissors type, double column, single column type band saw; according to the usage, it is divided into manual type (economical manual feeding and manual cutting of materials) and automatic type; according to the automation program using the controller, it can be divided into
manual type ( Semi-automatic manual feeding) automatic type (automatic feeding and automatic cutting); according to the cutting angle requirements, it is divided into angle sawing machine (can saw the cutting angle of 90 degrees and 45 degrees) without angle, that is, 90 degrees vertical cutting.
Features of Double Column Horizontal Metal Band Sawing Machine Series Band Sawing Machine:
♣Double column structure, vertical lifting, high stability
♣Hydraulic control of cutting speed, stepless speed regulation
♣Work piece clamping hydraulic clamping, easy to operate
♣Customized three-way hydraulic tightening device
♣The product has the characteristics of compact structure, stable performance, simple operation, high production efficiency,
strong safety, etc.
♣Saw blade break induction, automatic emergency shutdown

Company Profile

Shandong Lu Young Machinery Co., Ltd is a modern and high- tech company which is a professional manufacturer of CNC LATHE, CNC MILLING, CNC MACHINE CENTER .Sawing machine With 50000sqm workshops and offices, we have more than 20 years experiences in cnc machine research and production.Our products all pass CE Certification,and our factory pass ISO9001Quality Certification.Our machines have been exported more than 40 countries and have been well received by our customers.we welcome all customers and friends come to visitour factory! Regarding the technical force, we have the most professional research and development staff, who can meet all different requirements on.

Customer Photos

Packing & Delivery

1.Non-fumigation packaging, we use seaworthy plywood.
2. Steel base plate, it is stronger 3-5 times than normal plywood base plate.
3.Water-proof and damp proof, water resistant film wraped all the machine.
4.Fully sheathed case,prevention of collision and keep the goods intact.

Our service

1.Professional technogoly service team.we have professional technogoly service team , we supply one by one solution design for your request.
2.Training for free and oversea service.we can supply training for your in our factory for free.Oversea service also is OK.
3.7*24 hours online sales.We supply 7*24 hours online sales and after sales service for free.And we welcome customers to visit our workshop and products at any time.
4.Replacement parts for free.We supply replacement parts for free if the machine is proved defective within 12 months.

FAQ

1. What’s the term of payment ?

As usual, Our term of payment is:
30% downpayment by T/T (Telegraphic transfer ) in advance. 70% by T/T before shipment. Besides, We can also accept term of payment by irrevocable letter of credit at sight. D/P or D/A.

2. What’s the quality warranty ?

We will supply standard parts and accessories with our machines when shipment. Within one year after receiving our machines, In the right operation, If there are any damaged parts or accessories, We will replace them by air-mail or express mail immediately free of charge.

3. What’s the delivery time ?

We will supply goods to you within 1 months after getting your 30% downpayment by T/T according to the different products.

4. What’s the charge of installing and commissioning ?

For some machines, It need our technician to go to your local site and help you install and commission machines. At the same time,Our technician will train your workers. It will take 7-15 days for different machines. The return air-tickets,accommodation,food, salary ( USD100.00/day for every technician ),etc will be born by the end-user.
