Product Details
Place of Origin: CHINA
Brand Name: luyoung
Certification: CE
Model Number: vmc650
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1/SET
Price: $16000-$25000
Packaging Details: Non-fumigating wooden cases
Delivery Time: 30days
Payment Terms: T/T, D/A, D/P, Western Union, MoneyGram, L/C
Supply Ability: 10/set
Other Name: |
Cnc Milling Machine |
Table Size: |
900*400mm |
Automatic Tool Changer: |
Yes |
Product Type: |
Vertical CNC Machine |
Condition: |
New |
Z Travel: |
500mm |
Precision: |
High Precision |
Applicable Industries: |
Building Material Shops, Factory |
Design Height: |
670mm |
Spindle Taper: |
BT40 |
Spindle Speed: |
10000 RPM |
Function: |
Vertical Milling Machining |
Service: |
Overseas Service |
Other Name: |
Cnc Milling Machine |
Table Size: |
900*400mm |
Automatic Tool Changer: |
Yes |
Product Type: |
Vertical CNC Machine |
Condition: |
New |
Z Travel: |
500mm |
Precision: |
High Precision |
Applicable Industries: |
Building Material Shops, Factory |
Design Height: |
670mm |
Spindle Taper: |
BT40 |
Spindle Speed: |
10000 RPM |
Function: |
Vertical Milling Machining |
Service: |
Overseas Service |

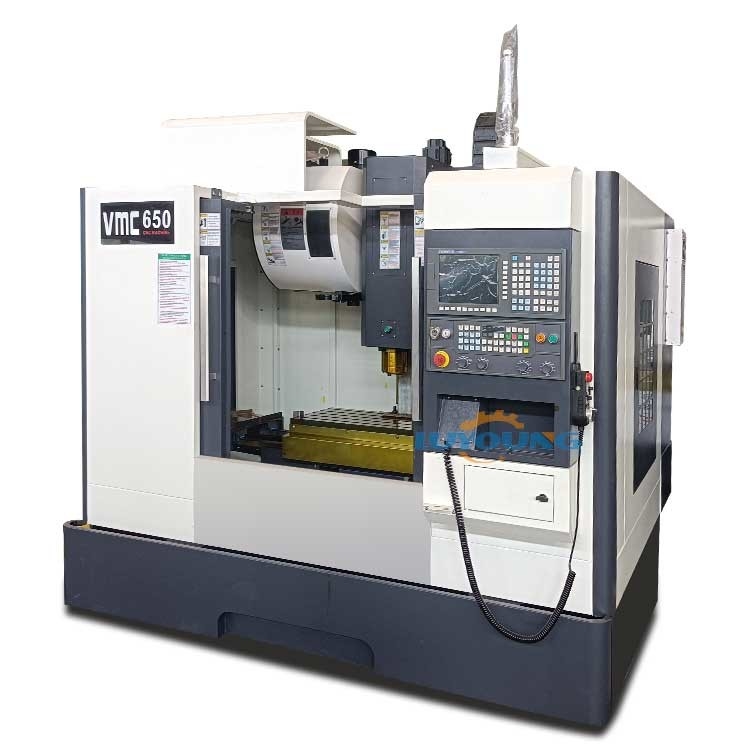

The VMC650 Vertical CNC Machine Center is a high-precision milling machine designed for industrial applications. With a spindle speed of 10000 RPM and BT40 spindle taper, this machine delivers exceptional performance for various machining operations.
| Specification | VMC650 Model |
|---|---|
| Worktable Size (L×W) | 900×400mm |
| T Slot | 3-18-160 |
| Max Loading Weight | 500kg |
| X-Axis Travel | 700mm |
| Y-Axis Travel | 450mm |
| Z-Axis Travel | 500mm |
| Spindle Nose to Table Distance | 120-670mm |
| Spindle Center to Column | 460mm |
| Spindle Taper | BT40 |
| Max Spindle Speed | 10000 RPM |
| Spindle Motor Power | 5.5/7.5kw |
| Rapid Feed Speed (X,Y,Z) | 24/24/18mm (linear guide way) |
| Positional Accuracy | ±0.01 mm |
| Repeat Positional Accuracy | ±0.005 mm |
| Tool Changer Capacity | 16 tools |
| Max Tool Length | 300mm |
| Max Tool Diameter | Φ80 (adjacent)/φ150 (non-adjacent) |
| Tool Changing Time | 7sec |
| Machine Weight | 2700KG |
