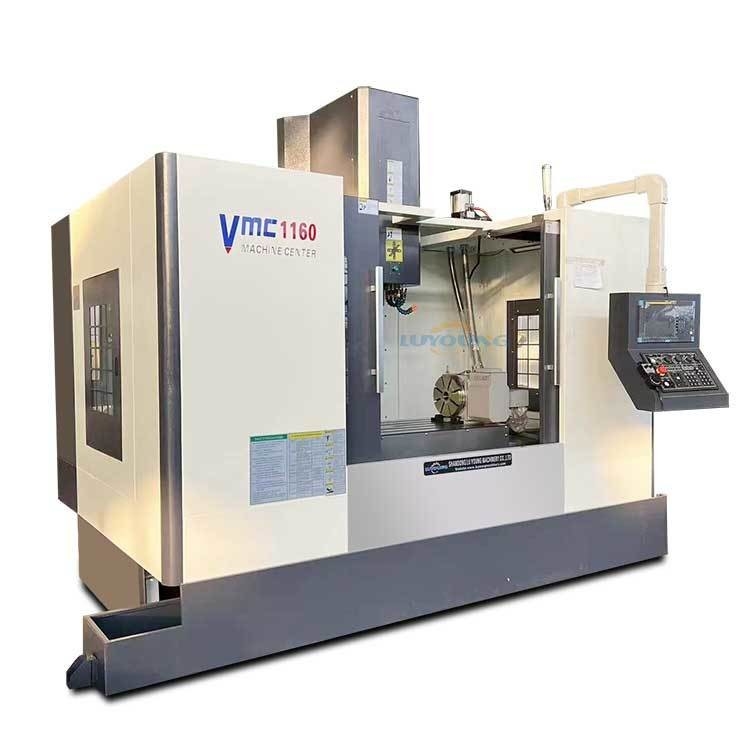

High Speed 3/4/5 Axis Vmc1160 Metal Cnc Milling Machining Center

Name: High Speed 3/4/5 Axis Vmc1160 Metal Cnc Milling Machining Center
Brand: shandong lu young machinery co.,ltd
SKU: vmc1160
Price: 30,000.00 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: Lu Young

Certification: CE,ISO

Model Number: vmc1160

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: $25000-$35000

Packaging Details: plywood box

Delivery Time: 30 days

Payment Terms: L/C, T/T

Supply Ability: 100sets per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                Metal Cnc Milling Machining Center, High Speed Cnc Milling Machining Center, 5 Axis Cnc Milling Machining Center


Worktable Size:	1200*600	3 Axis Travel:	1100600600
Spindle Taper:	BT40	Spindle Speed:	8000/10000/12000rpm
Spindle Motor:	11/15kw	Rapid Feeding Speed:	24 Liner Guide Way
Position Accuracy:	±0.005mm	Repeat Positional Accuracy:	±0.003
ATC:	24 Arm Type ATC	Max Loading:	1000kg

Worktable Size:	1200*600
3 Axis Travel:	1100600600
Spindle Taper:	BT40
Spindle Speed:	8000/10000/12000rpm
Spindle Motor:	11/15kw
Rapid Feeding Speed:	24 Liner Guide Way
Position Accuracy:	±0.005mm
Repeat Positional Accuracy:	±0.003
ATC:	24 Arm Type ATC
Max Loading:	1000kg

High Speed 3/4/5 Axis Vmc1160 Metal Cnc Milling Machining Center

High Speed 3/4/5 Axis VMC1160 Metal CNC Milling Machining Center

Key Specifications

Attribute	Value
Worktable Size	1200×600mm
3 Axis Travel	1100×600×600mm
Spindle Taper	BT40
Spindle Speed	8000/10000/12000rpm
Spindle Motor	11/15kw
Rapid Feeding Speed	24 liner guide way
Position Accuracy	±0.005mm
Repeat Positional Accuracy	±0.003mm
ATC	24 arm type ATC
Max Loading	1000kg

Product Overview

The VMC1160 CNC Vertical Machining Center combines mechanical precision with advanced numerical control for efficient machining of complex parts. As one of the world's most widely used CNC machine tools, it offers comprehensive processing capabilities that can complete multiple operations in a single setup, achieving precision 5-10 times greater than conventional equipment.

Technical Specifications

Item	VMC1160
Worktable Size (length×width)	1200×600mm
T Slot	5-18×120mm
Max Loading Weight	1000kg
X-Axis Travel	1100mm
Z-Axis Travel	600mm
Spindle Nose to Table Distance	130-780mm
Spindle Center to Column Distance	650mm
Max Spindle Speed	8000/10000/12000rpm
Spindle Motor Power	11/15kw
Rapid Feeding Speed (X,Y,Z)	24/24/24 m/min (liner guideway)
Positional Accuracy	±0.005mm
Repeat Positional Accuracy	±0.003mm
Auto Tool Changer	24 arm type
Machine Weight	7200kg

Key Features

Casting: HT300 resin sand wear-resistant castings with high density and excellent wear resistance. Double-layer saddle casting and A-shaped column structure provide superior rigidity.
Spindle: Standard high-speed BT40 belt-driven Taiwan spindle (8000RPM) with optional 10000/12000/15000 rpm configurations for low noise, high precision operation.
Screw: Hardened guide way standard (Taiwan Hiwin linear guide optional) with imported JIS-C3 grinding grade pre-stretched nut screw for precision operation.
Controller System: Multiple options including GSK, KND, SIEMENS, SYNTEC, and FANUC.
Auto Tool Change: Taiwan OKDAD 24 arm type automatic tool changer.

Optional Configurations

4th and 5th Axis Options

Horizontal & vertical CNC rotary tables available as optional configurations for specialized jobs, improving processing efficiency and reducing workflow.

Probe Measuring Systems

Optional workpiece and tool measuring systems from METROL, RENISHAW or PIONEER.

Chip Conveyor System

Optional chip conveyor for efficient collection and transfer of metal/non-metal scraps, compatible with coolant recycling systems.
