Product Details
Place of Origin: China
Brand Name: Luyoung
Certification: CE
Model Number: VMC1270
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: 2999-38000
Packaging Details: Fumigation-free plywood
Delivery Time: 45 working days
Payment Terms: T/T
Supply Ability: 100sets
Tool Changing Time: |
6s |
Table Size: |
1200*700 |
Cnc Or Not: |
CNC Vertical Machine Center |
Atc: |
24 Atc |
Application: |
Metal Processing |
Key Selling Points: |
Automatic |
Axis: |
5th Axis |
Spindle Speed: |
10,000 RPM |
Tool Magazine Capacity: |
24 |
Marketing Type: |
Hot Product 2025 |
Condition: |
New |
Weight: |
8500kg |
Cnc Or Not: |
CNC |
After-sales Service Provided: |
Online Support |
Voltage: |
220V/380V,380V |
Tool Changing Time: |
6s |
Table Size: |
1200*700 |
Cnc Or Not: |
CNC Vertical Machine Center |
Atc: |
24 Atc |
Application: |
Metal Processing |
Key Selling Points: |
Automatic |
Axis: |
5th Axis |
Spindle Speed: |
10,000 RPM |
Tool Magazine Capacity: |
24 |
Marketing Type: |
Hot Product 2025 |
Condition: |
New |
Weight: |
8500kg |
Cnc Or Not: |
CNC |
After-sales Service Provided: |
Online Support |
Voltage: |
220V/380V,380V |
| Item | VMC1270 |
| Size of worktable(length×width)mm | 1300×700 |
| T slot (mm) | 7-18×100 |
| Max loading weight on worktable(KG) | 900 |
| X-Axis travel(mm) | 1200 |
| Y-Axis travel(mm) | 700 |
| Z-Axis travel(mm) | 700 |
| Distance between spindle nose and table(mm) | 120-720 |
| Distance between spindle center and column (mm) | 835 |
| Spindle taper | BT40 |
| Max. spindle speed( rpm) | 8000/10000/12000 |
| Spindle motor power(Kw) | 11-15 |
| Rapid feeding speed: X,Y,Z axis (m/min) | 24/24/24 liner guideway |
| Fast cutting speed (m /min) | 10 |
| Positional accuracy (mm) | ±0.005 |
| Repeat positional accuracy (mm) | ±0.003 |
| Auto Tool changer type | 24 arm type auto tool change |
| X/Y/Z linear guide way: |
φ4012 |
| Postion Accuracy | +_0.005 |
| Max.tool weight(KG) | 7500 |
| Tool changing time(tool-to-tool)sec | 2.5 |
| Air pressure(Mpa) | 0.6 |
| Machine weight(KG) | 7500 |
| Overall size(mm) | 3340*2800*2700 |
| Voltage | 380v 3 phase |

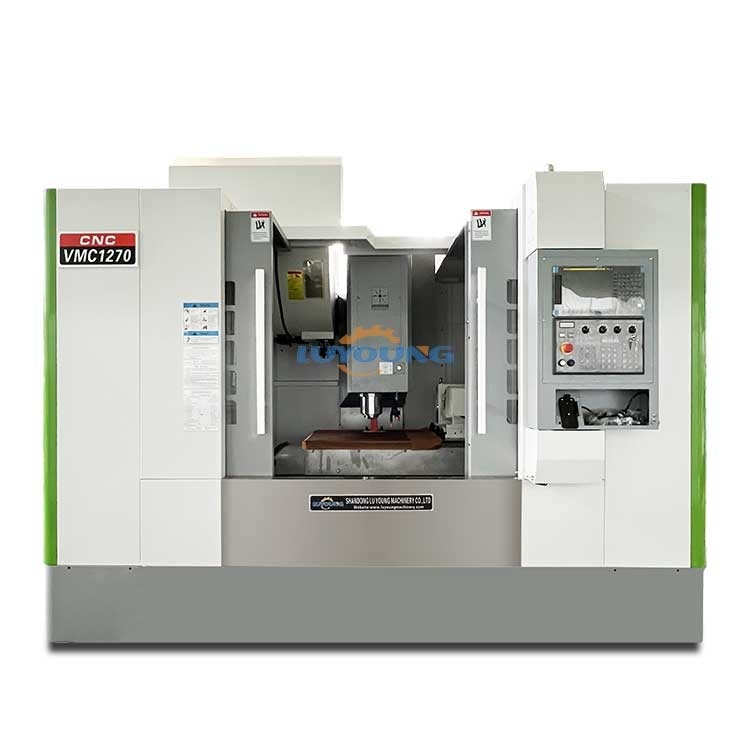

In the design of the VMC1270, we selected high-quality imported linear guides and ball screws to provide high motion accuracy and smoothness. We are also equipped with an automatic lubrication device to ensure the smooth operation of the machine tool during long-term operation.
The VMC1270 CNC machining center can be guaranteed in terms of rigidity, stroke and precision. We will continue to adhere to the principle of "quality first, customer first", and provide you with excellent products and services.
This is a numerical control system with stable performance and powerful functions. The VMC1270 also features outstanding rigidity and is capable of maintaining high precision in various complex processing environments. Among them, the workbench can bear a load of up to 1000kg, capable of meeting the processing requirements of large workpieces.
The VMC1270 also has an excellent spindle speed control capability. Its spindle speed can reach 8,000 revolutions per minute, providing you with a wider range of processing capabilities. In addition, we have also adopted high-precision spindle bearings to ensure stability and precision during the processing.
