Product Details
Place of Origin: China
Brand Name: Luyoung
Certification: CE

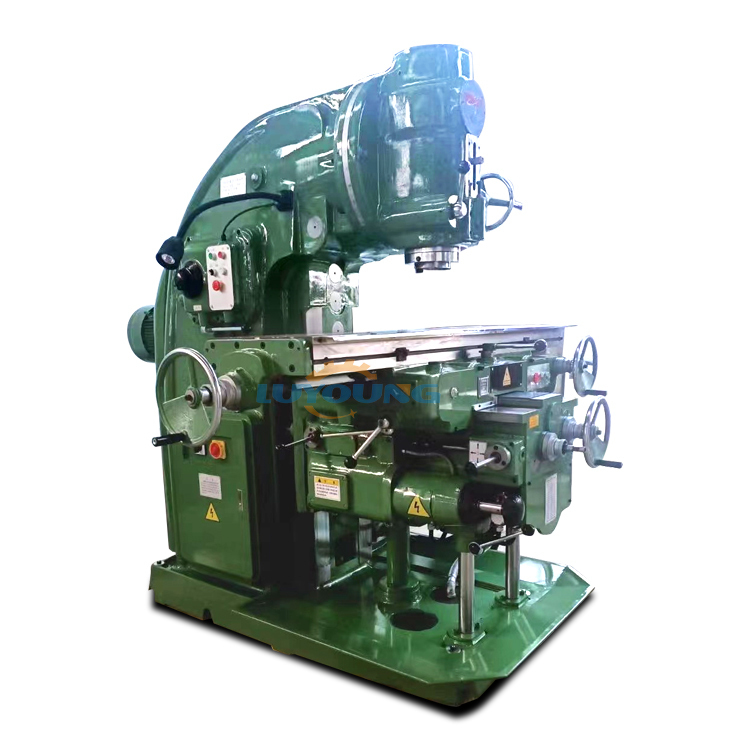

Model Number: X5040
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD$8000-USD18000
Packaging Details: non-fumigation wooden box
Delivery Time: 45 working days
Payment Terms: L/C, T/T
Supply Ability: 30/SET
Size Of Worktable（ Mm）: |
1700x400 |
Swivelangleof Vertical Millinghead: |
45degree |
Longitudinal Worktabletravel(mm) (manual/auto): |
9200/880 |
Mainmotor Power(KW): |
11KW |
Size Of Worktable（ Mm）: |
1700x400 |
Swivelangleof Vertical Millinghead: |
45degree |
Longitudinal Worktabletravel(mm) (manual/auto): |
9200/880 |
Mainmotor Power(KW): |
11KW |
| Item | Specification |
|---|---|
| Size of worktable (mm) | 1700×400 |
| Swivel angle of vertical milling head | ±45° |
| Longitudinal worktable travel (mm) (manual/auto) | 900/880 |
| Horizontal worktable travel (mm) (manual/auto) | 315/300 |
| Vertical worktable travel (mm) (manual/auto) | 385/365 |
| Rapid speed of table (X/Y/Z) (mm/min) | X2300 Y2300 Z770 |
| Spindle speed step | 18 |
| Spindle taper | 7:24 ISO50 |
| Spindle speed range (r/min) | 30-1500 |
| Feed range of table travel | 18 Level |
| Distance between spindle center to vertical guide rail (mm) | 400 |
| Distance between spindle nose and table (mm) | 30-500 |
| Main motor power (KW) | 11kw |
| Feed motor power (KW) | 3kw |
| Motor power of cooling pump (KW) | 0.09kw |
| Overall dimension (L×W×H) (mm) | 2556×2159×2298 |
| Packaging size (L×W×H) (mm) | 2650×2250×2480 |
| Net weight (kg) | 4250 |
| Gross weight (kg) | 4600 |
Thanks to its high rigidity and torque, the X5040 excels in heavy-duty cutting operations. It handles large cutting depths and high feed rates when milling planes and grooves, making it exceptionally robust.
When equipped with various milling cutters (end mills, face mills, keyway cutters, drills, etc.), it performs multiple machining operations:
With accessories like dividing heads or rotary tables, it machines complex parts including spiral grooves and gears.
The simple mechanical structure and traditional relay control electrical system make operation straightforward. Maintenance personnel can easily diagnose and repair any faults.
As a universal machine tool, its acquisition cost is significantly lower than CNC milling machines, offering exceptional value for applications not requiring complex contour machining.
