Product Details
Place of Origin: China
Brand Name: Luyoung
Certification: CE
Model Number: X6436
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD6000-8000
Packaging Details: non-fumigation wooden box
Delivery Time: 45 working days
Payment Terms: L/C, T/T
Supply Ability: 30/SET
Workbench Size:: |
1500x360mm |
Power Of Main Drive Motor: |
4(V) 5.5（H）kw |
Spindle Taper Hole: |
7：24 ISO40 （V）tso050(H） |
Workbench Size:: |
1500x360mm |
Power Of Main Drive Motor: |
4(V) 5.5（H）kw |
Spindle Taper Hole: |
7：24 ISO40 （V）tso050(H） |
| Workbench size | 1500x360mm |
|---|---|
| Power of main drive motor | 4(V) 5.5(H) kW |
| Spindle taper hole | 7:24 ISO40 (V) tso050(H) |

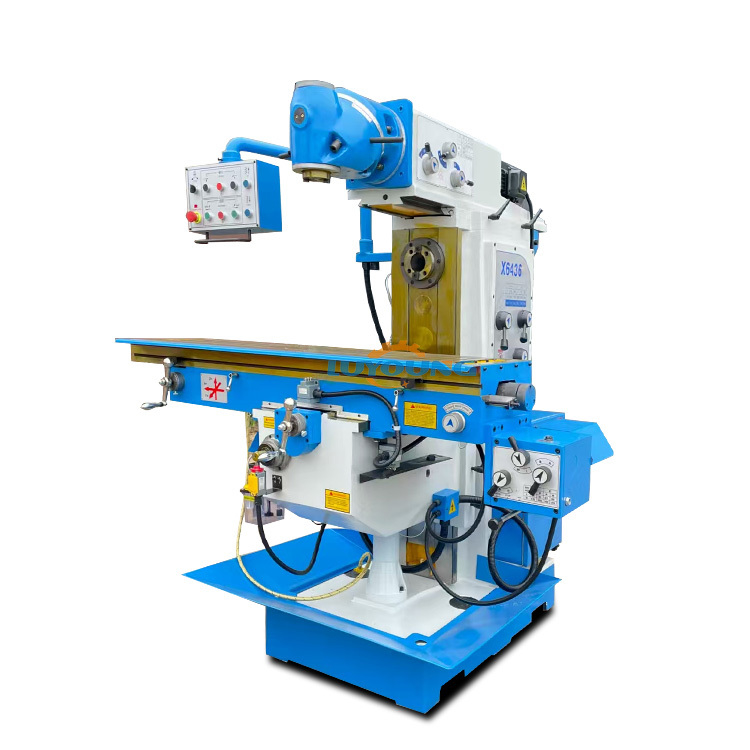

| Parameter | X6436 Universal Rotary Milling Machine |
|---|---|
| Taper of spindle taper hole | 7:24 ISO40 (V)tso050(H) |
| Distance from vertical spindle hole center to column surface | 350-850mm |
| Distance from end face of vertical spindle to worktable | 210-710mm |
| Distance from horizontal spindle center to workbench | 0-500mm |
| Distance from horizontal spindle center to lower plane of RAM | 175mm |
| Distance from vertical spindle hole center to column surface | (11 steps)35-1600mm (12 steps)60-1800(H)mm |
| Workbench size | 1500×360mm |
| Table travel (longitudinal / transverse / vertical) | 1000/350/500mm |
| Longitudinal / transverse motorized feed speed of workbench | 15-370(8 steps)810(Fast forward)mm |
| Vertical motorized lifting speed of workbench | 590mm/min |
| Number / width / spacing of T-shaped slots on the workbench | 3/18/80mm |
| Power of main drive motor | 4(V) 5.5(H)kw |
| Power of table motor feed motor | 750w |
| Lifting table lifting feed motor power | 1100w |
| Cooling pump motor power | 90w |
| Cooling pump flow | 25L/MIN |
| Overall dimension | 2600kg |
| Machine weight | 2220×1790×1980mm |
