Product Details
Place of Origin: CHINA
Brand Name: Luyoung
Certification: CE
Model Number: TCK56
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $24000/SET
Packaging Details: Fumigation-free packaging
Delivery Time: 30DAYS
Payment Terms: T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability: 10/SET
Tool Turret: |
8 Station |
Coolant System: |
Included |
Rapid Traverse Rate: |
12m/min |
Chuck Size: |
8 Inch |
Max Turning Length: |
500mm |
Spindle Speed: |
3000rpm |
Model: |
TCK56 |
Power Supply: |
380V/50Hz |
X/Z Axis Travel: |
250mm/500mm |
Max Swing Diameter: |
500mm |
Max Turning Diameter: |
300mm |
Spindle Motor Power: |
7.5kW |
Control System: |
CNC |
Type: |
Slant Bed |
Tool Turret: |
8 Station |
Coolant System: |
Included |
Rapid Traverse Rate: |
12m/min |
Chuck Size: |
8 Inch |
Max Turning Length: |
500mm |
Spindle Speed: |
3000rpm |
Model: |
TCK56 |
Power Supply: |
380V/50Hz |
X/Z Axis Travel: |
250mm/500mm |
Max Swing Diameter: |
500mm |
Max Turning Diameter: |
300mm |
Spindle Motor Power: |
7.5kW |
Control System: |
CNC |
Type: |
Slant Bed |

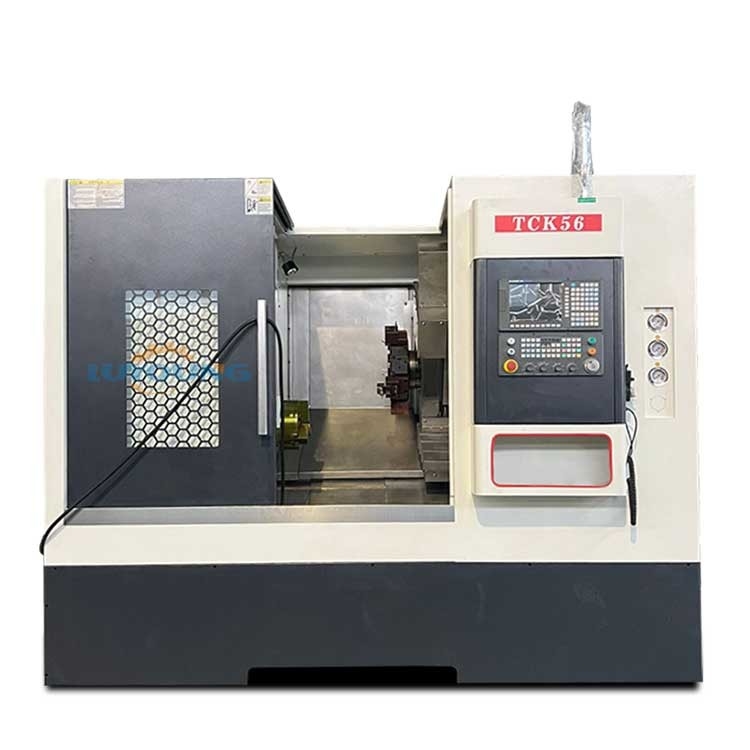

tck56 metal turning machine Machine Tool Slant Bed CNC Metal Turning Lathe Machine milling head
| position | project | FCK56 |
| Processing scope | Maximum rotation diameter on the bed (mm) | Φ650 |
| Maximum cutting diameter (mm) | Φ540 | |
| Maximum cutting length (mm) | 580 (Power turret 540) | |
|
Journey and feed |
X-axis travel (mm) | two hundred and eighty |
| Z-axis travel (mm) | seven hundred | |
| X-axis movement speed (mm/min) | twenty-four thousand | |
| Z-axis movement speed (mm/min) | twenty-four thousand | |
| Handwheel (mm) | 0.001/0.01/0.1 | |
| X. Z feed rate (mm/min) | 0~5000 | |
| X. Z manual feed rate (mm/min) | 0~1260 | |
| Position accuracy | X-axis repeated positioning accuracy (mm) | zero point zero zero five |
| X-axis positioning accuracy (mm) | zero point zero one | |
| Z-axis repeated positioning accuracy (mm) | zero point zero zero six | |
| Z-axis positioning accuracy (mm) | zero point zero one five | |
| principal axis | Spindle speed (rpm) | 10-3000 (maximum 3500 for 8-inch hydraulic chuck) |
| Maximum spindle torque (N.m) | seventy-two | |
| Spindle nose end | A2-6 | |
| Main spindle through-hole diameter (mm) | Φ66 | |
| Hollow oil pressure chuck through-hole diameter (mm) | Φ52 | |
| Chuck | 8 "(optional 10") | |
|
Knife tower |
Number of tool holders | 12 workstations |
| Tool change time (s) | zero point two five | |
| Tool installation size (mm) | 25×25 | |
| Installation diameter of boring tool holder (mm) | Φ32 | |
| Tailstock | Tail seat stroke (mm) | four hundred and eighty |
| Top taper | MT-5# | |
| Main motor | Main motor power (kW) | 11(4500rpm) |
| Main motor torque (N.m) | seventy-two | |
|
X. Z-axis feed motor |
X-axis feed motor power (kw) | two point three |
| Torque of X-axis feed motor (N.m) | fifteen | |
| Z-axis feed motor power (kW) | two point three | |
| Z-axis feed motor torque (N.m) | fifteen | |
| Cooling system | Cooling liquid capacity (L) | two hundred |
| Motor type (1HP) (kW) | zero point one eight | |
| size | Installation (length * width * height) (mm) | 3400/2060/2100 |
| weight | Mechanical weight (kg) | four thousand and two hundred |
Main Configuration List
|
Number |
name |
manufacturer |
Optional configuration |
|
one |
Guangshu 980TB3i |
Guangzhou Guangshu |
FANUC |
|
two |
Servo main motor and X/Z-axis servo motor |
Guangzhou Guangshu |
FANUC |
|
three |
Hydraulic chuck and oil cylinder |
Zhejiang Dingchang |
Jiangsu Province |
|
four |
Spindle unit |
HRB bearings |
NSK |
|
five |
X/Z-axis drive bearing |
HRB bearings |
NSK, Taiwan |
|
six |
Ball screw |
Taiwan Shangyin |
|
|
seven |
Roller rail |
Taiwan Shangyin |
|
|
eight |
12 station servo hydraulic tool holder |
Taiwan Taixin (Taiwan Lianji) |
|
|
nine |
Main electrical components |
Delixi |
|
|
ten |
coupling |
domestic |
Japan |
|
eleven |
Spindle encoder |
domestic |
|
|
twelve |
Hydraulic pump and motor |
domestic |
|
|
thirteen |
Lubricating parts |
domestic |
Japan |
1. The FCK56 series multifunctional CNC lathe adopts a box shaped structure and high-strength cast iron (HT-300) for the bed body. It is cast using integrated casting technology and processed in one clamping process using a high-precision machining center. Therefore, it has the characteristics of strong overall rigidity, good accuracy retention of machine tools, and high reliability in use.
2. The bed adopts a high rigidity 30 ° slanted back overall bed, which is convenient for debris removal and is equipped with a separation sink to completely prevent leakage and easy maintenance.
