Product Details
Place of Origin: China
Brand Name: Luyoung
Certification: CE

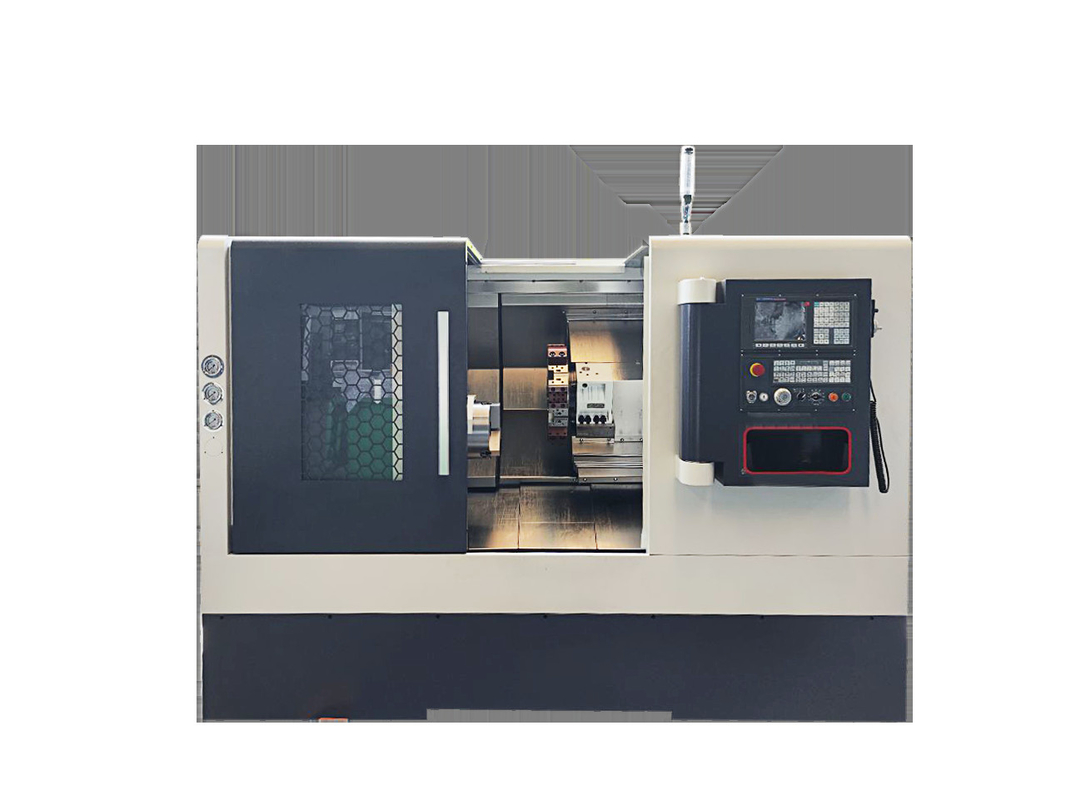

Model Number: TCK50
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD16000-25000
Packaging Details: Fumigation-free plywood
Delivery Time: 45 working days
Payment Terms: L/C, T/T
Supply Ability: 100sets
Max Swing Over Bed Dia.（mm）: |
550 |
Max Cutting Dia.（mm）: |
440 |
Max Cutting Length(mm): |
450 |
Spindle Nose: |
A2-6 |
Spindle Bore: |
66 |
Hollow Oil Chuck Through Hole Dia.(mm）: |
50 |
Chuck: |
8inch |
No.of Tool Holder: |
12 Station Servo Turret |
L*W*H（mm）: |
2697*1795*1860 |
Machine Weight（kg）: |
3600kg |
Max Swing Over Bed Dia.（mm）: |
550 |
Max Cutting Dia.（mm）: |
440 |
Max Cutting Length(mm): |
450 |
Spindle Nose: |
A2-6 |
Spindle Bore: |
66 |
Hollow Oil Chuck Through Hole Dia.(mm）: |
50 |
Chuck: |
8inch |
No.of Tool Holder: |
12 Station Servo Turret |
L*W*H（mm）: |
2697*1795*1860 |
Machine Weight（kg）: |
3600kg |
| Attribute | Value |
|---|---|
| Max swing over bed Dia. (mm) | 550 |
| Max cutting Dia. (mm) | 440 |
| Max cutting length (mm) | 450 |
| Spindle nose | A2-6 |
| Spindle bore | 66 |
| Hollow oil chuck through hole Dia. (mm) | 50 |
| Chuck | 8inch |
| No. of tool holder | 12 station servo turret |
| L*W*H (mm) | 2697*1795*1860 |
| Machine weight (kg) | 3600kg |
| Item | Parameter | TCK50 |
|---|---|---|
| Processing range | Max swing over bed Dia. (mm) | Φ550 |
| Max cutting Dia. (mm) | Φ440 | |
| Max cutting length (mm) | Φ450 | |
| The distance between two centers (mm) | 500 | |
| Travel and feed | X axis travel (mm) | 250 |
| Z axis travel (mm) | 500 | |
| X axis movement speed (mm/min) | 24000 | |
| Z axis movement speed (mm/min) | 24000 | |
| Hand wheel (mm) | 0.001/0.01/0.1 | |
| X,Z axis feed speed (mm/min) | 0~5000 | |
| X,Z axis manual feed speed (mm/min) | 0~1260 | |
| Positional accuracy | X axis repeated positioning accuracy (mm) | 0.005 |
| X-axis positioning accuracy (mm) | 0.01 | |
| Z axis repeated positioning accuracy (mm) | 0.006 | |
| Z-axis positioning accuracy (mm) | 0.015 | |
| Spindle | Spindle speed (rpm) | 35-3000 |
| Max. spindle torque (N.m) | 48 | |
| Spindle nose | A2-6 | |
| Spindle bore Dia (mm) | Φ66 | |
| Hollow oil chuck through hole Dia. (mm) | Φ50 | |
| Chuck | 10"(12 optional) | |
| Turret | No. of tool holder | 12 station |
| Tool change time (s) | 0.25 | |
| Tools size (mm) | 25×25 | |
| Boring tool size (mm) | Φ32 | |
| Tail stock | Tailstock travel (mm) | 480 |
| taper of center | MT-5# | |
| Main motor | Main motor (kw) | 7.5(4500rpm) |
| Main motor torque (N.m) | 48 | |
| Feed motor | X axis feed motor power (kw) | 2.3 |
| X-axis feeds motor torque (N.m) | 15 | |
| Z axis feed motor power (kw) | 2.3 | |
| Z-axis feeds motor torque (N.m) | 15 | |
| cooling system | Coolant capacity (L) | 200 |
| motor type (1HP) (kw) | 0.18 | |
| Dimensions | L*W*H (mm) | 2697*1795*1860 |
| weight | Machine weight (kg) | 3600 |
The 45-degree inclined bed enhances cutting fluid flow, effectively removes chips, reduces heat buildup, and improves workpiece accuracy.
The slanted design increases machine stability, with gravity aiding spindle housing adherence to guide rails during cutting, enhancing rigidity and vibration resistance.
Superior chip evacuation protects guide ways and worktable from wear, maintaining long-term machining precision.
Advanced CNC system enables complex part machining including drilling, tapping, milling, and turning operations.
Rapid tool changes (0.25s) and continuous machining capability significantly boost productivity.
Tilted design provides better workpiece visibility and access, improving operational efficiency.
