Product Details
Place of Origin: China
Brand Name: Luyoung
Certification: CE

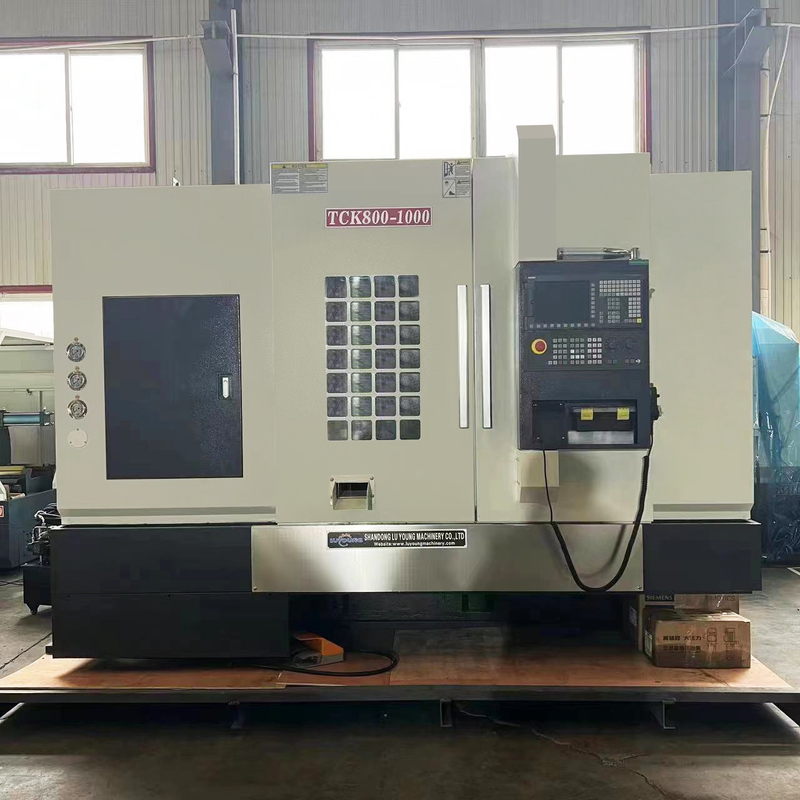

Model Number: TCK800
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD41000-USD68000
Packaging Details: Fumigation-free plywood
Delivery Time: 45 working days
Payment Terms: L/C, T/T
Supply Ability: 100sets
Max. Swing Diameter Over Bed（mm）: |
Φ800 |
Max. Cutting Diameter（mm）: |
460 |
Max.cutting Length（mm）: |
Φ630 |
X Axis Travel（mm）: |
380 |
Y Axis Travel（mm）: |
+-50 |
X/Z Axis Movement Speed(mm/min): |
24000 |
Z Axis Travel（mm）: |
1500 |
L×W×H（mm): |
3650×1870×2100 |
Machine Weight (kg): |
5700 |
Max. Swing Diameter Over Bed（mm）: |
Φ800 |
Max. Cutting Diameter（mm）: |
460 |
Max.cutting Length（mm）: |
Φ630 |
X Axis Travel（mm）: |
380 |
Y Axis Travel（mm）: |
+-50 |
X/Z Axis Movement Speed(mm/min): |
24000 |
Z Axis Travel（mm）: |
1500 |
L×W×H（mm): |
3650×1870×2100 |
Machine Weight (kg): |
5700 |
| Working Range | Value |
|---|---|
| Max. swing diameter over bed (mm) | Φ800 |
| Max. cutting diameter (mm) | φ460 |
| Max. cutting length (mm) | Φ630 |
| X axis travel (mm) | 380 |
| Y axis travel (mm) | ±50 |
| Z axis travel (mm) | 1500 |
| X/Z axis movement speed (mm/min) | 24000 |
| Spindle Specifications | Value |
|---|---|
| Max spindle speed (rpm) | 35-3000 |
| Max. spindle torque (N.m) | 72 |
| Spindle taper | A2-8 |
| Spindle bore (mm) | Φ87 |
| Bar through-hole (mm) | Φ75 |
| Hydraulic chuck | 10" (Optional 2") |
| Main motor power (kW) | 18 (1500rpm) |
| Dimensions & Other | Value |
|---|---|
| L×W×H (mm) | 3650×1870×2100 |
| Machine weight (kg) | 5700 |
| Turret type | Driven turret |
| Number of tool holders | 12 |
| Tool change time (s) | 0.25 |
| Coolant capacity (L) | 200 |
| Tail stock travel (mm) | 1130 |
