Product Details
Place of Origin: China
Brand Name: Luyoung
Certification: CE
Model Number: ck6150
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: 7500-20000
Packaging Details: Fumigation-free plywood box
Delivery Time: 30 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100sets
Max. Swing Dia. Over Bed: |
500mm |
Max. Swing Dia. Over Cross Slide: |
280mm |
Width Of The Bed: |
400mm |
Spindle Bore: |
82mm |
Speed: |
15-1500rpm |
Chuck: |
6/8/10 |
Tool Holder: |
4 |
Main Motor Power: |
7.5KW |
X/Z Axis Position Accuracy: |
0.02/0.025mm |
X/Z Axis Repeatability: |
0.01/0.012mm |
Tailstock Sleeve Travel: |
150mm |
Max. Swing Dia. Over Bed: |
500mm |
Max. Swing Dia. Over Cross Slide: |
280mm |
Width Of The Bed: |
400mm |
Spindle Bore: |
82mm |
Speed: |
15-1500rpm |
Chuck: |
6/8/10 |
Tool Holder: |
4 |
Main Motor Power: |
7.5KW |
X/Z Axis Position Accuracy: |
0.02/0.025mm |
X/Z Axis Repeatability: |
0.01/0.012mm |
Tailstock Sleeve Travel: |
150mm |

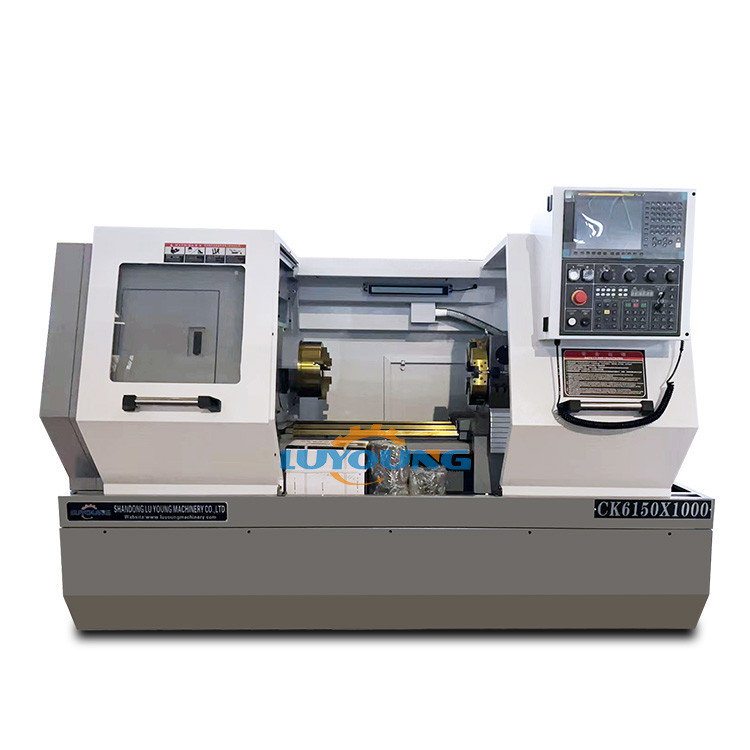

7.5KW Cnc Automatic Lathe Machine CK6150 750 1000 1500mm Flat Bed Lathes
This machine tool is suitable for processing various small and medium-sized shaft and disc parts, and can turn various threads, arcs, cones and internal and external surfaces of rotating parts. It is widely used in plumbing equipment, valves, electrical appliances, instruments, automobiles, motorcycles, bearings and other industries.
CNC lathe is one of the most widely used CNC machine tools. It is mainly used for cutting and processing of internal and external cylindrical surfaces of shaft parts or disc parts, internal and external conical surfaces of arbitrary cone angles, complex rotating internal and external curved surfaces, and cylindrical and conical threads, and can perform grooving, drilling, reaming, reaming and boring, etc.
Specifications:
| Item | CK6150A |
| Max. swing dia. over bed | 500mm |
| Max. swing dia. over cross slide | 280mm |
| Processing length | 750mm/1000mm/1500mm |
| Width of the bed | 400mm |
| Dia. of spindle | 82mm |
| Spindle taper | 1:20/90 |
| spindle nose | Type of spindle head D-8 |
| Spindle speed | 15-1500rpm |
| Spindle speed step | step-less |
| chuck size | 250mm |
| Tool holder | 4 station |
| Tool bar section | 25X25mm |
| Main motor power | 7.5KW |
| X/Z axis position accuracy | 0.02/0.025mm |
| X/Z axis repeatability | 0.01/0.012mm |
| X/Z axis travel | 360/750mm/1000mm/1500mm |
| X/Z axis fast feeding speed | 8/10 M/MIN |
| Tailstock sleeve travel | 150mm |
| Tailstock taper | MT5 |
| Dimension | 2410/2660/3160*1560*1730mm |
| weight | 2800/3200/3500kg |
Characteristics
1. Horizontal flat bed integral casting structure;
2. The diameter of the main shaft is increased (100mm in the middle);
3. Ultrasonic frequency quenching of the bed guide rails;
4. The joint surface of the saddle and the slide rail is treated with "plastic coating".
5. The feed system adopts servo drive.
6. Precision ball screw, high-rigidity precision composite bearing structure;
7. The ball screw pair and the mating surface of the guide rail adopt automatic forced lubrication.
8. The tool rest is available in various options such as vertical four-position, vertical six-position, and horizontal six-position.
9. Configure manual, pneumatic or hydraulic chucks or manual, pneumatic or hydraulic tailstock as required.
10. The control system options include Guangzhou CNC, Beijing KND, Guangtai CNC, Siemens, FANUC, etc.
