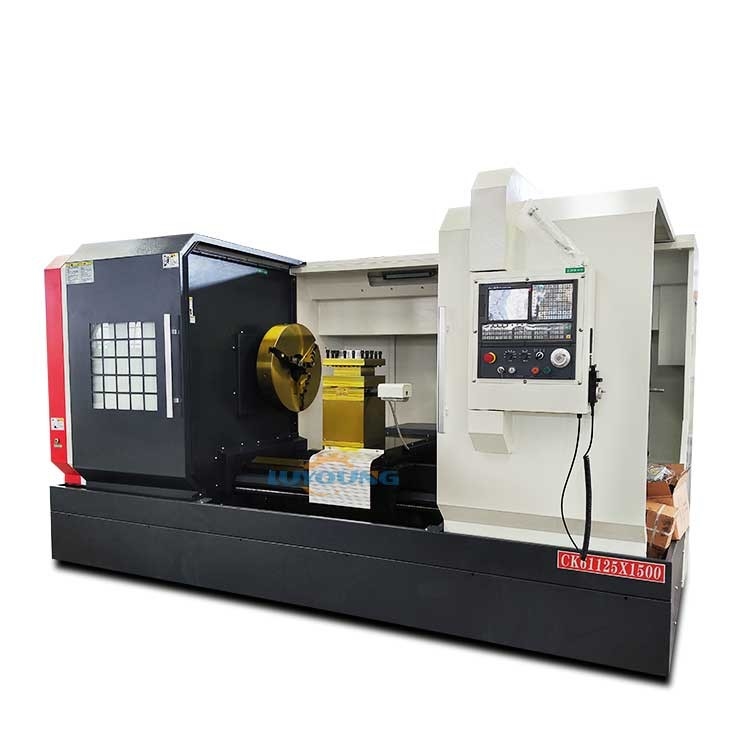

Heavy Duty CNC Lathe Machine CK6112 Flat Bed Lathe Machine OEM ODM

Name: Heavy Duty CNC Lathe Machine CK6112 Flat Bed Lathe Machine OEM ODM
Brand: shandong lu young machinery co.,ltd
SKU: CK6180
Price: 65,000.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Luyoung

Certification: CE

Model Number: CK6180

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: USD50000-USD80000

Packaging Details: Fumigation-free plywood

Delivery Time: 45 working days

Payment Terms: L/C, T/T

Supply Ability: 100sets

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                cnc heavy duty lathe, CK6112 flat bed lathe machine, Heavy duty CNC lathe machine CK6112


Service:	OEM / ODM	Tailstock Sleeve Taper:	MT6#
Centers Distance:	1000mm	Machining Accuracy:	T6-IT7
Max Swing Diameter:	1000mm	Coolant System:	Yes
Spindle Bore:	130mm	Max. Swing Over Bed:	Φ1250mm
Max. Swing Dia. Over Cross Slide:	970	Max.processing Length(mm):	1500/2000/3000
Range Of Spindle Speed(r/min):	6-500	Lengthwidthheight:	3700 ×1920×1990
Net Weight (Kg):	6500

Service:	OEM / ODM
Tailstock Sleeve Taper:	MT6#
Centers Distance:	1000mm
Machining Accuracy:	T6-IT7
Max Swing Diameter:	1000mm
Coolant System:	Yes
Spindle Bore:	130mm
Max. Swing Over Bed:	Φ1250mm
Max. Swing Dia. Over Cross Slide:	970
Max.processing Length(mm):	1500/2000/3000
Range Of Spindle Speed(r/min):	6-500
Lengthwidthheight:	3700 ×1920×1990
Net Weight (Kg):	6500

Heavy Duty CNC Lathe Machine CK6112 Flat Bed Lathe Machine OEM ODM

Product Specifications

Attribute	Value
Service	OEM / ODM
Tailstock Sleeve Taper	MT6#
Centers Distance	1000mm
Machining Accuracy	T6-IT7
Max Swing Diameter	1000mm
Coolant System	Yes
Spindle Bore	130mm
Max. swing over bed	Φ1250mm
Max. swing dia. over cross slide	970
Max.processing length(mm)	1500/2000/3000
Range of spindle speed(r/min)	6-500
Lengthwidthheight	3700 ×1920×1990
Net weight (Kg)	6500

Technical Specifications Comparison

Item	CK6163	CK6180	CK61100	CK61125
Max. swing over bed (mm)	φ 630	Φ800	Φ1100	Φ1250
Max. swing dia. over cross slide(mm)	φ 350	Φ500	Φ820	Φ970
Max.processing length(mm)	1000/1500/2000/2500	1000/1500/2000/2500	1500/2000/3000	1500/2000/3000
Range of spindle speed(r/min)	25-850 rpm	25-850 rpm	6-500 rpm	6-500 rpm
Diameter of spindle bore (mm)	φ 105	φ105	φ130	φ130
Fast moving feed speed (mm/min)	X:4000 Z:5000	X:4000 Z:5000	X:4000 Z:5000	X:4000 Z:5000
Resetting accuracy(mm)	X:0.012 Z:0.016	X:0.012 Z:0.016	X:0.012 Z:0.016	X:0.012 Z:0.016
Processing accuracy(mm)	IT6-IT7	IT6-IT7	IT6-IT7	IT6-IT7

Key Features

Superior Machinability: Flat bed design ensures precise machining of bed rails for enhanced accuracy and stability.
Precision Capability: Horizontal bed with horizontal tool carrier improves tool movement accuracy for both small and large CNC lathes.
Optimized Structure: Slanted slide layout with inclined rail guards maximizes machine width efficiency and chip evacuation.
Space Efficient: Compact footprint with sleek design allows for easy enclosure installation and operation visibility.
Automation Ready: Layout facilitates robotic arm integration for single-machine automation in confined spaces.
Enhanced Stiffness: High-strength gray cast iron construction with adjustable preload roller guideways ensures rigidity.
Customizable Solutions: Adaptable design meets diverse machining requirements through tailored configurations.
Efficient Chip Management: Enclosed bed design with front panels improves chip control and coolant flow.
High Performance: High-precision ball screws and rack-and-pinion drive systems ensure excellent dynamic performance.
Low Maintenance: Rational structural design with grease lubrication reduces energy consumption and environmental impact.
Cost Effective: Simple flat bed structure offers production efficiency and competitive pricing.
