Product Details
Place of Origin: Shandong, China
Brand Name: lu young
Document: Product Brochure PDF
Payment & Shipping Terms
Price: $22,500.00/sets >=1 sets
Condition: |
New |
Spindle Taper: |
BT40 |
No. Of Spindles: |
Single |
Type: |
VERTICAL |
Dimension(L*W*H): |
2780*2450*2700mm |
Weight (T): |
5 |
Table Size (mm): |
1000*500 |
Table Travel (X) (mm): |
800 |
Table Travel (Y) (mm): |
500 |
Table Travel (Z) (mm): |
500 |
Positioning Accuracy (mm): |
0.006 |
Repeatability (X/Y/Z) (mm): |
0.003 |
Range Of Spindle Speed(r.p.m): |
50 - 10000 R.p.m |
Max. Table Load(kg): |
400 Kg |
Min. Time Of Tool Change(s): |
6 |
Tool Magazine Capacity: |
16, 20, 24 |
Key Selling Points: |
Automatic |
Warranty: |
1 Year |
Voltage: |
220V/380V |
Marketing Type: |
New Product 2020 |
Machinery Test Report: |
Provided |
Video Outgoing-inspection: |
Provided |
Warranty Of Core Components: |
1 Year |
Machining Capacity: |
Medium Duty |
Rapid Feed Speed(mm/min): |
0 - 5 Mm/min |
After-sales Service Provided: |
Engineers Available To Service Machinery Overseas |
Machine Type: |
Vertical Machine Centers |
Product Name: |
4-axis Vertical Cnc Machining Center |
Controlling Mode: |
Cnc System |
Product Type: |
VMC 850 Machining Center |
Processing: |
Maching Center |
Spindle Speed: |
8000 Rpm |
Application: |
Metal Machining |
Control System: |
SIEMENS GSK FANUC (optional) |
After Warranty Service: |
Online Support |
Condition: |
New |
Spindle Taper: |
BT40 |
No. Of Spindles: |
Single |
Type: |
VERTICAL |
Dimension(L*W*H): |
2780*2450*2700mm |
Weight (T): |
5 |
Table Size (mm): |
1000*500 |
Table Travel (X) (mm): |
800 |
Table Travel (Y) (mm): |
500 |
Table Travel (Z) (mm): |
500 |
Positioning Accuracy (mm): |
0.006 |
Repeatability (X/Y/Z) (mm): |
0.003 |
Range Of Spindle Speed(r.p.m): |
50 - 10000 R.p.m |
Max. Table Load(kg): |
400 Kg |
Min. Time Of Tool Change(s): |
6 |
Tool Magazine Capacity: |
16, 20, 24 |
Key Selling Points: |
Automatic |
Warranty: |
1 Year |
Voltage: |
220V/380V |
Marketing Type: |
New Product 2020 |
Machinery Test Report: |
Provided |
Video Outgoing-inspection: |
Provided |
Warranty Of Core Components: |
1 Year |
Machining Capacity: |
Medium Duty |
Rapid Feed Speed(mm/min): |
0 - 5 Mm/min |
After-sales Service Provided: |
Engineers Available To Service Machinery Overseas |
Machine Type: |
Vertical Machine Centers |
Product Name: |
4-axis Vertical Cnc Machining Center |
Controlling Mode: |
Cnc System |
Product Type: |
VMC 850 Machining Center |
Processing: |
Maching Center |
Spindle Speed: |
8000 Rpm |
Application: |
Metal Machining |
Control System: |
SIEMENS GSK FANUC (optional) |
After Warranty Service: |
Online Support |

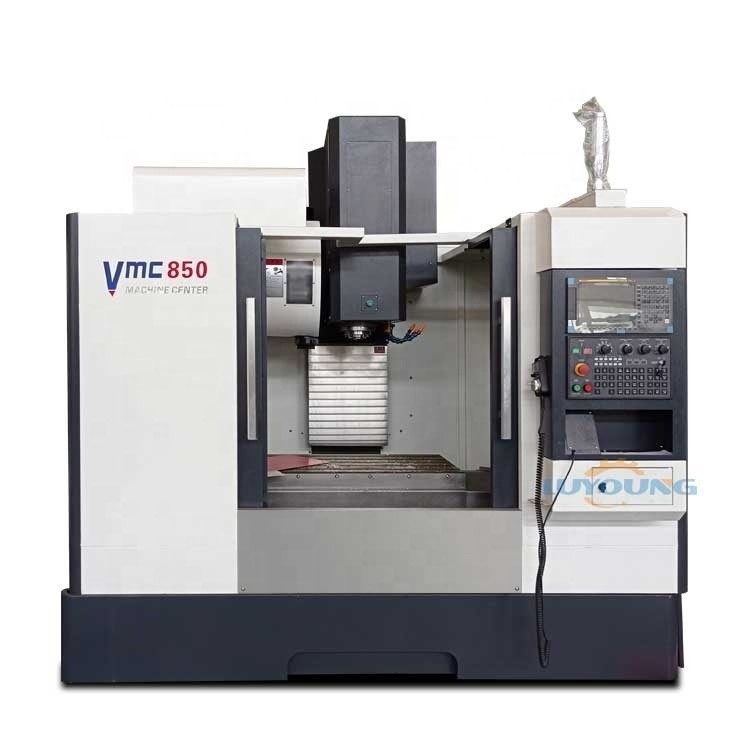

High Precision VMC850 Vertical Machine Centre with 5T Weight and BT40 Spindle Taper
|
Item
|
VMC850
|
|
|
Size of worktable(length×width)mm
|
1000×500
|
|
|
T slot (mm)
|
5-18x100
|
|
|
Max loading weight on worktable
|
600kg
|
|
|
X-Axis travel(mm)
|
800
|
|
|
Y-Axis travel(mm)
|
550
|
|
|
Z-Axis travel(mm)
|
500
|
|
|
Distance between spindle nose and table
|
105-605mm
|
|
|
Distance between spindle center and column(mm)
|
550
|
|
|
Spindle taper
|
BT40
|
|
|
Max. spindle speed( rpm)
|
8000/10000/12000
|
|
|
Spindle motor power(Kw)
|
7.5/11kw
|
|
|
Rapid feeding speed: X,Y,Z axis m/min
|
24/24/24 liner guideway
|
|
|
Fast cutting speed m /min
|
10m/min
|
|
|
Positional accuracy
|
±0.005 mm
|
|
|
Repeat positional accuracy
|
±0.003 mm
|
|
|
Auto Tool changer type
|
24 arm type auto tool changer
|
|
|
Max. tool length
|
300mm
|
|
|
Max. Tool diameter
|
Φ80(adjacent tool)/φ150(not adjacent tool)
|
|
|
Max.tool weight
|
8kg
|
|
|
2.5Tool changing time(tool-to-tool)
|
2.5sec
|
|
|
Air pressure
|
0.6 Mpa
|
|
|
Machine weight
|
5500KG
|
|
|
Overall sizse(mm)
|
2600*2300*2300
|
|
|
Standard configuration:
|
|
|
|
High strength resin sand casting
|
Imported bearings for lead -srew; HIWIN/NSK
|
|
|
X, Y, Z rails adopt stainless steel telescopic cover
|
Eelectric cabinet cold heat exchanger
|
|
|
Standard with belt driven Taiwan spindle---8000RPM
|
Full enclosed cover
|
|
|
GSK25I controller system
|
Manual pulse generator (MPG)
|
|
|
16 tools type Taiwan ATC
|
Toolbox
|
|
|
Centralized automatic feed lubrication system
|
3 Axis lubrication oil collection
|
|
|
Air clean gun
|
Color display
|
|
|
Chip storage tank
|
Foundation pad iron and adjusting bolt
|
|
|
Three color warning lamp
|
USB and Internet interface
|
|
|
Cooling system
|
Leveling blocks & bolts;
|
|
|
Work lamp
|
Rigid tapping
|
|
|
Spindle center air blast
|
|
|
|
Optional configuration:
|
|
|
|
Taiwan ATC, disc type ---24
|
4th /5th axis
|
|
|
Siemens or Fanuc controller system
|
Chip conveyor outside machine
|
|
|
3 axis Hiwin linear guide way
|
Tool measure system
|
|
|
Workpiece measure system
|
|
|
|
Main purchase parts brand
|
|
|
|
Name
|
Brand
|
|
|
Spindle Unit
|
Taiwan
|
|
|
Servo Motor
|
SIEMENS/GSK/FANUC
|
|
|
pressure cylinder
|
Taiwan SUNRISE
|
|
|
Screw bearing
|
FAG
|
|
|
Coupling
|
(R+W)
|
|
|
CNC Controller
|
SIEMENS/GSK/FANUC
|
|
