Product Details
Place of Origin: Shandong, China
Brand Name: Lu Young
Document: Product Brochure PDF
Payment & Shipping Terms
Price: $26,500.00/sets 1-1 sets
Condition: |
New |
Spindle Taper: |
BT40 |
No. Of Spindles: |
Single |
Type: |
VERTICAL |
Dimension(L*W*H): |
3500*2500*2700 |
Weight (T): |
9.3 T |
Table Size (mm): |
1460x700 |
CNC Control System: |
GSK, FANUC, MITSUBISHI, KND, Siemens |
Number Of Axes: |
3, 4, 5 |
Table Travel (X) (mm): |
1300 |
Table Travel (Y) (mm): |
700 |
Table Travel (Z) (mm): |
700 |
Positioning Accuracy (mm): |
±0.01 |
Repeatability (X/Y/Z) (mm): |
±0.005 |
Range Of Spindle Speed(r.p.m): |
1 - 8000 R.p.m |
Spindle Motor Power(kW): |
7.5/11 |
Max. Table Load(kg): |
1000 Kg |
Min. Time Of Tool Change(s): |
7 |
Tool Magazine Capacity: |
16, 20, 12, 24 |
Key Selling Points: |
High Safety Level |
Warranty: |
1 Year |
Voltage: |
220V/380V |
Marketing Type: |
New Product 2024 |
Machinery Test Report: |
Provided |
Video Outgoing-inspection: |
Provided |
Warranty Of Core Components: |
1 Year |
Product Name: |
Vertical 5 Axis Vmc1370 China Milling Machining Center For Sale |
Machine Type: |
Cnc Machining Center |
CNC Or Not: |
CNC |
After-sales Service Provided: |
Engineers Available To Service Machinery Overseas |
Spindle Speed: |
8000rpm |
Tool Changing Time: |
7s |
Max, Table Load: |
600kg |
Power(W): |
15 |
Function: |
Complex Metalworking Processing |
Applicable Industries: |
Building Material Shops, Machinery Repair Shops, Manufacturing Plant |
Showroom Location: |
None |
Core Components: |
Motor |
Feed Speed(mm/min): |
1 - 4000 Mm/min |
Rapid Feed Speed(m/min): |
24 |
Condition: |
New |
Spindle Taper: |
BT40 |
No. Of Spindles: |
Single |
Type: |
VERTICAL |
Dimension(L*W*H): |
3500*2500*2700 |
Weight (T): |
9.3 T |
Table Size (mm): |
1460x700 |
CNC Control System: |
GSK, FANUC, MITSUBISHI, KND, Siemens |
Number Of Axes: |
3, 4, 5 |
Table Travel (X) (mm): |
1300 |
Table Travel (Y) (mm): |
700 |
Table Travel (Z) (mm): |
700 |
Positioning Accuracy (mm): |
±0.01 |
Repeatability (X/Y/Z) (mm): |
±0.005 |
Range Of Spindle Speed(r.p.m): |
1 - 8000 R.p.m |
Spindle Motor Power(kW): |
7.5/11 |
Max. Table Load(kg): |
1000 Kg |
Min. Time Of Tool Change(s): |
7 |
Tool Magazine Capacity: |
16, 20, 12, 24 |
Key Selling Points: |
High Safety Level |
Warranty: |
1 Year |
Voltage: |
220V/380V |
Marketing Type: |
New Product 2024 |
Machinery Test Report: |
Provided |
Video Outgoing-inspection: |
Provided |
Warranty Of Core Components: |
1 Year |
Product Name: |
Vertical 5 Axis Vmc1370 China Milling Machining Center For Sale |
Machine Type: |
Cnc Machining Center |
CNC Or Not: |
CNC |
After-sales Service Provided: |
Engineers Available To Service Machinery Overseas |
Spindle Speed: |
8000rpm |
Tool Changing Time: |
7s |
Max, Table Load: |
600kg |
Power(W): |
15 |
Function: |
Complex Metalworking Processing |
Applicable Industries: |
Building Material Shops, Machinery Repair Shops, Manufacturing Plant |
Showroom Location: |
None |
Core Components: |
Motor |
Feed Speed(mm/min): |
1 - 4000 Mm/min |
Rapid Feed Speed(m/min): |
24 |

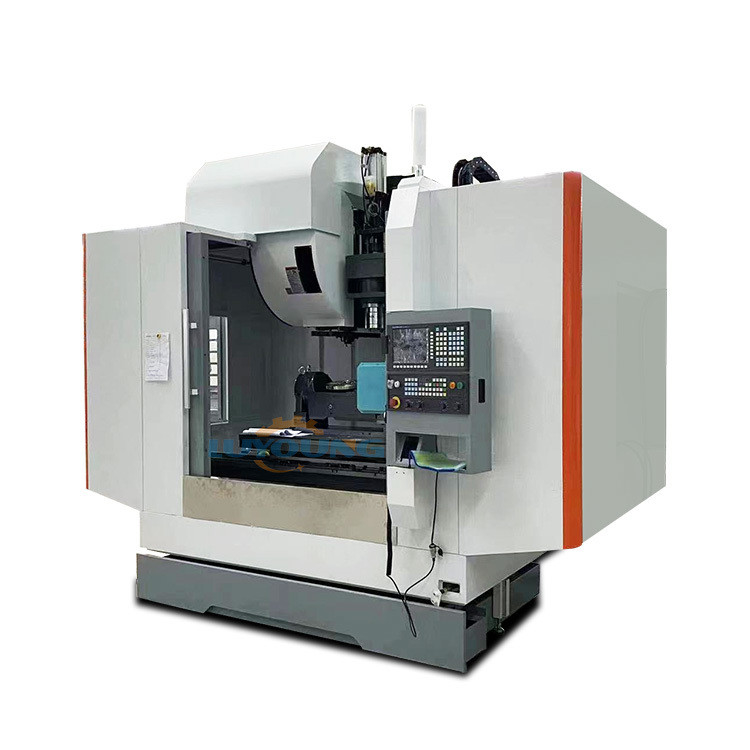

The VMC1370 CNC Vertical Machining Center is a high-performance, precision machine designed for complex metalworking applications. With its 4-axis capability (optional 5-axis), this machine delivers exceptional accuracy and repeatability for demanding manufacturing environments.
| Machine Type | Vertical Machining Center (VMC) |
| Number of Axes | 3, 4, or 5 (configurable) |
| Table Size | 1460×700 mm |
| Max. Table Load | 1000 kg |
| X/Y/Z Travel | 1300/700/700 mm |
| Spindle Taper | BT40 |
| Spindle Speed | 1-8000 rpm |
| Spindle Power | 7.5/11 kW |
| Positioning Accuracy | ±0.01 mm |
| Repeatability | ±0.005 mm |
| Tool Magazine Capacity | 16, 20, 12, or 24 tools (optional) |
| Tool Change Time | 7 seconds |
| Machine Weight | 9.3 Tons |
| Overall Dimensions | 3500×2500×2700 mm |
The VMC1370 offers easy setup and operation with intuitive controls that allow operators to easily observe machining processes and debug programs. Its environmentally friendly design prevents oil mist emissions, making it suitable for various workshop environments.
The 5-axis configuration option enables production of more complex and higher precision metal parts, expanding your manufacturing capabilities.
We provide comprehensive after-sales service including:
