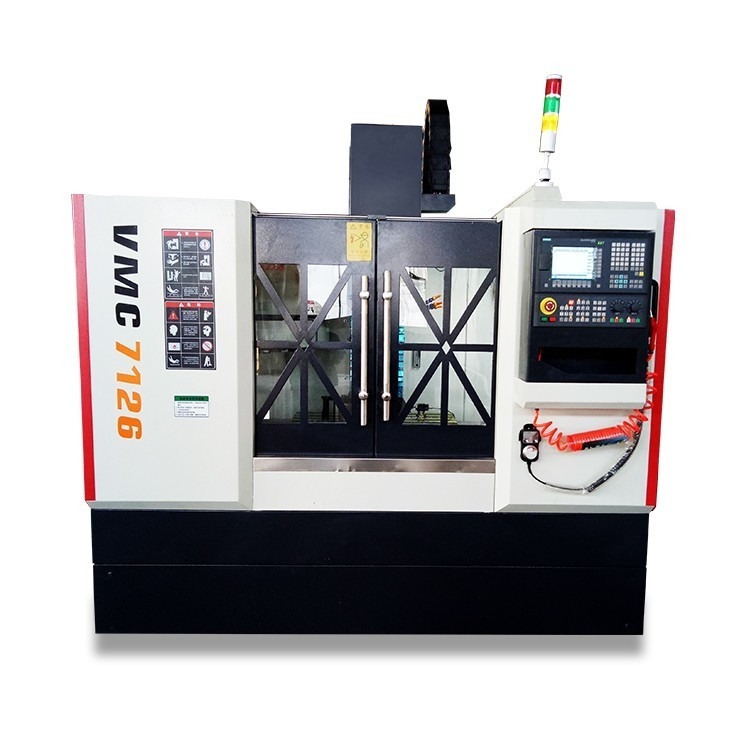

Smart Lathe XK7126 Small CNC Milling Controller Machine for Professional Manufacturing

Name: Smart Lathe XK7126 Small CNC Milling Controller Machine for Professional Manufacturing
Brand: shandong lu young machinery co.,ltd
SKU: XK7126
Price: 1.00 USD
Availability: InStock

Product Details

Place of Origin: Shandong, China

Brand Name: lu young

Model Number: XK7126

Document: Product Brochure PDF

Payment & Shipping Terms

Price: $6,500.00/sets 1-1 sets

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                xk7126 cnc milling machine, xk7126 3 axis cnc vertical milling machine, bt40 cnc milling machine


Type:	VERTICAL	Range Of Spindle Speed(r.p.m):	10 - 8000
Number Of Axes:	3	Machining Capacity:	Medium Duty
Spindle Taper:	BT40	Table Travel (X) (mm):	450
Table Travel (Y) (mm):	320	Table Travel (Z) (mm):	420
Positioning Accuracy (mm):	0.01	Repeatability (X/Y/Z) (mm):	0.02
Voltage:	220V	Dimension(LWH):	122013801650mm
Key Selling Points:	Easy To Operate	Weight (KG):	1500
Warranty:	1 Year	Max. Table Load(kg):	200 Kg
Marketing Type:	New Product 2023	Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided	Warranty Of Core Components:	1 Year
CNC Or Not:	CNC	After-sales Service Provided:	Online Support
Product Name:	3 Axis Vertical China CNC Milling Machine With NSK Bearing	Table Size:	800*240mm
Spindle Taper:	BT30	Precision:	0.001mm
Spindle Speed:	4000rpm	Application:	Metal Machining
Machine Type:	Vertical Machine Centers	Control System:	KND SIEMENS GSK FANUC (optional)
Condition:	New	Applicable Industries:	Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction Works
Showroom Location:	None	Table Travel (mm):	650
Core Components:	ATC

Type:	VERTICAL
Range Of Spindle Speed(r.p.m):	10 - 8000
Number Of Axes:	3
Machining Capacity:	Medium Duty
Spindle Taper:	BT40
Table Travel (X) (mm):	450
Table Travel (Y) (mm):	320
Table Travel (Z) (mm):	420
Positioning Accuracy (mm):	0.01
Repeatability (X/Y/Z) (mm):	0.02
Voltage:	220V
Dimension(LWH):	122013801650mm
Key Selling Points:	Easy To Operate
Weight (KG):	1500
Warranty:	1 Year
Max. Table Load(kg):	200 Kg
Marketing Type:	New Product 2023
Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided
Warranty Of Core Components:	1 Year
CNC Or Not:	CNC
After-sales Service Provided:	Online Support
Product Name:	3 Axis Vertical China CNC Milling Machine With NSK Bearing
Table Size:	800*240mm
Spindle Taper:	BT30
Precision:	0.001mm
Spindle Speed:	4000rpm
Application:	Metal Machining
Machine Type:	Vertical Machine Centers
Control System:	KND SIEMENS GSK FANUC (optional)
Condition:	New
Applicable Industries:	Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction Works
Showroom Location:	None
Table Travel (mm):	650
Core Components:	ATC

Smart Lathe XK7126 Small CNC Milling Controller Machine for Professional Manufacturing

high quality professional manufacturing xk7126 small cnc milling controller machine smart lathe

Specification

projects	unit	7126
Taper of main shaft hole		BT40
The X axis stroke	mm	450
The Y axis stroke	mm	320
The z axis stroke	mm	420
Table area	mm	800×260
Maximum capacity	kg	200
Distance between spindle center and vertical column	mm	300
The main shaft arm is at the maximum distance of the table	mm	450
Spindle speed range	r/min	0~8000
Spindle motor power	kw	3.7kw
Positioning accuracy	mm	±0.02mm
Repeat positioning accuracy	mm	±0.01mm
Feed speed	mm/min	0~4000
X. Y to the servo motor	N.M	6
Z-direction servomotor	N.M	15
Machine net weight	kg	2500
Machine dimensions	mm	210017591960

Product Feature

high quality professional manufacturing xk7126 small cnc milling controller machine smart lathe
1) Base, slide, worktable, column, spindle box and etc. major infrastructure articles all adopt hi-rigid cast iron structure,which could ensure high rigidity, anti-bending and shock-absorbing performance for basic parts; infrastructure articles adopts resin sand and experience aging treatment to make sure machine accuracy & stability during the long-term operation, which provides guarantee for machine reliable performance.
2) X, Y and Z guideways are made of hard rails without frictional resistance during non-feed motion or low-speed crawling phenomena, all of which are in favor of maintaining machine accuracy;
3) Feeding of X, Y and Z adopts famous ball screws of high-precision & high-rigid with high feeding speed and high positioning accuracy.
4) X, Y, Z have three guideways, ball screws all adopt closed shield; maintain clean ball screw & guideways, and make sure the accuracy of machine transmission and motion.
5) The machine tool adopts fully-closed structural design, much safe and reliable; user could choose semi-closed protective structure.

Product Description

high quality professional manufacturing xk7126 small cnc milling controller machine smart lathe is controlled by X, Y and Z three dimensions, and spindle is driven by frequency power. It could realize one-time clamping upon various plates, boards, shells, cam, molds and etc.
complex components, it can also complete drilling, milling, boring, expanding, reaming, tapping and etc. multiple processing; this machine is applied to produce various and middle & large batch of components, especially for machining of complex and high-precision components.

Company Profile

Shandong Lu Young Machinery Co., Ltd., is a modern and high- tech company which is a professional manufacturer of CNC LATHE, CNC MILLING, CNC MACHINE CENTER . With 5,000sqm workshops and offices, we have more than 20 years experiences in cnc machine research and production.Our machines have been exported more than 40 countries.we welcome all customers and friends to come to our company! Regarding the technical force, we have the most professional research and development staff, who can meet all different requirements on technology and production. For the sales, there are internal trade department and international trade department. They are all professional salespersons who can help you solve problems on purchase and technology related to the CNC tools and test machines. Our products are sold both at home and abroad, and they are very popular around the world. All of products have pass CE certification.Welcome to contact with us to make business!!

Customer Photos

Our service

high quality professional manufacturing xk7126 small cnc milling controller machine smart lathe

1. We supply 24 hours on-line service,you could contact with us by email ,phone ,wechat ,whatsapp,skype etc.2. Received your phone or mail,we will Analyze the problem immediately. 3.Supply professional solution, after analyze the problem, we give you our best solution. 4. The warranty period of the whole machine is 1 year. Under normal use, if the machine parts are damaged during the warranty period, we will provide free accessories. Outside the warranty period, if the parts are damaged, we only charge the cost price of the parts, and will never overcharge. 5. Provide lifetime free technical support, you can contact us at any time if you encounter difficulties in the process of use. 6. We provide overseas services, engineers can go to the customer's factory for debugging,installation, maintenance, and repair. (In case of non-epidemic situation).

Packing & Delivery

1.Non-fumigation packaging, we use seaworthy plywood.
2. Steel base plate, it is stronger 3-5 times than normal plywood base plate.
3.Water-proof and damp proof, water resistant film wraped all the machine.
4.Fully sheathed case,prevention of collision and keep the goods intact.

FAQ

1. How can I get a quotation?

A. Leave us massage with your purchase requements and we will reply you ASAP. And you may contact us directly by Trade Manager or Telephone.

2. Can you provide customized machine or SPM (Special purpose machine)?

A. Yes, we provide smart CNC solutions for our customer, in order to increase efficiency.

3. Can you provide training for operation CNC machines?

A. Yes, free training in our factory is available.

4. How about your price?

A. Send me details about what you need, you will get the best price in China. The price is competitive over the world.

5. What’s the delivery time, and what’s the package?

A. Normally the delivery time is about 30-45 days. All our CNC machines are packed with sea worthy package.

6. high quality professional manufacturing xk7126 small cnc milling controller machine smart lathe can be customized?
A: of course, if our product can't meet your need, tell us the model and send us the drawing, recommend suitable products to you,we can also design and produce the machine meet your requirements.
