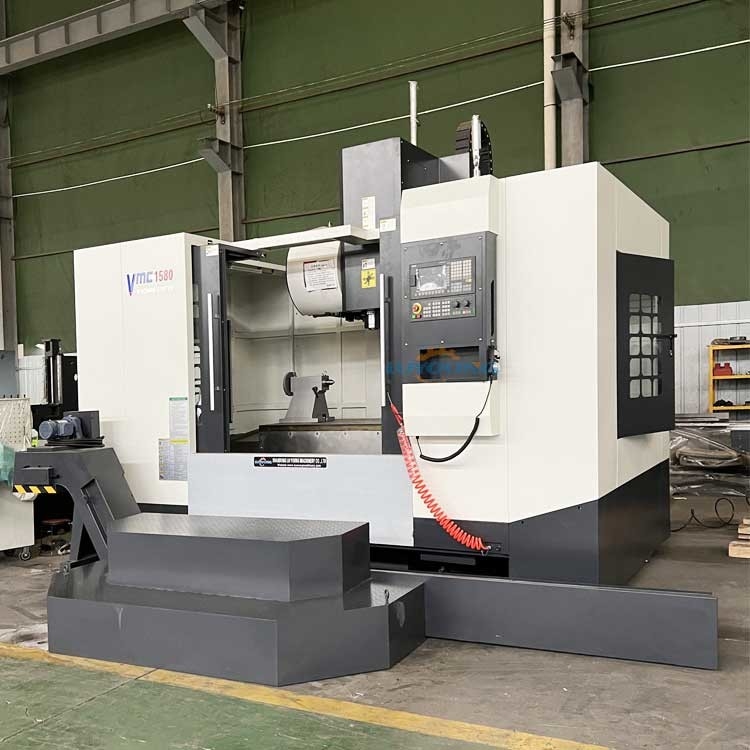

4 Axes Vertical Machining Center Process CNC Milling Machine 1 - 8000 RPM

Name: 4 Axes Vertical Machining Center Process CNC Milling Machine 1 - 8000 RPM
Brand: shandong lu young machinery co.,ltd
SKU: VMC1580
Price: 17.00 USD
Availability: InStock

Product Details

Place of Origin: Shandong, China

Brand Name: Lu Young

Model Number: VMC1580

Document: Product Brochure PDF

Payment & Shipping Terms

Price: $35,000.00/sets

Delivery Time: 30DAYS

Payment Terms: T/T

Supply Ability: 30/SET

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                8000 RPM CNC Milling Machine, Vertical Machining Center CNC Milling Machine, 4 Axes CNC Milling Machine


Type:	VERTICAL	Range Of Spindle Speed(r.p.m):	1 - 8000
Number Of Axes:	4	No. Of Spindles:	Single
Machining Capacity:	Heavy Duty	Spindle Taper:	BT40
Table Travel (X) (mm):	1700	Table Travel (Y) (mm):	800
Table Travel (Z) (mm):	700	Positioning Accuracy (mm):	±0.01
Repeatability (X/Y/Z) (mm):	±0.005	Voltage:	220v/380v
Dimension(LWH):	430032003100	CNC Control System:	GSK
Key Selling Points:	High Safety Level	Weight (KG):	13000
Warranty:	1 Year	Max. Table Load(kg):	1500 Kg
Marketing Type:	New Product 2024	Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided	Warranty Of Core Components:	1 Year
CNC Or Not:	CNC	After-sales Service Provided:	Engineers Available To Service Machinery Overseas
Machine Type:	Machining Center	Precision:	High Precision Machine
Table Size (mm):	1700*800	Travel Of X Axis(mm):	1500
Travel Of Y Axis(mm):	800	Travel Of Z Axis(mm):	700
Max, Table Load:	1500kg

Type:	VERTICAL
Range Of Spindle Speed(r.p.m):	1 - 8000
Number Of Axes:	4
No. Of Spindles:	Single
Machining Capacity:	Heavy Duty
Spindle Taper:	BT40
Table Travel (X) (mm):	1700
Table Travel (Y) (mm):	800
Table Travel (Z) (mm):	700
Positioning Accuracy (mm):	±0.01
Repeatability (X/Y/Z) (mm):	±0.005
Voltage:	220v/380v
Dimension(LWH):	430032003100
CNC Control System:	GSK
Key Selling Points:	High Safety Level
Weight (KG):	13000
Warranty:	1 Year
Max. Table Load(kg):	1500 Kg
Marketing Type:	New Product 2024
Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided
Warranty Of Core Components:	1 Year
CNC Or Not:	CNC
After-sales Service Provided:	Engineers Available To Service Machinery Overseas
Machine Type:	Machining Center
Precision:	High Precision Machine
Table Size (mm):	1700*800
Travel Of X Axis(mm):	1500
Travel Of Y Axis(mm):	800
Travel Of Z Axis(mm):	700
Max, Table Load:	1500kg

4 Axes Vertical Machining Center Process CNC Milling Machine 1 - 8000 RPM

vertical Machining center Process with State-of-the-Art CNC Milling Machine

Product Description

High popular 4 axis Vmc1580 cnc machining center cnc lathe machine control mini vertical machining center for electronics industry is a high-speed machining center machine for the parts processing industry. It is particularly suitable for the IT and automotive parts processing industry as it can perform high speed drilling and tapping as well as high speed milling. The machine has good rigidity, symmetrical structure, fast dynamic response, high accuracy, good sex, easy and flexible operation and is widely used.

Products feature

Standard Configuration of vmc1580

1. High strength resin sand casting
2. 3 axis hard guide way
3. Siemens/Fanuc/KND CNC Controller
4. BT50 Taiwan high speed spindle unit 8000rpm from Taiwan
5. Separate the hand wheel
6. Pneumatic broach system
7. Full guard
8. Automatic intermittent lubrication
9.16 tools type ATC
Optional configurations:
1. 4th axis or 5th axis Taiwan Hiwin linear guide way
2.10000/12000 rpm spindle speed.
3.Chip conveyor
4.Spindle Oil cooling ;
5.24 tools Arm type ATC;

6.coolant through spindle

7.Renishaw tool measurement or prob

High popular 4 axis Vmc1580 cnc machining center cnc lathe machine control mini vertical machining center for electronics industry vertical milling center improves the smoothness of the machine's movement and increases the machining accuracy and surface quality of the product. Machine tool guide rail protection: using guide rail guard, the whole machine tool adopts a fully enclosed structure, so that iron chips and machining fluid do not splash around and the operator's environment is clean and hygienic. The machine tool guard and the main surface coverings are manufactured by powder coating spraying process, the paint coverage is strong, long-term use, the paint does not fade, lose color, the machine tool long-term use, beautiful and neat appearance.

Specification

Item	VMC1580
Worktable size (length×width)	1700×800mm
Max load of worktable	1500 kg
Travel of X /Y/Z axis	430032003100mm
Distance from Spindle center to Colum guide	810mm
Distance of spindle head to table	170-840mm
Cutting feed of X/Y/Z axis	1～8000 mm/min
Rapid feed of X/Y axis	24m/min
Rapid feed of Z axis	24m/min
Spindle speed	50～8000 r/min
Spindle taper	B40
Spindle motor power	18.5KW
Servo motor of X/Y /Z axis	3.0kw
Worktable T slot(quantity×width×space)	5-22/150mm
Repeated positioning accuracy	0.001mm
Accuracy of positioning	+ 0.05mm
Overall dimension(L×W×H)	4300x3200x3100mmmm
Weight	13000 kg

Packing & Delivery

1.Port: Qingdao port or Shanghai port 2.Payment method: T/T, L/C, D/P, D/D etc. 3.Payment: 30% T/T as deposit, 70% balance shall be paid before shipment. 4.Delivery time: 30 days after receive the 30%T/T deposit.5.Non-fumigation packaging, we use seaworthy plywood. 6. Steel base plate, it is stronger 3-5 times than normal plywood base plate. 7.Water-proof and damp proof, water resistant film wraped all the machine.

Company Profile

Shandong Lu Young Machinery Co., Ltd., is a modern and high- tech company which is a professional manufacturer of CNC LATHE, CNC MILLING, CNC MACHINE CENTER . With 5,000sqm workshops and offices, we have more than 20 years experiences in cnc machine research and production.Our machines have been exported more than 40 countries.we welcome all customers and friends to come to our company! Regarding the technical force, we have the most professional research and development staff, who can meet all different requirements on technology and production. For the sales, there are internal trade department and international trade department. They are all professional salespersons who can help you solve problems on purchase and technology related to the CNC tools and test machines. Our products are sold both at home and abroad, and they are very popular around the world. All of products have pass CE certification.Welcome to contact with us to make business!!

Certifications

With strong economic strength, advanced technical equipment and perfect testing means, our company has forged the excellent quality of our products. Our company is based on quality, market-oriented, customer-centered and service-oriented. Our company has won the civilized and honest private enterprise of Shandong Province, advanced unit of independent innovation in Shandong Province machinery industry, with the qualification of utility model patent certificate.

FAQ

How long is your warranty period?

A: our warranty period is one year, and we will maintain the product free of charge during the warranty period.Use our machines to supply standard parts and accessories during shipment.In the correct operation, if there are any damaged parts or accessories, we will replace them immediately by airmail or express mail.

What kind of packing do you have?

Answer: we use a plywood cases, to ensure the packing quality durable, fully protect the safety of the goods in the cabinet, appearance is bright and clean, smooth and beautiful, durable, has low cost, big load, afraid of sun rain no moth, etc.

How long will your delivery date be?

A: our delivery date is one month.30 days

vertical Machining center Process with State-of-the-Art CNC Milling Machine can be customized?

A: of course, if our product can't meet your need, tell us the model and send us the drawing, recommend suitable products to you, we can also design and produce the machine meet your requirements.

How can I contact you?

Through cell phone number and QQ, there is also email contact.
