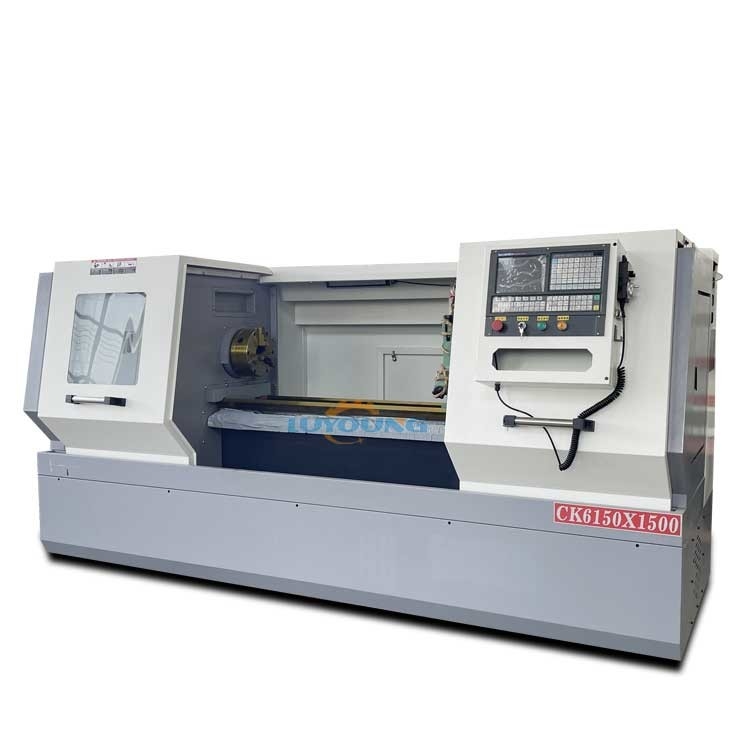

OEM Cnc Lathe Machine CK6150 With 500mm Maximum Machining Over Bed Diameter

Name: OEM Cnc Lathe Machine CK6150 With 500mm Maximum Machining Over Bed Diameter
Brand: shandong lu young machinery co.,ltd
SKU: CK6150
Price: 10,500.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Lu Young

Certification: CE

Model Number: CK6150

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1/set

Price: $9000-$12000

Packaging Details: non-fumigation

Delivery Time: 45 working days

Payment Terms: T/T, L/C

Supply Ability: 30set

Get Best Price

Product Details

Product Description

Highlight:

Machine Size:	261015301674mm	Category:	Cnc Lathe Machine
Max Maching Over Bed Diameter:	500mm	Max Cutting Length:	500MM
Voltage:	3 Phase 380V 50HZ	Dia. Of Spindle:	750/1000/1500/2000mm
Max Spindle Speed:	2500 Rpm	Weight:	3600kg
Port:	Qingdao Or Shanghai Port	Machine Name:	CNC Lathe Machine
Tail Stock:	Manual Tail Stock/hydraulic Tail Stock	Model No:	Ck6150

Machine Size:	261015301674mm
Category:	Cnc Lathe Machine
Max Maching Over Bed Diameter:	500mm
Max Cutting Length:	500MM
Voltage:	3 Phase 380V 50HZ
Dia. Of Spindle:	750/1000/1500/2000mm
Max Spindle Speed:	2500 Rpm
Weight:	3600kg
Port:	Qingdao Or Shanghai Port
Machine Name:	CNC Lathe Machine
Tail Stock:	Manual Tail Stock/hydraulic Tail Stock
Model No:	Ck6150

OEM Cnc Lathe Machine CK6150 With 500mm Maximum Machining Over Bed Diameter

Product Description

Item	CK6150A	ck6150B
Max. swing dia. over bed	Φ500mm	Φ500mm
Max. swing dia. over cross slide	Φ280mm	Φ280mm
Processing length	750/1000/1500/2000mm
Dia. of spindle	Φ82mm
Spindle speed step	step-less	Three gear speed manual change,frequency conversion stepless
Spindle speed	14-1500 rpm	30-150,100-500, 320-1600rpm
Taper of spindle bore	1:20/Φ90
Spindle nose	Type of spindle head D-8
Tool holder	4 station electric tool post
Tool bar section	25X25mm
Main motor power	7.5KW
X/Z axis position accuracy	0.02/0.025mm
X/Z-axis repeatability(mm)	0.01/0.012mm
X/Z axis fast feeding speed	8/10 M/MIN
Tailstock sleeve travel	150mm
Tailstock taper	MT5
Dimension	2410/2660/3160 ×1560×1730mm
Net weight	2800/3200/3500kg

Guide rail of the bed

The guide rail of the bed is finely ground after being quenched by the super-audio frequency, with high hardness, good rigidity and long service life. The carriage adopts the plasticization process of the guide rail surface, which has good wear resistance and high precision.

Tailstock

There is a device in the tailstock sleeve to prevent the rotation of the drill bit, which avoids damage to the taper of the inner hole of the tailstock sleeve due to the rotation of the drill bit caused by misoperation, and effectively protects the tailstock components

Controller system

The standard is GSK980TB3 controller system, the optional is Siemens ,Fanuc or Syntec controller system. Simple and easy to operate,with the operation manual.

Chuck:

The standard chuck is 3 jaw manual chuck, the optional configuration is 3 jaw or 4 jaw hydraulic hollow chuck.

Turret

The standard turret is 4 station electric turret, the optional is 6/8 station electric turret or 12 station living turret.
