32mm Cnc Swiss Turning Machines Automatic Sub Shindle Swiss Lathe

Name: 32mm Cnc Swiss Turning Machines Automatic Sub Shindle Swiss Lathe
Brand: shandong lu young machinery co.,ltd
SKU: SM325
Price: 42,500.00 USD
Availability: InStock

Product Details

Place of Origin: SHANDONG

Brand Name: cnc swiss lathe machine

Certification: CE

Model Number: SM325

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: $35000-$50000

Packaging Details: non-fumigation wooden box

Delivery Time: 7days

Payment Terms: T/T

Supply Ability: 30set

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                32mm cnc swiss turning machines, swiss automatic lathe, cnc swiss turning machines automatic


Power Source:	Electric	Weight:	4000kg
Dimension:	2000mm X 1000mm X 1500mm	Spindle Speed:	6000rpm
Machine Structure:	Horizontal	Voltage:	220V/380V
Max. Turning Length:	20mm	Axis:	5
Control System:	CNC	Accuracy:	High Precision
Model:	CNC Swiss Lathe Machine	Power:	Electric
Material:	High-quality Materials	Type:	Swiss Type CNC Lathe Machine
Color:	Customizable

Power Source:	Electric
Weight:	4000kg
Dimension:	2000mm X 1000mm X 1500mm
Spindle Speed:	6000rpm
Machine Structure:	Horizontal
Voltage:	220V/380V
Max. Turning Length:	20mm
Axis:	5
Control System:	CNC
Accuracy:	High Precision
Model:	CNC Swiss Lathe Machine
Power:	Electric
Material:	High-quality Materials
Type:	Swiss Type CNC Lathe Machine
Color:	Customizable

32mm Cnc Swiss Turning Machines Automatic Sub Shindle Swiss Lathe

Specification

Items		SM325
Machine	Max. RPM	Main10,000/Sub8,000rpm
	Stroke	280mm
	Additional positive brake	1/1000°
	Rapid traverse rate	32m/min
Tooling	O.D Tools	6EA
	Front work tools	5
	Cross driven tools	4
	Back work tools	4
	Eccentricity tools	3
NC	Specification	FANUC 0i-TD
	Controllable axes	7 axis/4axis
	LCD	10.4” MONO
Motor	Main spindle	5.5/7.5kw
	Sub spindle	1.5/2.2kw
	Cross drill	0.55/1.1kw
	Back end	1.0kw
	Servo	1.0kw
	Coolant	0.9kw
	Lubrication	5w
Others	Coolant tank capa.	200L
	Lubrication tank capa.	1.8L
	Center height	1,000mm
	Weight	3800kg
	Thesize(lengthwidthheight)	2200×1477×1660

NO	Name	Number
	Background Edit	1 set
	Absolute / incremental editor	1 set
	X-axis diameter / radius input	1 set
	Constant surface speed control	1 set
	Direct input of tool offset value	1 set
	Single fixed cycle	1 set
	Compound Fixed Cycle	1 set
	Tip arc compensation	1 set
	Metric / inch conversion	1 set
	Graphic display	1 set
	USB socket	1 set
	Processing time / quantity that represents the capabilities	1 set
	Main/Sub Spindle Cs-axis control indexing locking device locking device	1 set
	Hand retrace function	1 set
	Collet chuck means	1 set
	Pneumatic clamping mechanism	1 set
	Centralized lubrication system	1 set
	working lamp	1 set
	Three-color warning lights	1 set
	Conveyor Parts	1 set
	Part receiving device	1 set
	Security locks	1 set
	transformer	1 set
	tools	1 set
	Sub spindle ejection apparatus	1 set
	Ottomans to iron	1 set
	Synchronous rotation guide means	1 set
	4 axis Cross Driven Tools	1 set
	Spindle, sub spindle in rigid tapping	1 set

NO	Name	Number
1.	Automatic Bar feeder	1 set
2.	chip removal device	1 set
3.	lengthy parts passing through subspindle	1 set
4.	High pressure coolant 70bar	1 set
5.	Oil mist colletor	1 set
6.	Back end tools 3 axis (rotating )+1 axis(fixed)	4 ea
7.	2axis eccentricity tools (rotating )+1axis(fixed)	3ea

Name	Brand		Remarks
Screw	HIWIN	Taiwan
Guide	HIWIN	Taiwan
lead screw bearing	NSK	Japan	Self centering P4 level
Spindle bearing	NSK	Japan	High speed angular contact bearing P4 level
Power head berring	NSK	Japan	Angular contact bearing P4 level
Synchronous axis precision spline shaft	THK	Japan	Advanced precision
Control system	SYNTEC/FANUC	Taiwan
Main/Sub motor	SYNTEC/FANUC	Taiwan
Servo motor	SYNTEC/FANUC	Taiwan

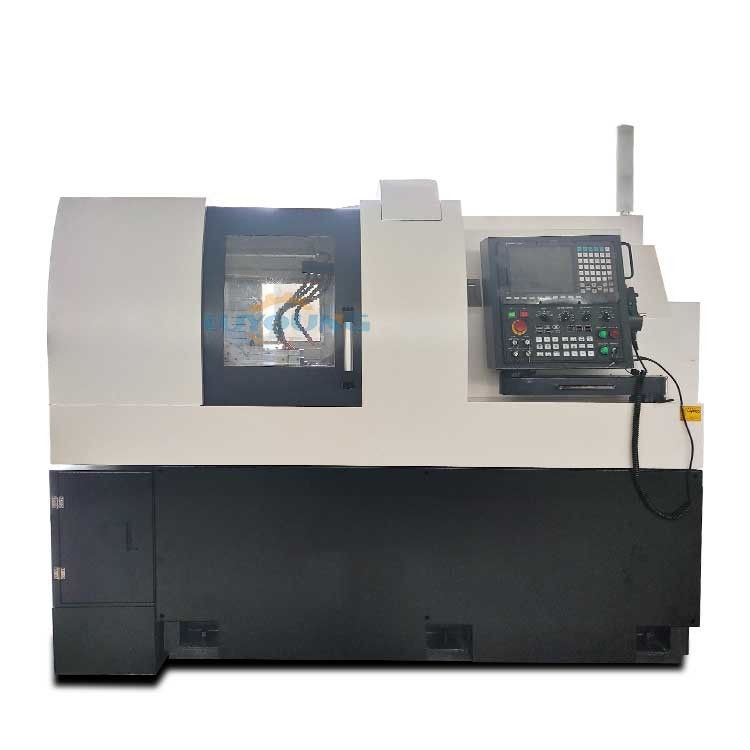

32mm Cnc Swiss Turning Machines Automatic Sub Shindle Swiss Lathe 0

Ultra-High Machining Precision

Utilizes high-rigidity linear guides and precision ball screws, achieving a repositioning accuracy of ±1μm to meet the demands of high-precision industries such as medical devices, watchmaking, and electronics.
Spindle radial runout ≤0.5μm, ensuring surface finish quality up to Ra0.2 or better.

Multi-Axis Compound Machining Capability

Standard 7-axis control (X/Y/Z/main spindle/sub-spindle/live tooling axis/back spindle) enables integrated processes like turning, milling, drilling, and tapping in a single setup.
Optional Y-axis movement for eccentric machining and complex contour forming.

High-Efficiency Automation Integration

Equipped with an automatic bar feeder (supports bar stock diameters: φ1–φ32mm) for continuous production, minimizing manual intervention.
Compatible with robotic arms or articulated robots to establish unmanned production lines.

Key Features in Technical Terms:

Precision Components: Linear guides, ball screws, and thermal compensation systems ensure micron-level stability.
Flexible Configuration: Expandable axes and tooling options adapt to diverse part geometries.
Smart Manufacturing: Seamless integration with automation systems for Industry 4.0-ready workflows.
