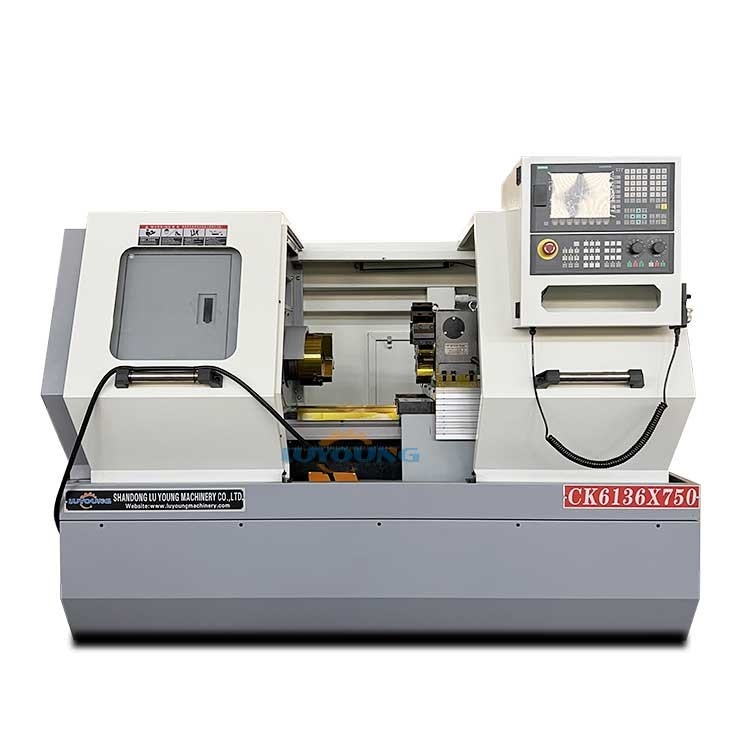

Middle duty 1000mm Cnc Turning Machine CK6136 CNC Lathe 8 Station Electric Turret

Name: Middle duty 1000mm Cnc Turning Machine CK6136 CNC Lathe 8 Station Electric Turret
Brand: shandong lu young machinery co.,ltd
SKU: CK6136
Price: 91,500.00 USD
Availability: InStock

Product Details

Place of Origin: SHANDONG

Brand Name: cnc lathe machine

Certification: CE

Model Number: CK6136

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1set

Packaging Details: non-fumigation wooden box

Delivery Time: 45 working days

Payment Terms: L/C, T/T

Supply Ability: 100sets per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                1000mm cnc turning machine, ck6136 CNC Lathe, cnc turning machine CK6136


Number Of Axes:	2/3/4	Spindle Taper:	MT6
Coolant System:	Yes	Style:	Flat Bed Type
Cnc Or Not:	Cnc	Precision:	High Precision
Distance Between Centres:	750/1000/1500/2000mm	Machine Dimension:	1850/2120/2370x1400x1700mm
Spindle Speed:	150-2500rpm	Main Motor Power:	5.5kw

Number Of Axes:	2/3/4
Spindle Taper:	MT6
Coolant System:	Yes
Style:	Flat Bed Type
Cnc Or Not:	Cnc
Precision:	High Precision
Distance Between Centres:	750/1000/1500/2000mm
Machine Dimension:	1850/2120/2370x1400x1700mm
Spindle Speed:	150-2500rpm
Main Motor Power:	5.5kw

Middle duty 1000mm Cnc Turning Machine CK6136 CNC Lathe 8 Station Electric Turret

Technical Parameters:

Factory price cheap gsk controller automatic cnc lathe machine metal ck6136 flat bed cnc lathe machine
Item	CK6136A
Max. swing dia. over bed	Φ360mm
Max. swing dia. over cross slide	Φ190mm
Max. processing length(mm)	500	750	1000
Dia. of spindle hole	Φ60mm
Spindle speed	150-2500rpm
spindle taper	MT6
Tool holder	4 station electric tool holder
Tool bar section	20x20
Main motor power	4kw	5.5kw
X/Z axis fast feeding speed	6/8 m/min
X/Z axis position accuracy(mm)	0.01/0.015
X/Z-axis repeatability(mm)	0.012/0.013
Clamping	3 Jaw Manual Chuck(optional pnematic or hydraulic chuck)
Tailstock sleeve dia.	60mm
Tailstock sleeve travel	120mm
Tailstock taper	MT4
Dimension	1850x1400x1700	2120x1400x1700	2370x1400x1700
Weight(kg)	1500	1650	1750
Standard configuration:		Optinal configuration:
GSK928 CNC Controller		Siemens,Fanuc cnc controller system
3 jaw manual chuck		pneumatic chuck,hydraulic chuck
4 electric tool holder		pneumatic tailstock,hydraulic tailstock
Auto lubrication system		6 staion tool turret,8staiton tool turret
lighting system		Auto feeder system
cooling system		Chip conveyor
380V 3 phase(if your local have special request pls let us know)

Chuck: Manual/Hydraulic/Penumatic chuck

Tailstock:Manual/Hydraulic

Tool Holder: 4/6/8 stations

Optional: Flying cutting head and driven head
