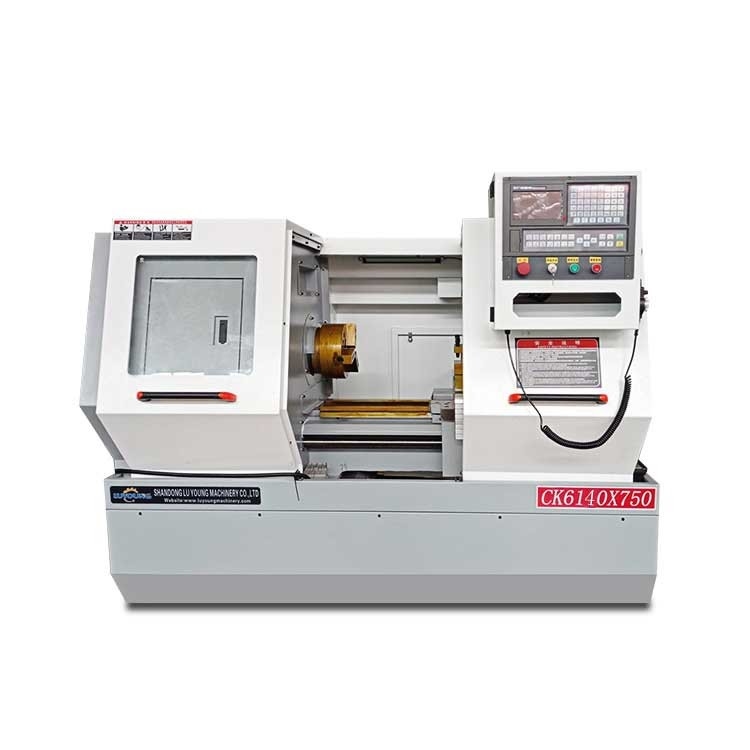

Flat Bed CK6140 CNC Lathe Machine GSK Or FANUC Control Coolant

Name: Flat Bed CK6140 CNC Lathe Machine GSK Or FANUC Control Coolant
Brand: shandong lu young machinery co.,ltd
SKU: CK6140
Price: 7,950.00 USD
Availability: InStock

Product Details

Place of Origin: SHANDONG

Brand Name: cnc lathe machine

Certification: CE

Model Number: CK6140

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1/SET

Price: $6900-$9000

Packaging Details: non-fumigation wooden box

Delivery Time: 30DAYS

Payment Terms: T/T

Supply Ability: 30/SET

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                CNC Lathe Machine FANUC Control, CK6140 CNC Lathe Machine, Flat Bed CK6140 CNC Lathe


Spindle Speed Ranges:	100~1600r/min	Distance Between Centres:	750mm
Coolant System:	Yes	Positioning Accuracy:	0.01
Cnc Or Not:	Cnc	Spindle Head Type:	A2-5
Machine Dimension:	2/2.31.51.7	Cnc Control:	GSK Or FANUC
Tailstock Shaft Diameter:	95mm	Spindle Head:	A2-6
Turret Type:	4/6/8 Station Turret	Spindle Motor Power:	7.5kW
Tailstock Quill Travel:	250	Spindle Motor:	5.5kw
Tool Post Stations:	6, 4	Condition:	New
Through Spindle Hole:	50mm	Spindle Bore:	38mm
Z-Axis Travel:	500mm	Tailstock Shaft Travel:	250mm
Cnc Control System:	GSK

Spindle Speed Ranges:	100~1600r/min
Distance Between Centres:	750mm
Coolant System:	Yes
Positioning Accuracy:	0.01
Cnc Or Not:	Cnc
Spindle Head Type:	A2-5
Machine Dimension:	2/2.31.51.7
Cnc Control:	GSK Or FANUC
Tailstock Shaft Diameter:	95mm
Spindle Head:	A2-6
Turret Type:	4/6/8 Station Turret
Spindle Motor Power:	7.5kW
Tailstock Quill Travel:	250
Spindle Motor:	5.5kw
Tool Post Stations:	6, 4
Condition:	New
Through Spindle Hole:	50mm
Spindle Bore:	38mm
Z-Axis Travel:	500mm
Tailstock Shaft Travel:	250mm
Cnc Control System:	GSK

Flat Bed CK6140 CNC Lathe Machine GSK Or FANUC Control Coolant

CK6140 Accuracy CNC Lathe Machine With GSK Or FANUC Control And Coolant

Specification

Technical parameters	Ck6140
The maximum rotary diameter of the bed	Φ400mm
The maximum rotary diameter on the tray	Φ180mm
Maximum machining length	850/1500mm
Maximum stroke x/z	X:220z:1050/1600mm
The main shaft end form	C6
Diameter of main shaft hole	52mm
Taper of main shaft hole	Mt6
Spindle motor power	5.5kw
Chuck size	200mm
Positioning accuracy	0.02/0.025mm
Repeat positioning accuracy x/z	0.01/0.015mm
Diameter of tail sleeve	65mm
The tail sleeve stroke	140mm
Tail socket taper	Mt4
Tool post form	Electric four-position
Tool profile size	20×20mm
Total power capacity	10KVA
External dimension	2500×1500×1650mm
Machine weight	1800/2300kg

Product Description

CK6140 CNC Metal Turning Machine CNC Lathe series CNC horizontal lathe has the characteristics of high precision, high power, high rigidity, etc. It is the selection equipment for processing shafts, discs, sleeves, special-shaped surfaces and screw work pieces.The electrical components are all imported or domestic well-known brands and comply with CE or domestic 3C certification.
The machine tool is equipped with a well-known domestic brand vertical four-station CNC horizontal electric tool post, which has the characteristics of high positioning accuracy, high strength, and good seismic performance.
The machine tools are inspected strictly in accordance with the inspection procedures before they leave the factory to ensure the stability and reliability of the machine tools.

Product Feature

What is the feature of CK6140 CNC Metal Turning Machine CNC Lathe
♦High-precision rolling bearing supports the main shaft with high rotation accuracy
♦Fully enclosed enclosure, safe and reliable
♦Beautiful appearance design
♦Comprehensive functions, high processing efficiency, easy operation
Product Usage:
♦This machine is suitable for the processing of large and medium-sized parts of various steel, cast iron and non-ferrous metals.
The machine has high power and good rigidity. It is especially suitable for powerful cutting, cutting the inner circle, outer
circle, end face of various work pieces, and metric and inch threads. , And can undertake drilling and boring processes.

Company Profile

Shandong luyoung machinery Co., Ltd. is a professional manufacturing enterprise engaged in the research, development, production,sale and service of CNC machines. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction.
Our main products are Wheel Repair CNC Lathe Machine, Vertical CNC Lathe Machine, Horizontal CNC Lathe Machine, Slant Bed CNC Lathe Machine, Universal Lathe Machine, CNC Milling Machine and CNC Vertical Machining center. All the above products have passed CE, SGS certificates.
