Product Details
Place of Origin: SHANDONG
Brand Name: cnc slant bed lathe machine
Certification: ISO, CE
Model Number: TCK56
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $19300-$24500
Packaging Details: plywood box
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 100sets per month
Rapid Feed Rate: |
24m/min |
Net Weight: |
5000kgs |
Max Workpiece Length: |
750/1000/1500mm |
Max. Swing Diameter Over Bed（mm）: |
560mm |
Coolant System: |
Included |
Spindle TaperSpindle Taper: |
A2-6 |
Max. Spindle Torque （N.m）: |
72 |
Max Spindle Speed (rpm): |
3500rpm |
Spindle Bore (mm): |
66 |
Bar Through-hole(mm): |
Φ52 |
Rapid Feed Rate: |
24m/min |
Net Weight: |
5000kgs |
Max Workpiece Length: |
750/1000/1500mm |
Max. Swing Diameter Over Bed（mm）: |
560mm |
Coolant System: |
Included |
Spindle TaperSpindle Taper: |
A2-6 |
Max. Spindle Torque （N.m）: |
72 |
Max Spindle Speed (rpm): |
3500rpm |
Spindle Bore (mm): |
66 |
Bar Through-hole(mm): |
Φ52 |
| Attribute | Value |
|---|---|
| Rapid Feed Rate | 24m/min |
| Net Weight | 5000kgs |
| Max Workpiece Length | 750/1000/1500mm |
| Max. Swing Diameter Over Bed | 560mm |
| Coolant System | Included |
| Spindle Taper | A2-6 |
| Max. Spindle Torque | 72 N.m |
| Max Spindle Speed | 3500rpm |
| Spindle Bore | 66mm |
| Bar Through-hole | Φ52 |

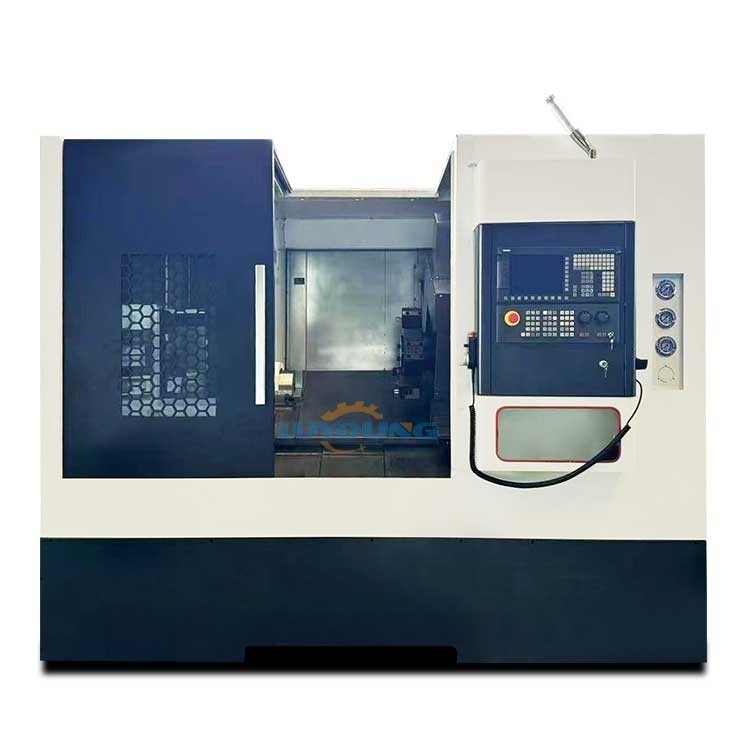

The slant bed CNC lathe is a high-precision, high-efficiency automated machine tool. Equipped with a multi-station turret or power turret, this machine offers extensive process capabilities for machining linear cylinders, oblique cylinders, arcs, threads, grooves, worms, and other complex workpieces. Featuring compensation functions for linear and circular interpolation, it delivers excellent economic performance in mass production of complex parts.
| Item | Model | TCK56*750 (with Y axis) |
|---|---|---|
| Working Range | ||
| Max. Swing Diameter Over Bed | Φ650mm | |
| Max. Cutting Diameter | Φ540mm | |
| Max. Cutting Length | 540mm | |
Spindle: High rigidity and high speed structure enabling stepless speed change, constant linear speed cutting, and high-speed cutting.
Turret: High-performance hydraulic tool post with excellent rigidity, precise tool change, fast speed, and high reliability.
Controller System: CNC system Siemens 808D controller system with optional GSK or FANUC.
Linear Guide Way: Taiwan Hiwin linear guide for large load capacity, excellent dynamic response, and precision.
The slant bed CNC lathe machine is securely packed in sturdy wooden crates to ensure safe transportation. Each component is properly fastened to prevent damage during shipping. We work with reliable freight carriers experienced in handling heavy machinery.
Yes, we can redesign and produce the machine to meet your specific requirements if our standard configuration doesn't suit your needs.
