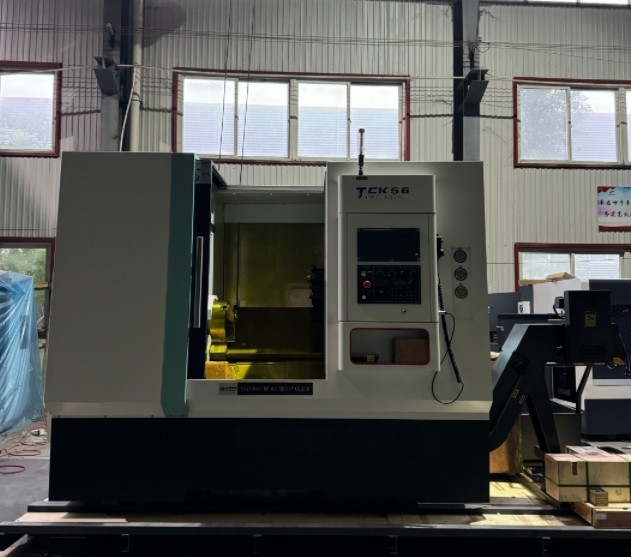

1000mm Cnc Metal Parts TCK56 Slant Bed Lathe Turning Center

Name: 1000mm Cnc Metal Parts TCK56 Slant Bed Lathe Turning Center
Brand: shandong lu young machinery co.,ltd
SKU: TCK56
Price: 37,000.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Luyoung

Certification: CE

Model Number: TCK56

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: USD24000- USD50000

Packaging Details: Fumigation-free plywood

Delivery Time: 45 working days

Payment Terms: L/C, T/T

Supply Ability: 100sets

Get Best Price

Product Details

Product Description

Highlight:
                                                TCK56 CNC Metal parts Lathe, Slant Bed CNC Metal parts Lathe, 1000mm CNC Metal parts Lathe


1000mm Cnc Metal Parts TCK56 Slant Bed Lathe Turning Center

1000mm CNC Metal Parts TCK56 Slant Bed Lathe Turning Center

Specifications

Model	TCK40	TCK50	TCK56*750(Servo turret)	TCK56*750(with Y axis)
Max. swing diameter over bed(mm)	Φ450	Φ550	Φ560	Φ650
Max. cutting diameter(mm)	Φ120	Φ440	Φ540	Φ540
Max.cutting length(mm)	335	Φ450	580	540
X axis travel(mm)	900	250	280	280
Z axis travel(mm)	335	500	750/1000	750/1000
X/Z axis movement speed(mm/min)	24000	24000	24000	24000
Handwheel(mm)	0.001/0.01/0.1	0.001/0.01/0.1	0.001/0.01/0.1	0.001/0.01/0.1
X,Z axis feed speed(mm/min)	0~5000	0~5000	0~5000	0~5000
X,Z axis manual feed speed(mm/min)	0~1260	0~1260	0~1260	0~1260
X/Z axis repositioning accuracy(mm)	0.005/0.006	0.005/0.006	0.005/0.006	0.005/0.006
X/Z axis positionaI accuracy(mm)	0.01/0.015	0.01/0.015	0.01/0.015	0.01/0.015
Max spindle speed (rpm)	4,500	3500	3500	3500
Max. spindle torque (N.m)	35	48	72	72
Spindle taper	A2-5(optional A2-6)	A2-6	A2-6	A2-6
Spindle bore (mm)	Φ52	Φ66	Φ66	Φ66
Bar through-hole(mm)	Φ40	Φ50	Φ52	Φ52
hydraulic chuck	6" (Optional8")	10" (Optional2")	8" (Optional 10")	8" (Optional 10")
Turret type	Gang type tool holder	Hydraulic turret	Hydraulic turret	living turret
Number of tool holder	/	12	12	12
Tool change times(s)	/	0.25	0.25	0.25
Tool mounting dimension(mm)	20×20	25×25	25×25	25×25
Boring tool holder mounting diameter(mm)	Φ25	Φ32	Φ32	Φ32
Tailstock travel (mm)	/	480	480	480
Center taper	/	MT-5#	MT-5#	MT-5#
Main motor power(kW)	5.5	7.5	11	11
Main motor torque (N.m)	35	48	72	72
X/Z axis feed motor Power (kw)	1.5	2.3	2.3	2.3
X/Z axis feed motor torque (N.m)	6	15	15	15
Coolant capacity (L)	200	200	200	200
Motor type (1HP) (kw)	0.125	0.18	0.18	0.18
L×W×H(mm)	210014501850	269717951860	3400/3600/×2060×2100	3400/3600/×2060×2100
Machine weight (kg)	1600	3600	4200/4500	4200/4500

Standard Configuration

GSK control system, hydraulic chuck, hydraulic tailstock, hydraulic turret

Optional Configuration

GSK988/Siemens/Fanuc/Syntec control system, 12 station driven turret, auto bar feeder, workpiece catcher, chain type chip conveyor

Key Features of TCK56 Slant Bed CNC Lathe

Slant Bed Structure

30° slant bed design provides better stability during cutting operations
Efficient chip removal and easy access for loading/unloading workpieces

High Rigidity and Strength

High-density cast iron construction for excellent rigidity and vibration absorption
Optimized internal rib structure ensures high stability during heavy cutting

Precision Guideways

Precision linear guideways reduce friction and increase load capacity
Improved feed accuracy and faster movement speeds enhance machining efficiency

Powerful Spindle

High-performance spindle delivers high speeds and torque for various machining tasks
Design minimizes thermal deformation to maintain precision during extended operations

Efficient Tool Change System
