Product Details
Place of Origin: CHINA
Brand Name: Lu Young
Certification: CE,ISO
Model Number: CK6136
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: $6500-$7500
Packaging Details: plywood box
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 100sets per month
Max. Swing Dia. Over Bed: |
360mm |
Max. Swing Dia. Over Cross Slide: |
190mm |
Max. Processing Length: |
750/1000mm |
Dia. Of Spindle Hole: |
52/60mm |
Spindle Speed: |
150-2500rpm |
Spindle Taper: |
MT6 |
Tool Holder: |
4 Station Electric Tool Holder |
Tool Bar Section: |
20x20 |
Main Motor Power: |
5.5kw |
X/Z Axis Fast Feeding Speed: |
6/8 M/min |
Max. Swing Dia. Over Bed: |
360mm |
Max. Swing Dia. Over Cross Slide: |
190mm |
Max. Processing Length: |
750/1000mm |
Dia. Of Spindle Hole: |
52/60mm |
Spindle Speed: |
150-2500rpm |
Spindle Taper: |
MT6 |
Tool Holder: |
4 Station Electric Tool Holder |
Tool Bar Section: |
20x20 |
Main Motor Power: |
5.5kw |
X/Z Axis Fast Feeding Speed: |
6/8 M/min |

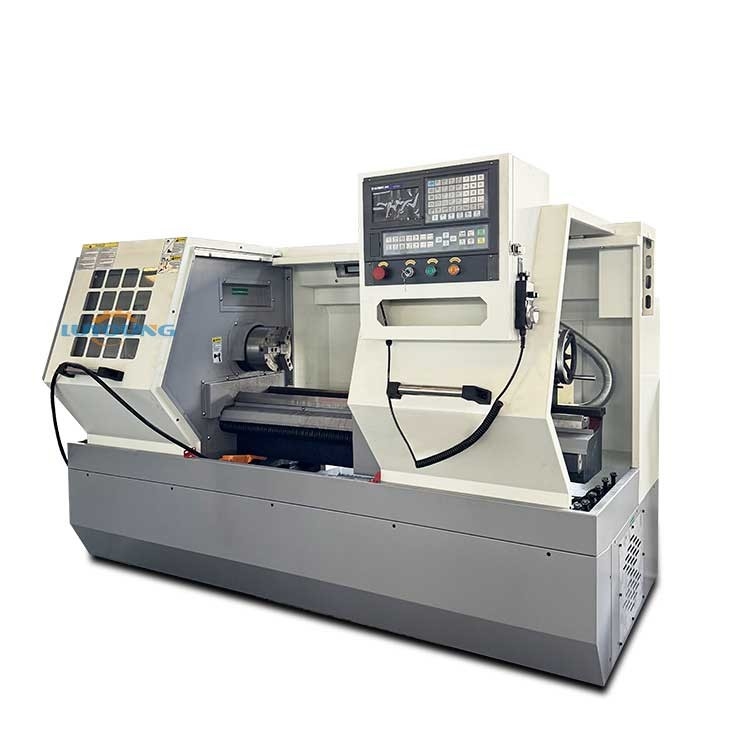

China flat bed GSK controller cheap CK6136 CNC lathe machine with hydraulic chuck
Specification of China flat bed GSK controller cheap CK6136 CNC lathe machine with hydraulic chuck:
| Middle CNC Lathe Machine CK6136A | ||
| Item | CK6136A | |
| Max. swing dia. over bed | Φ360mm | |
| Max. swing dia. over cross slide | Φ190mm | |
| Max. processing length(mm) | 750 | 1000 |
| Dia. of spindle hole | 52/60mm | |
| Spindle speed | 150-2500rpm | |
| spindle taper | MT6 | |
| Tool holder | 4 station electric tool holder | |
| Tool bar section | 20x20 | |
| Main motor power | 5.5kw | |
| X/Z axis fast feeding speed | 6/8 m/min | |
| X/Z axis position accuracy(mm) | 0.01/0.015 | |
| X/Z-axis repeatability(mm) | 0.012/0.013 | |
| Clamping | 3 Jaw Manual Chuck(optional pnematic or hydraulic chuck) | |
| Tailstock sleeve dia. | 60mm | |
| Tailstock sleeve travel | 120mm | |
| Tailstock taper | MT4 | |
| Dimension | 2120x1400x1700 | 2370x1400x1700 |
| Weight(kg) | 1650 | 1750 |
List of attached accessories and tools(Automatic 3 jaw chuck cnc precision lathe machine CK6136 Chinese metal lathe machine with CE)
| serial number | Name | Model |
Quantity (set) |
| 1 | 3 jaw chuck | K21200(QT) | 1 |
| 2 | Three jaw chuck flange | Φ200 | 1 |
| 3 | centre | MTGB9204.1-88 | 2 |
| 4 | Taper middle sleeve | MT6＃4＃ S76-1 | 1 |
| 5 | stud dead spanner | 8×10,12×14,17×19,22×24 S91-1 | 4 |
| 6 | square socket wrench | 14 S92-3 | 1 |
| 7 | hookwrench | 28-32,34-42,85-105,110-130 S93-1 | 4 |
| 8 | hex wrenches | 4,5,6,8,10 S91-7 | 5 |
| 9 | screwdriver | 150 | 1 |
| 10 | oil gun | YK100 | 1 |
| 11 | foundation bolt | M16×34 GB779-76 | 6 |
| 12 | nut | M16 GB6171-86 | 6 |
| 13 | gasket | 16 GB95-85 | 6 |
| 14 | Machine-to-adjust-Sizing-Block | 6 |
Advantage of our ck6136 cnc lathe machine:(Automatic 3 jaw chuck cnc precision lathe machine CK6136 Chinese metal lathe machine with CE)
1. Bed: adopts horizontal flat guide rail structure, overall box-type wide bed foot design; resin sand casting, high rigidity; guide rail quenching and fine grinding, precision and stability are maintained.
2. Spindle box: The bearing adopts the special bearing of Harbin Bearing Factory's high-precision spindle, which has high rotation accuracy. The design of the spindle box body takes full consideration of heat dissipation measures and damping mechanism, which makes the spindle box have the characteristics of low noise and high transmission accuracy.
3. Turning main movement
The main shaft is driven by a frequency conversion motor through a V-belt through a variable speed mechanism. It has the characteristics of high transmission accuracy, excellent power and torque characteristics, high speed, stable transmission, and compact structure.
4. The feed system adopts high-precision ball screw direct drive, the sliding surface is plasticized, eliminates crawling, improves working accuracy, increases the wear resistance and impact resistance of moving parts, maintains the precision of the guide rail for a long time, and improves the service life of the machine tool. .
5. The centralized lubrication and lubrication pump has functions such as working status display and hydraulic pressure monitoring. The oil filling cycle can be adjusted at any time.
LU YOUNG:(Automatic 3 jaw chuck cnc precision lathe machine CK6136 Chinese metal lathe machine with CE)
Shandong Lu Young Machinery Co, Ltd. is established in July 1996.We are located in shandong provice.We are one of professional cnc lathe machine, cnc milling machine and swiss lathe machine manufacturer in china.We founded our fast lathe machine factory in 1996 in tengzhou City to produce center lathe and univesal milling machine for over 20 years development,we build three factories.One is for cnc lathe production one for cnc milling production.
We imported advanced production technology and R&D team from Korean in 2001 and build our third factory for
♥ More than 20 years of production experience.
♥Exported more than 40 countries.
♥ More than 300 staffs in factory.
♥ CE and ISO9001 certification .
♥ 7×24 hours online service.
