Product Details
Place of Origin: Shandong, China
Brand Name: luyoung
Certification: CE
Model Number: tck56
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $35000-$40000
Packaging Details: non-fumigation wooden box
Delivery Time: 45 working days
Payment Terms: L/C, T/T
Supply Ability: 100sets
Structure: |
Slant Bed Lathe |
Max. Weight Of Workpiece(kg): |
200 |
Width Of Bed (mm): |
600 Mm |
Travel (X Axis)(mm): |
280 Mm |
Travel (Z Axis)(mm): |
1000 Mm |
Positioning Accuracy (mm): |
±0.006 |
Repeatability (X/Y/Z) (mm): |
±0.015 |
Tool Post Stations: |
12 |
Warranty: |
1 Year |
Spindle Speed Ranges: |
3000~4000rpm |
Spindle Bore: |
66mm |
Spindle Taper: |
A2-6 |
Structure: |
Slant Bed Lathe |
Max. Weight Of Workpiece(kg): |
200 |
Width Of Bed (mm): |
600 Mm |
Travel (X Axis)(mm): |
280 Mm |
Travel (Z Axis)(mm): |
1000 Mm |
Positioning Accuracy (mm): |
±0.006 |
Repeatability (X/Y/Z) (mm): |
±0.015 |
Tool Post Stations: |
12 |
Warranty: |
1 Year |
Spindle Speed Ranges: |
3000~4000rpm |
Spindle Bore: |
66mm |
Spindle Taper: |
A2-6 |

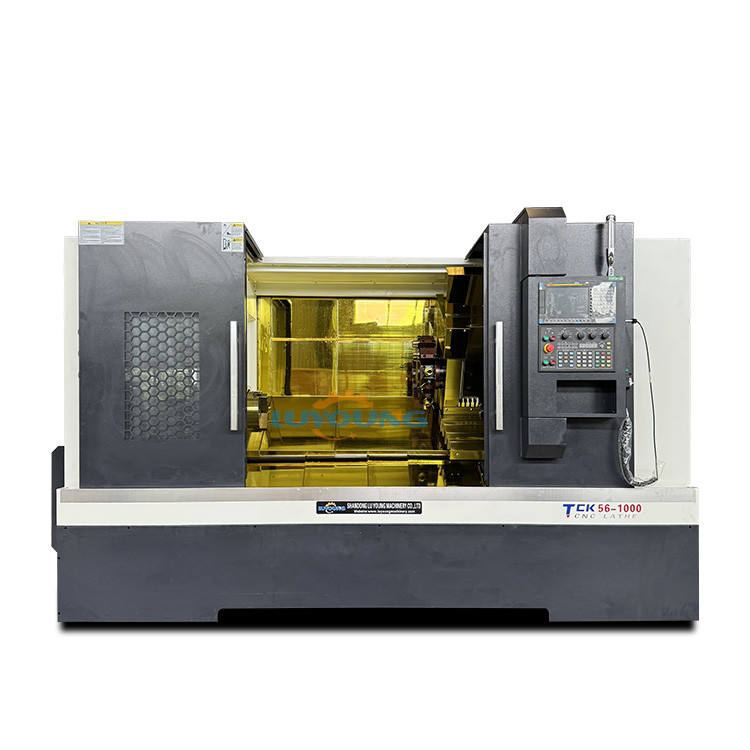

Specification of High Precision Custom Made tck56 750mm
|
Specifications |
Units |
TCK56x750 |
|
Max.swing over bed |
mm |
560 |
|
Max. Swing over cross slide |
mm |
---- |
|
Max. Processing length |
mm |
750 |
|
Cross slide length |
mm |
1000 |
|
Lathe bed straucture |
|
45° integral inclined lathe |
|
Distance between cross slide and spindle axis |
mm |
---- |
|
Spindle nose |
|
A2-6 |
|
Spindle (C axis )speed range |
R/min |
50-3500 |
|
Spindle bore |
mm |
66mm |
|
Bar capacity |
mm |
75mm |
|
Spindle (C Axis)motor |
kw |
11 |
|
Milling head |
|
12 station driven turret |
|
Milling head power |
kw |
2.3 |
|
Milling head speed |
R/min |
6000 |
|
X axis travel |
mm |
340 |
|
Z axis trave |
mm |
1000 |
|
Y axis trave |
mm |
100 |
|
Turret type |
|
12 station driven turret |
|
X rapid traverse |
Mm/min |
24000 |
|
Z rapid traverse |
Mm/min |
24000 |
|
Y rapid traverse |
Mm/min |
15000 |
|
X/Z axis positioning accuracy |
mm |
0.006 |
|
X/Z axis repositioning accuracy |
mm |
0.015 |
|
Spindle (C axis)dividing positioning accuracy |
mm |
0.02’’(70 arc-seond) |
|
Spindle (C axis)dividing repositioning accuracy |
mm |
0.006’’(20 arc-seond) |
|
Machine dimension(LxWxH) |
mm |
3400x2060x2100 |
|
Net weight |
Kg |
4200/4500 |
Other optional configuration of turret
Hydraulic servo turret, vdi turret
Taiwanese linear guideways on the TCK56 slant bed lathe improve machining accuracy:
Live Tool Turret (Core Component):
Mounted on the spindle (typically with interfaces like BMT, VDI, etc.), capable of holding multiple tools.
Key Feature: The turret can not only perform turning operations (radial), but more importantly, it features built-in drive power (driven by a servo motor), allowing it to mount rotating tools (milling cutters, drills, taps, etc.).
Y-axis (Critical Feature): The live tool turret typically incorporates Y-axis functionality. This means the rotating tools can move not only in the X (radial) and Z (axial) directions, but also in the Y-axis (vertical direction). This enables the machine to perform off-center milling, drilling, tapping, as well as more complex 2.5D or 3D contour milling, significantly expanding its machining capabilities.
C-axis (Indexing/Contouring Control):
The main spindle (and sometimes the sub-spindle) is not only a rotating spindle but also a high-precision numerically controlled rotary axis (C-axis).
Functions:
Indexing Positioning: Precisely rotates the spindle to a specific angle for milling or drilling operations (e.g., milling keyways, drilling holes distributed around a circumference).
Contouring Control: During complex contour milling, the C-axis can interpolate with the X, Y, and Z axes, enabling true 3-axis, 4-axis (X/Y/Z/C), or even 5-axis (if equipped with a B-axis turret) simultaneous machining. This allows machining of complex surfaces, cams, spiral grooves, and similar features.
