Product Details
Place of Origin: China
Brand Name: Luyoung
Certification: CE
Model Number: TCK56/630
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1/SET
Price: USD30000-USD50000
Packaging Details: non-fumigation wooden box
Delivery Time: 45 working days
Payment Terms: L/C, T/T
Supply Ability: 30/SET
Spindle: |
Double |
Main Spindle: |
Servo |
Sub Main Spindle: |
Electrical |
Turret: |
Power Turret |
Spindle Taper: |
A2-6 |
Spindle: |
Double |
Main Spindle: |
Servo |
Sub Main Spindle: |
Electrical |
Turret: |
Power Turret |
Spindle Taper: |
A2-6 |
| Location | project | F CK 56Y |
| Processing range | Maximum swing diameter on bed (mm) | Φ 630 |
| Maximum cutting diameter (mm) | Φ 540 | |
| Maximum cutting length (mm) | Power turret 540 | |
|
Itinerary and Feed |
X-axis travel (mm) | 280 |
| Y-axis travel (mm) | ±50 | |
| Z-axis travel (mm) | 750 | |
| X-axis moving speed (mm/min) | 24000 | |
| Z axis moving speed (mm/min) | 24000 | |
| Hand wheel (mm) | 0.001/0.01/0.1 | |
| X, Z feed speed (mm/min) | 0~5000 | |
| X, Z manual feed speed (mm/min) | 0~1260 | |
| Position accuracy | X-axis repeatability (mm) | 0.005 |
| X-axis positioning accuracy (mm) | 0.0 08 | |
| Z axis repeatability (mm) | 0.00 6 | |
| Z axis positioning accuracy (mm) | 0.0 08 | |
| Spindle | Spindle speed ( rpm) | 10 - 3000 |
| Maximum spindle torque ( N.m ) | 72 | |
| Spindle nose | A2-6 | |
| Spindle through hole diameter (mm) | Φ 66 | |
| Hollow hydraulic chuck through hole diameter (mm) | Φ 52 | |
| Chuck | 10 ” | |
|
Power turret wire gauge |
Number of tool holders | 12 stations |
| Tool change time (s) | 0.25 | |
| Common tool installation dimensions (mm) | 25 × 25 | |
| Y-axis travel mm | ±50 | |
| Hydraulic cutter head release /lock time S | 0.12 | |
| Positioning indexing accuracy | ±4 " | |
| Repeat positioning accuracy | ±2 " | |
| Wire gauge specifications | 35 rollers at the front and 25 rollers at the rear | |
| Tool speed | 6000rpm | |
| Power tool size | BMT55/ER32 | |
| Maximum weight of turret | 300kg | |
| Electric spindle | Spindle structure | A2-5 |
| Spindle through hole | 56mm | |
| Spindle outer diameter | 170mm | |
| Main motor | Main motor power (kw) | 11 ( 4 500rpm) |
| Main motor torque ( N.m ) | 72 | |
|
X, Z axis Feed motor |
X- axis feed motor power (kw) | 2.3 |
| X- axis feed motor torque (N. m ) | 15 | |
| Z- axis feed motor power (kw) | 2.3 | |
| Z- axis feed motor torque (N. m ) | 15 | |
| Cooling system | Coolant capacity ( L) | 200 |
| Motor type (1HP) (kw) | 0.18 | |
| size | Installation (length*width*height) (mm) | 3400/2060/2100 |
| weight | Machine weight (kg) | 4500 |

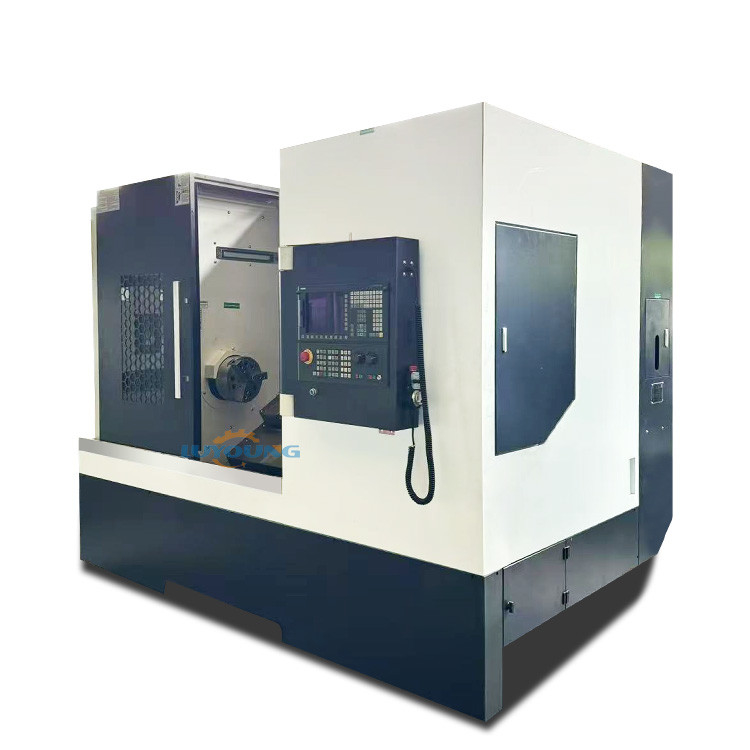

FCK 56Y-750 series multifunctional CNC lathe is a high-speed precision CNC processing equipment produced by our company using Japanese technology. The main accessories are all products from well-known domestic and foreign manufacturers, and the key components are completed by imported precision pentahedron processing centers to ensure manufacturing accuracy.
Machine tool structure
1. The bed of FCK56Y series multifunctional CNC lathe adopts box-shaped structure and strong cast iron (HT -300 ), which is cast by one-piece casting technology and completed by one-time clamping and processing in a high-precision machining center. Therefore, it has the characteristics of strong overall rigidity, good machine tool precision retention, and high reliability.
2. The bed adopts high-rigidity 30- °degree inclined back integral bed, which is convenient for chip removal and equipped with a separate water tank to completely prevent leakage and easy maintenance.
