Product Details
Place of Origin: China
Brand Name: Luyoung
Certification: CE
Model Number: CA6241
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1/SET
Price: USD6000-10000
Packaging Details: non-fumigation wooden box
Delivery Time: 45 working days
Payment Terms: T/T, L/C
Supply Ability: 30/SET
Spindle: |
Flat |
Spindle Bore: |
52/80mm |
Chuck: |
3-jaw Manual Chuck |
Tailstock: |
Manual |
Distance Between Two Centers: |
750mm |
Spindle: |
Flat |
Spindle Bore: |
52/80mm |
Chuck: |
3-jaw Manual Chuck |
Tailstock: |
Manual |
Distance Between Two Centers: |
750mm |
| Model | Unit | C6136A | CA6140A | CA6240 | CA6150 | CA6250 | |
| 床身上最大回转直径Max.Swing over bed | mm | 360 | 400 | 410 | 500 | 500 | |
| 拖板上最大回转直径 Max.Swing over carriage | mm | 190 | 210 | 225 | 300 | 300 | |
| 马鞍上回转直径*有效长度Max.Swing in gap*Effective gap length | mm | - | - | 630*210 | - | 720*210 | |
| 主轴中心至床身平面导轨 Distance from spindle center to bed plane guide | mm | 205 | 205 | 205 | 250 | 250 | |
| 最大工件长度 Max length of bed | mm | 750/1000/1500/2000/2200/3000/4000 | |||||
| 床身宽度 Width of bed | mm | 400 | |||||
| 刀杆尺寸 Section of turming tool | mm | 25×25 | |||||
| 主轴Spindle | 主轴转速Spindle speeds | rpm | 11-1600./12-1680 | ||||
| 主轴通孔 spindle bore | mm | 52 | |||||
| 主轴锥度Spindle taper | NO.6(MT6)(φ90 1:20) [φ113 1:20] | ||||||
| 进给 Feed |
公制螺纹范围(种类)Range of metric threads(kinds) | mm | (1-192)44(44 kinds) | ||||
| 英制螺纹范围(种类)Range of inch threads(kinds) | (2-24tpi)21(21 kinds) | ||||||
| 模数螺纹范围(Range of module threads(kinds) | 0.25-48(39)(Module 39kinds) | ||||||
| 螺距螺纹范围Range of pitch threads(kinds) | 1-96DP(37)(37kinds) | ||||||
| 尾座Taistock | 尾座主轴最大行程Max.tail stock spindle travel | mm | 150 | ||||
| 尾座主轴直径 Tail stock spindle diameter | mm | 75 | |||||
| 尾座主轴中心孔锥度Taper of tail stock spindle center hole | NO.5(MT5) | ||||||
| 主电机Main motor | KW | 7.5KW | |||||
| 包装尺寸Packing dimensins (L*W*H) | 750mm | mm | 1900*1400*1630 | 2400*1400*1630 | |||
| 1000mm | mm | 2400*1400*1630 | 2900*1400*1630 | ||||
| 1500mm | mm | 2900*1400*1630 | 3400*1400*1630 | ||||
| 2000mm | mm | 3400*1400*1630 | 3900*1400*1630 | ||||
| 重量Weight | 750mm | kg | 1900 | 2060 | |||
| 1000mm | kg | 2070 | 2140 | ||||
| 1500 | kg | 2570 | 2640 | ||||
| 2000 | kg | 2570 | 2640 | ||||

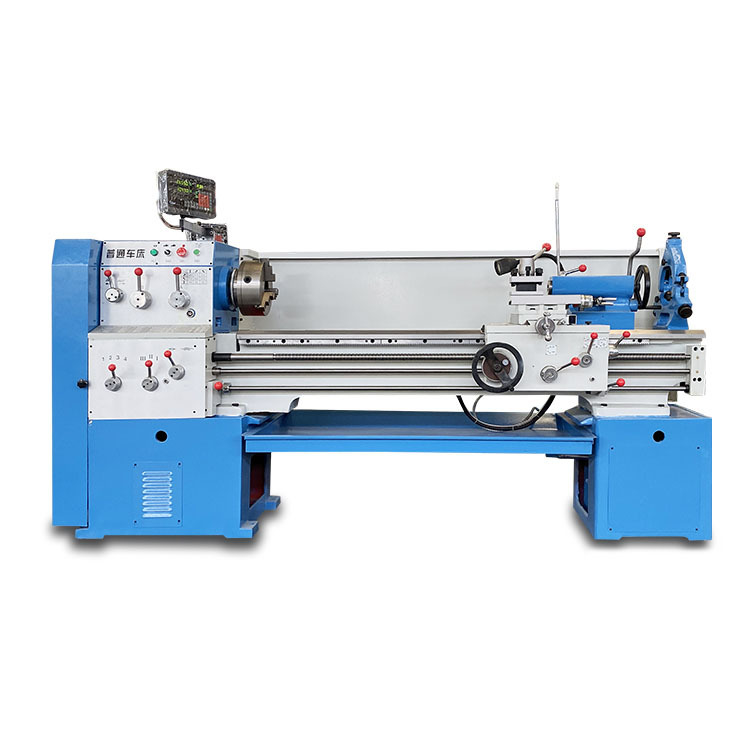

C6241x750 is a robust and versatile classic horizontal lathe, suitable for machining small to medium-sized shaft and disc/sleeve parts. It is commonly found in maintenance workshops, toolrooms, and small-batch production scenarios.
