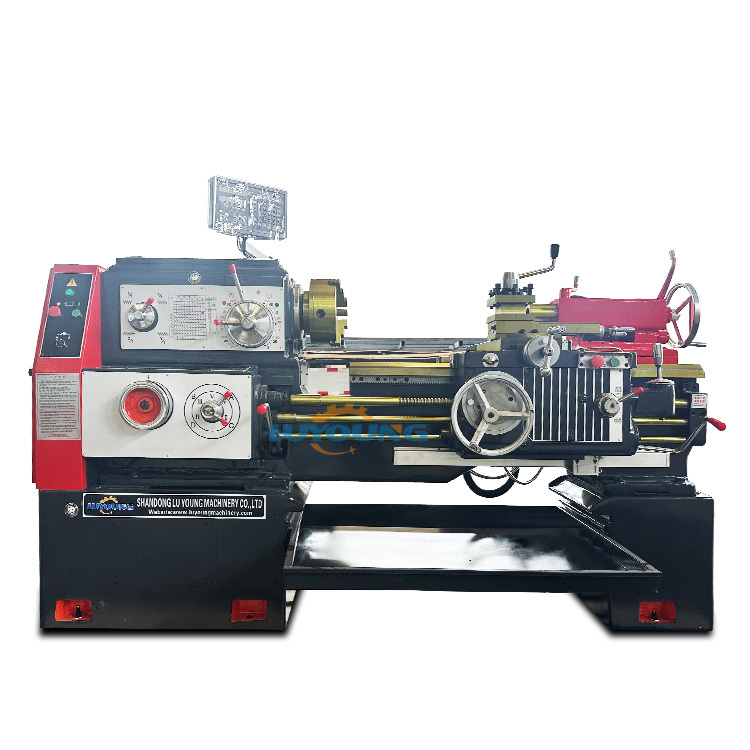

Small Manual Lathe Machine C6241x750mm Threading Machine

Name: Small Manual Lathe Machine C6241x750mm Threading Machine
Brand: shandong lu young machinery co.,ltd
SKU: C6241x750
Price: 8,000.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Luyoung

Certification: CE

Model Number: C6241x750

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: USD6000-10000

Packaging Details: non-fumigation wooden box

Delivery Time: 45 working days

Payment Terms: L/C, T/T

Supply Ability: 30/SET

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                small manual lathe machine, C6241x750mm threading lathe, flat bed CNC lathe


Swing Over Bed:	410mm	Distance Between Two Centers:	750mm
Chuck:	Manual Chuck	Read-out:	2 Axis Digital Read Out
Steady Rest:	Optional

Swing Over Bed:	410mm
Distance Between Two Centers:	750mm
Chuck:	Manual Chuck
Read-out:	2 Axis Digital Read Out
Steady Rest:	Optional

Small Manual Lathe Machine C6241x750mm Threading Machine

Technical Specifications

Model	Unit	C6136A	CA6140A	CA6240	CA6150	CA6250
Max.Swing over bed	mm	360	400	410	500	500
Max.Swing over carriage	mm	190	210	225	300	300
Max.Swing in gap*Effective gap length	mm	-	-	630*210	-	720*210
Distance from spindle center to bed plane guide	mm	205	205	205	250	250
Max length of bed	mm	750/1000/1500/2000/2200/3000/4000
Width of bed	mm	400
Section of turning tool	mm	25×25

Spindle Specifications

Spindle speeds: 11-1600/12-1680 rpm

Spindle bore: 52 mm

Spindle taper: NO.6(MT6)(φ90 1:20) [φ113 1:20]

Feed & Threading Capabilities

Range of metric threads: (1-192)44 (44 kinds)

Range of inch threads: (2-24tpi)21 (21 kinds)

Range of module threads: 0.25-48 (39 kinds)

Range of pitch threads: 1-96DP (37 kinds)

Tailstock Specifications

Max.tail stock spindle travel: 150 mm

Tail stock spindle diameter: 75 mm

Taper of tail stock spindle center hole: NO.5(MT5)

Motor & Dimensions

Main motor: 7.5KW

Distance between centers: 750/1000/1500/2000 mm

Key Features

The guide rails undergo high-frequency quenching and grinding treatment, offering excellent wear resistance and ensuring long-term stability and machining accuracy.
Robust thread machining capabilities for cutting metric, imperial, module, and diametral pitch threads to meet diverse processing requirements.
Multiple longitudinal and transverse feed rates (42 types each) for optimal cutting parameter selection.
