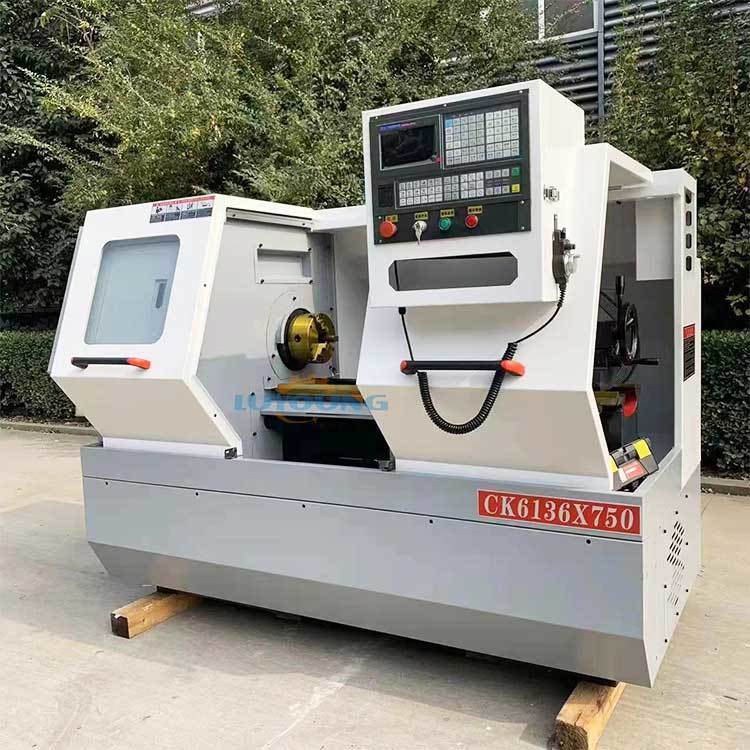

CK6136-750/ 1000mm Turning Machine CNC Lathe 6 Station Electric Turret

Name: CK6136-750/ 1000mm Turning Machine CNC Lathe 6 Station Electric Turret
Brand: shandong lu young machinery co.,ltd
SKU: CK6136
Price: 7,450.00 USD
Availability: InStock

Product Details

Place of Origin: SHANDONG

Brand Name: cnc lathe machine

Certification: CE

Model Number: CK6136

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: $6900-$8000

Packaging Details: non-fumigation wooden box

Delivery Time: 15 working days

Payment Terms: L/C, T/T

Supply Ability: 100sets per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                CNC lathe machine 6 station turret, Flat bed CNC lathe 1000mm, Turning machine electric turret warranty


Number Of Axes:	2/3/4	Spindle Taper:	MT6
Coolant System:	Yes	Style:	Flat Bed Type
Cnc Or Not:	Cnc	Precision:	High Precision
Distance Between Centres:	750/1000/1500/2000mm	Machine Dimension:	1850/2120/2370x1400x1700mm
Spindle Speed:	150-2500rpm	Main Motor Power:	5.5kw
Max Cutting Length:	750MM	Width Of Guideway:	350mm
Spindle Motor Power:	7.5kW	Max Turning Diameter:	500MM
Tool Holder:	4	Tailstock Taper:	MT-5
Model No:	Ck6136	Maximum Turning Diameter:	600mm
Warranty:	1 Year	Automatic Grade:	Automatic
Cnc Control System:	GSK

Number Of Axes:	2/3/4
Spindle Taper:	MT6
Coolant System:	Yes
Style:	Flat Bed Type
Cnc Or Not:	Cnc
Precision:	High Precision
Distance Between Centres:	750/1000/1500/2000mm
Machine Dimension:	1850/2120/2370x1400x1700mm
Spindle Speed:	150-2500rpm
Main Motor Power:	5.5kw
Max Cutting Length:	750MM
Width Of Guideway:	350mm
Spindle Motor Power:	7.5kW
Max Turning Diameter:	500MM
Tool Holder:	4
Tailstock Taper:	MT-5
Model No:	Ck6136
Maximum Turning Diameter:	600mm
Warranty:	1 Year
Automatic Grade:	Automatic
Cnc Control System:	GSK

CK6136-750/ 1000mm Turning Machine CNC Lathe 6 Station Electric Turret

Specification

Meddle CNC Lathe Machine CK6136A
Item	CK6136A
Max. swing dia. over bed	Φ360mm
Max. swing dia. over cross slide	Φ190mm
Max. processing length(mm)	750
Dia. of spindle hole	Φ52mm
Spindle speed	150-2500rpm
spindle taper	MT6
Tool holder
Tool bar section	20x20
Main motor power	5.5kw
X/Z axis fast feeding speed	6/8 m/min
X/Z axis position accuracy(mm)	0.01/0.015
X/Z-axis repeatability(mm)	0.012/0.013
Clamping	3 Jaw Manual Chuck(optional pnematic or hydraulic chuck)
Tailstock sleeve dia.	60mm
Tailstock sleeve travel	120mm
Tailstock taper	MT4
Dimension	2120x1520x1900
Weight(kg)	1600
Standard configuration:
GSK980 tb3 CNC Controller
Servo motor for X,Z axis, Servo driven

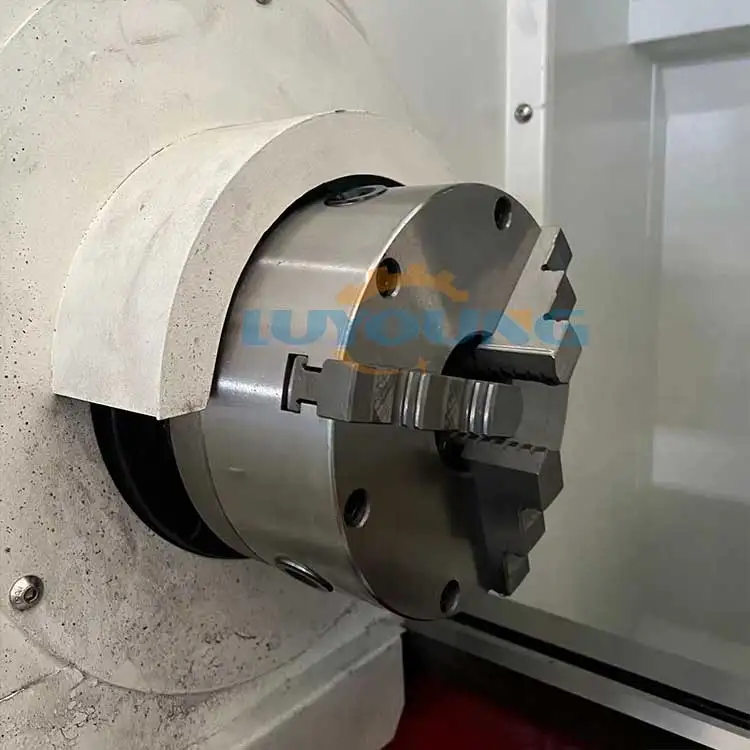

3 Jaw Manual Chuck

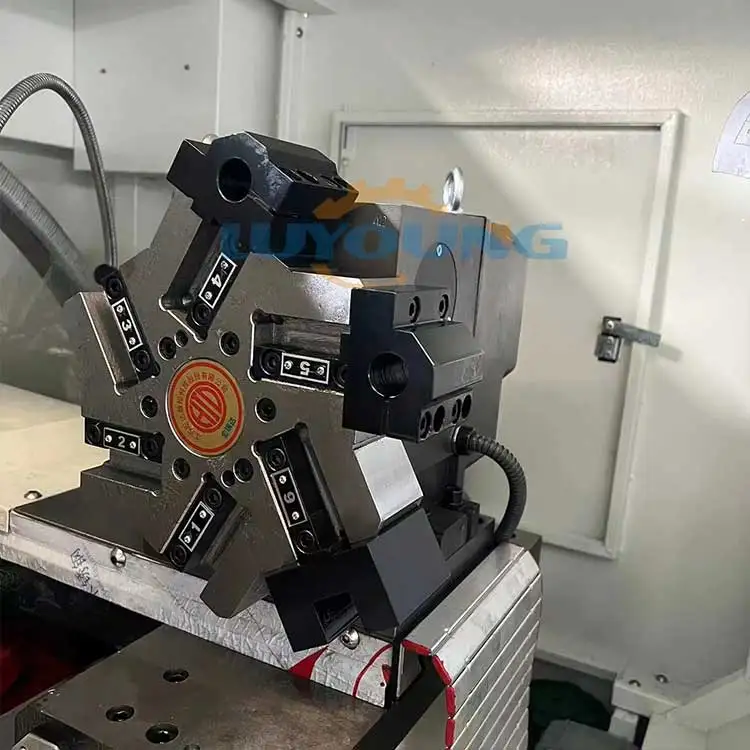

4 station electric tool post
Auto lubrication system
lighting system
cooling system

Product Description

The CK6136 CNC lathe features parallel guides that have undergone ultrasonic frequency quenching and fine grinding, ensuring high precision. The spindle is controlled by variable frequency stepless speed regulation, enabling automatic continuous processing of parts' inner and outer cylindrical surfaces, end faces, arbitrary conical surfaces, arc surfaces, and imperial threads. According to user requirements, either Siemens or Japanese CNC systems can be selected. Special attachments such as pneumatic chucks and hydraulic chucks can be added based on user needs.
