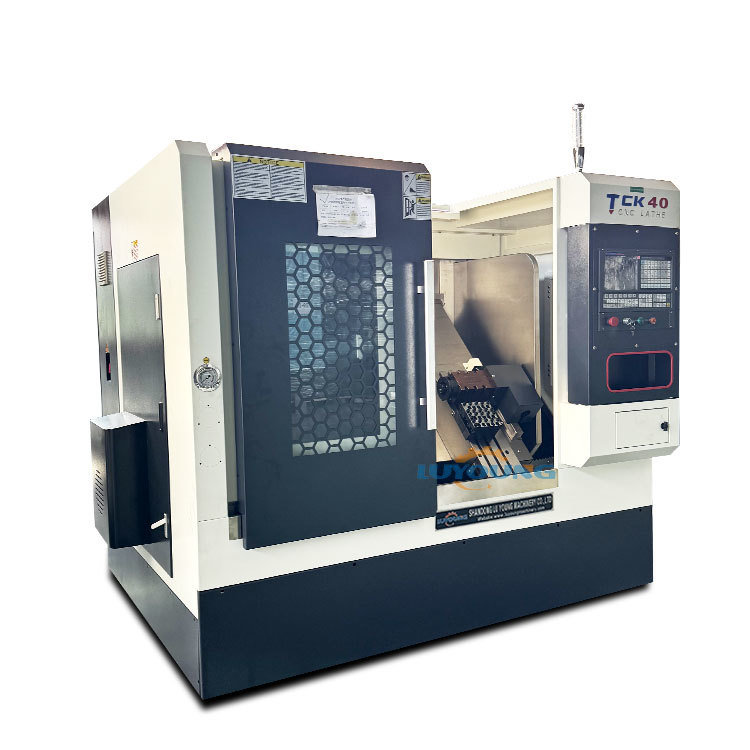

TCK40 Small Slant Bed CNC Lathe Machine for Multi-Purpose Metal Processing

Name: TCK40 Small Slant Bed CNC Lathe Machine for Multi-Purpose Metal Processing
Brand: shandong lu young machinery co.,ltd
SKU: TCK40
Availability: InStock

Product Details

Place of Origin: Shandong, China

Brand Name: Lu Young

Certification: CE

Model Number: TCK40

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1/SET

Price: $15,000.00/sets >=1 sets

Packaging Details: non-fumigation wooden box

Delivery Time: 20 working days

Payment Terms: T/T

Supply Ability: 30/SET

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                small slant bed CNC lathe, multi-purpose metal processing lathe, TCK40 CNC lathe machine


Spindle Motor:	7.5kw	Bed Type:	Whole Body Slant Type 45°
Spindle C Motor:	4	Z Axis Travel:	400
Coolant System:	Included	Positioning Accuracy:	±0.016mm
Key Words:	Slant Bed CNC Lathe Machine	Max Turning Diameter:	400mm
Spindle Speed Ranges:	3500rpm	Tailstock Type:	Hydraulic
Spindle Tape:	A2-6	Voltage:	380v 3 Phase
Machine Weight:	3500kg

Spindle Motor:	7.5kw
Bed Type:	Whole Body Slant Type 45°
Spindle C Motor:	4
Z Axis Travel:	400
Coolant System:	Included
Positioning Accuracy:	±0.016mm
Key Words:	Slant Bed CNC Lathe Machine
Max Turning Diameter:	400mm
Spindle Speed Ranges:	3500rpm
Tailstock Type:	Hydraulic
Spindle Tape:	A2-6
Voltage:	380v 3 Phase
Machine Weight:	3500kg

TCK40 Small Slant Bed CNC Lathe Machine for Multi-Purpose Metal Processing

Specification

Item	Model	TCK40
Working Range	Max swing over bed dia.	Φ400
	Max swing over cross slide dia.	Φ120
	Max cutting length(mm)	400
Fast forward	X-axis rapid traverse(m/min)	24m(3210)
	Z-axis rapid traverse(m/min)	24m(3210)
X,Y axis travel range	X axis(mm)	800
	Z axis(mm)	420
Feeding	X axis motor torque(N.M)	5
	X/Z axis linear guide way (mm)	35/35
	Z axis motor torque(N.M)	7.5
	X and Z axis connection mode	direct connection
Lathe body	Gradient	45°
Accuracy	PositionaI accuracy	±0.007
	Repositioning Accuracy	±0.003
	type	Gang type tool holder
	Cutting tool shape size	20×20
Sleeve spindle unit	Max turning speed(rpm)	3000
	Max. spindle hole	Φ48
	Spindle nose	A2-5
	Spindle taper	1:20
	Main motor power(kW)	5.5
Net Weight	1500
Dimensions(mm)	210014501850

The TCK40 popular small vertical lathe with combined tool holder and CNC inclined bed lathe machine tool product is a semi-enclosed inclined bed lathe and turning-milling machine, featuring X, Y, Z and C-axis servo control functions. Its structure and external dimensions are compact and reasonable. The spindle (C-axis) is driven by a servo motor. It can complete the external circle, end face and thread turning of various materials (such as shafts and discs), as well as various radial and axial plane milling and drilling processing. It is suitable for efficient processing of small parts.
