Accurate Slant Bed CNC Lathe Machine 12 station living turret for High-Performance

Name: Accurate Slant Bed CNC Lathe Machine 12 station living turret for High-Performance
Brand: shandong lu young machinery co.,ltd
SKU: tck56
Availability: InStock

Product Details

Place of Origin: Shandong, China

Brand Name: luyoung

Certification: CE

Model Number: tck56

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1/SET

Price: $35,000.00/sets >=1 sets

Packaging Details: non-fumigation wooden box

Delivery Time: 25working days

Payment Terms: T/T

Supply Ability: 30/SET

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Slant Bed CNC Lathe Machine with 12 station turret, High-performance CNC Lathe Machine with living turret, Accurate Slant Bed Lathe Machine for precision turning


Type:	Horizontal	Max. Length Of Workpiece (mm):	500
Structure:	Slant Bed Lathe	Width Of Bed (mm):	600 Mm
Spindle Motor Power(kW):	11	No. Of Spindles:	Single
Number Of Axes:	3	Travel (X Axis)(mm):	280 Mm
Travel (Z Axis)(mm):	750 Mm	Positioning Accuracy (mm):	±0.005
Repeatability (X/Y/Z) (mm):	±0.015	Dimension(LWH):	4650x2060x2100mm
Voltage:	380v 3 Phase	CNC Control System:	GSK/FANUC/SIEMENS
Tool Post Stations:	12	Weight (KG):	5700
Warranty:	1 Year	Key Selling Points:	High Safety Level
Machinery Test Report:	Provided	CNC Or Not:	CNC
Automatic Grade:	Automatic	Max.swing Over Bed:	630mm

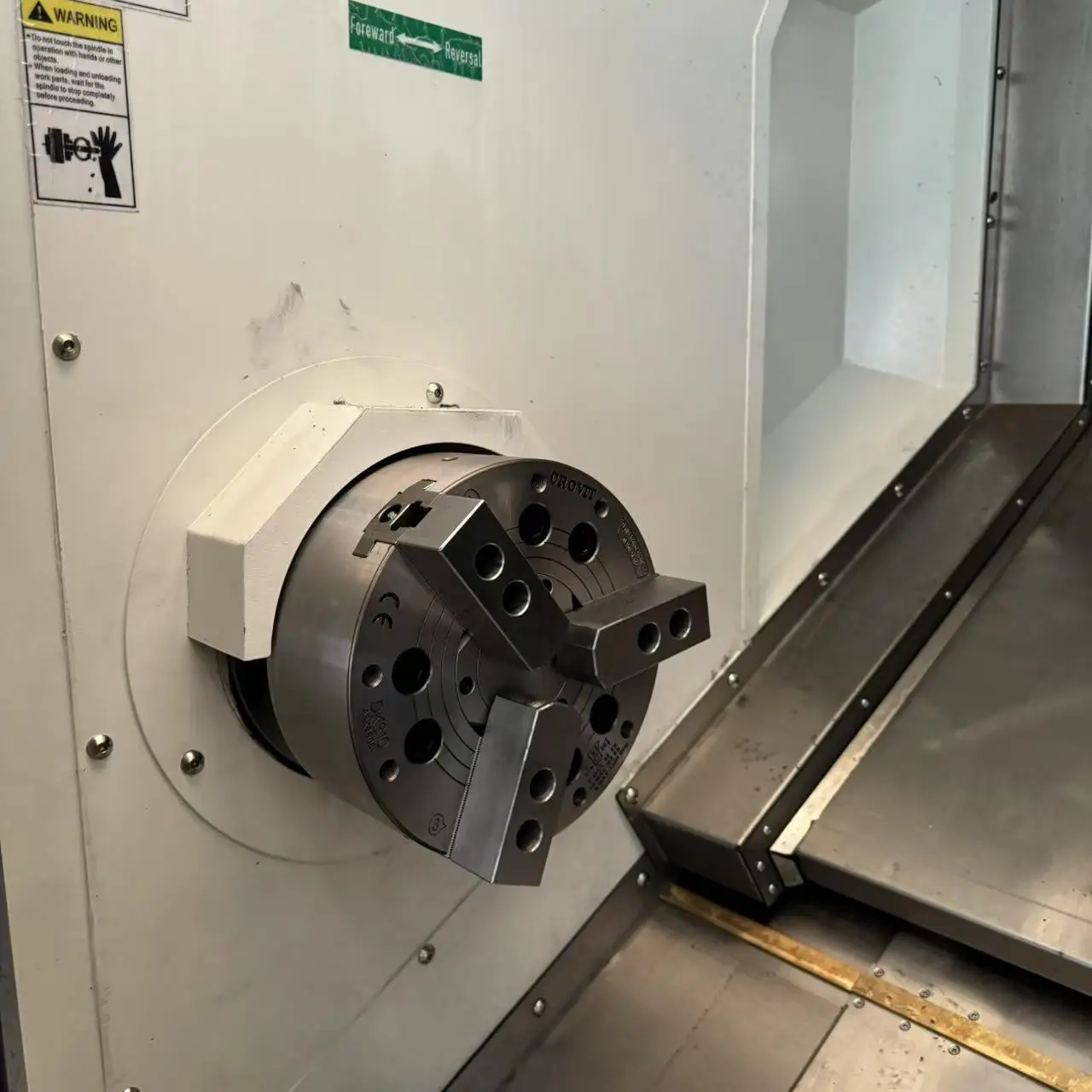

Spindle Speed:	3500r/min	Lathe Bed Straucture:	3 Jaw Hydraulic Chuck
Control System:	SIEMENS GSK FANUC (optional)	Spindle Nose:	A2-8
Spindle Bore:	60mm	Condition:	New
Year:	2025

Type:	Horizontal
Max. Length Of Workpiece (mm):	500
Structure:	Slant Bed Lathe
Width Of Bed (mm):	600 Mm
Spindle Motor Power(kW):	11
No. Of Spindles:	Single
Number Of Axes:	3
Travel (X Axis)(mm):	280 Mm
Travel (Z Axis)(mm):	750 Mm
Positioning Accuracy (mm):	±0.005
Repeatability (X/Y/Z) (mm):	±0.015
Dimension(LWH):	4650x2060x2100mm
Voltage:	380v 3 Phase
CNC Control System:	GSK/FANUC/SIEMENS
Tool Post Stations:	12
Weight (KG):	5700
Warranty:	1 Year
Key Selling Points:	High Safety Level
Machinery Test Report:	Provided
CNC Or Not:	CNC
Automatic Grade:	Automatic
Max.swing Over Bed:	630mm
Spindle Speed:	3500r/min
Lathe Bed Straucture:	3 Jaw Hydraulic Chuck
Control System:	SIEMENS GSK FANUC (optional)
Spindle Nose:	A2-8
Spindle Bore:	60mm
Condition:	New
Year:	2025

Accurate Slant Bed CNC Lathe Machine 12 station living turret for High-Performance

Specification

parameter	TCK56
Max swing over bed Dia.( mm)	Φ560
Max swing over cross slide Dia.( mm)	Φ330
The distance between two centers( mm)	500/750
X axis travel( mm)	270
Z axis travel( mm)	500/750
X,Z axis feed speed(m/min)	30/36
X/Z axis feed motor powr(kw)	2.4
X/Z axis repeated positioning accuracy	0.005/0.006
X/Z-axis positioning accuracy( mm)	0.01/0.015
Spindle speed( rpm)	10-3000rpm
Spindle nose	A2-6
Spindle bore Dia( mm)	Φ66
Chuck	10” hydraulic chuck
Main motor(kw)	11/15KW

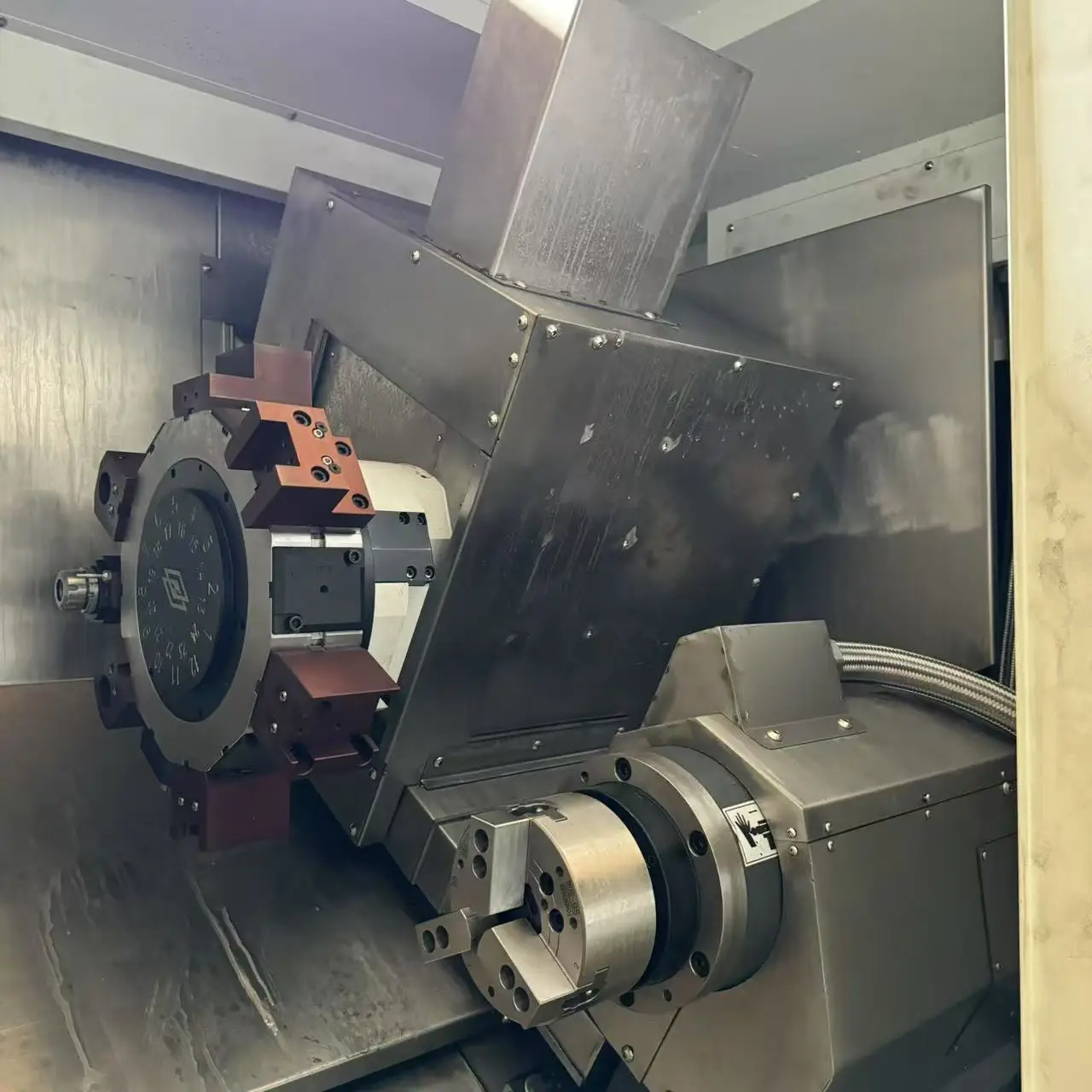

No.of tool holder	12 station
Y axis travel (mm)	90
Tool change time(s)	0.2
Tools size( mm)	25×25
Boring tool size( mm)	Φ32
Tailstock travel( mm)	440
taper of center	MT.NO.4
Coolant capacity(L)	150
LWH( mm)	231815851770
Machine weight(kg)	4500KG

Product Description

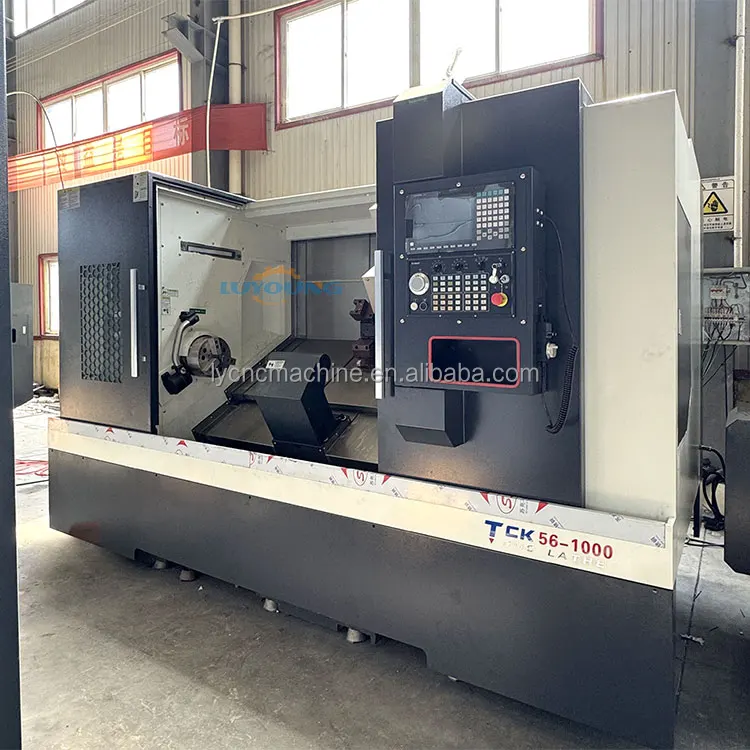

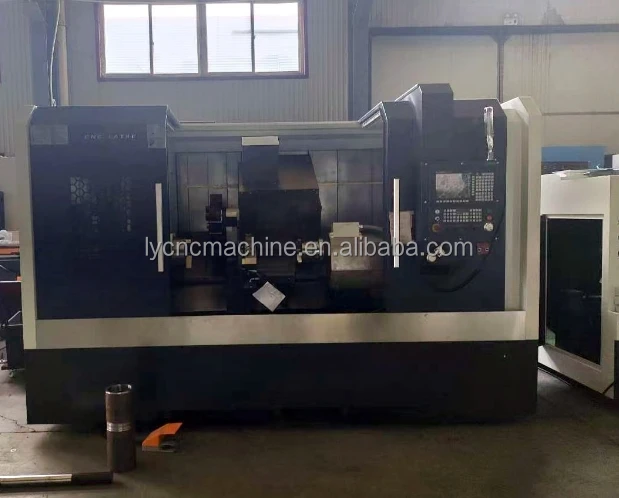

This Cnc TCK56 rotary turret 4-axis inclined bed CNC turning center lathe (a CNC strip-type automatic lathe product) is a semi-enclosed inclined bed turning and milling machine with X, Y, Z and C-axis servo control functions. Its structure and external dimensions are compact and reasonable. The spindle (C-axis) is driven by a servo motor. It can perform various operations such as outer circle, end face and thread turning of materials (such as shafts and discs), as well as various surface milling and drilling operations in radial and axial directions, and is suitable for efficient processing of large and small parts.

Product Feature

Standard configuration:

1) GSK980TB3 controller;
2) 8 stations electric tool post;
3) Linear guideways;
4) With manual tail stock;
5) 8'' hydraulic chuck;
6) Cooling system;
7) Lighten system;
8) Automatic lubrication system;

Optional configuration:

1) CNC system: Siemens, Fanuc, etc.
2)8'/10' Hydraulic chuck, hydraulic tailstock .
3) 8-station hydraulic turret;
4) Living tools
4 in end+4 in side
3 in end+3 in side
3 in end +2 in side
5)Automatic Chip conveyor;
