Product Details
Place of Origin: CHINA
Brand Name: Luyoung
Certification: CE
Model Number: M7140*1000
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1/set
Price: $12000
Packaging Details: non-fumigation wooden box
Delivery Time: 30days
Payment Terms: T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability: 10/set
Automatic Grade: |
Automatic |
Cnc Or Not: |
Normal |
Marketing Type: |
New Product 2024 |
Showroom Location: |
None |
Cylindrical Grinder Type: |
Flat Bed |
Power Source: |
Electric |
Color: |
Blue |
Production Capacity: |
High,adjustable |
Machinery Test Report: |
Provided |
Warranty Of Core Components: |
1 Year |
Specification: |
2.8-6.5 T |
Automatic Grade: |
Automatic |
Cnc Or Not: |
Normal |
Marketing Type: |
New Product 2024 |
Showroom Location: |
None |
Cylindrical Grinder Type: |
Flat Bed |
Power Source: |
Electric |
Color: |
Blue |
Production Capacity: |
High,adjustable |
Machinery Test Report: |
Provided |
Warranty Of Core Components: |
1 Year |
Specification: |
2.8-6.5 T |
| Attribute | Value |
|---|---|
| Automatic Grade | Automatic |
| Cnc Or Not | Normal |
| Marketing Type | New Product 2024 |
| Showroom Location | none |
| Cylindrical Grinder Type | Flat bed |
| Power Source | Electric |
| Color | Blue |
| Production Capacity | High, adjustable |
| Machinery Test Report | Provided |
| Warranty of core components | 1 Year |
| Specification | 2.8-6.5 T |

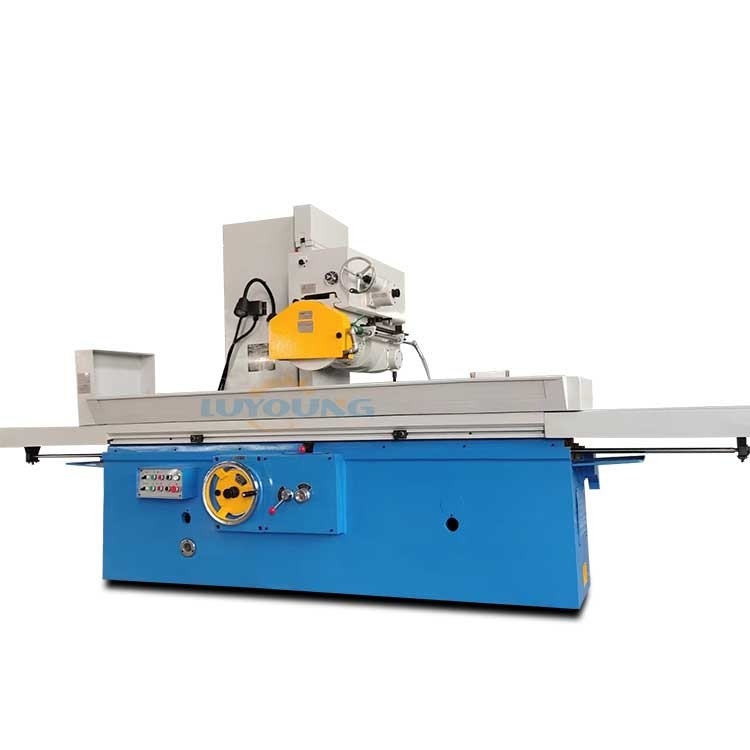

M7140-1000MM small flat bed precision surface grinding machine
| Worktable | |||
|---|---|---|---|
| Size(LengthxWidth) | mm | 1000x400 | |
| Longitudinal motion stroke | mm | 1100 | |
| T-solt quantityx width(mm) | mm | 3x18 | |
| Longitudinal velocity(stepless) | m/min | 3-25 | |
| Distance from table surface to spindle center | mm | 600 | |
| Grinding head | |||
| The stroke of grinding head | horizontal(manual and hydraulic) | mm | 440 |
| vertical(manual) | mm | 400 | |
| Size(ODxWxID) | mm | 350x40x127 | |
| speed of grinding wheel spindle | rpm | 1440 | |
| Vertical feed hand wheel per movement | mm | 0.01 | |
| Vertical feed wheel movement per lap | mm | 1 | |
| Total motor power | kw | 8.99 | |
| Grinding head motor | |||
| power | kw | 5.5 | |
| Speed | r/min | 1440 | |
| Fast lifting moter | |||
| power | kw | 0.37 | |
| Speed | r/min | 1440 | |
| Oil pump motor power | |||
| Power | kw | 3 | |
| Speed | r/min | 960 | |
| Cooling pump motor | |||
| Power | kw | 0.125 |
