High Precision Metal Automatic Surface Grinder Machine Cnc M7140 1600

Product Details

Place of Origin: CHINA

Brand Name: Luyoung

Certification: CE

Model Number: M7140*1600

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1/set

Price: $17000

Packaging Details: non-fumigation wooden box

Delivery Time: 30days

Payment Terms: T/T, D/P, D/A, Western Union, MoneyGram

Supply Ability: 10/set

Get Best Price
Highlight:

automatic surface grinder machine

,

metal surface grinder machine

,

cnc surface grinder machine

Automatic Grade:
Automatic
Cnc Or Not:
Normal
Marketing Type:
New Product 2024
Showroom Location:
None
Cylindrical Grinder Type:
Flat Bed
Power Source:
Electric
Color:
Blue
Production Capacity:
High,adjustable
Machinery Test Report:
Provided
Warranty Of Core Components:
1 Year
Specification:
2.8-6.5 T
Automatic Grade:
Automatic
Cnc Or Not:
Normal
Marketing Type:
New Product 2024
Showroom Location:
None
Cylindrical Grinder Type:
Flat Bed
Power Source:
Electric
Color:
Blue
Production Capacity:
High,adjustable
Machinery Test Report:
Provided
Warranty Of Core Components:
1 Year
Specification:
2.8-6.5 T

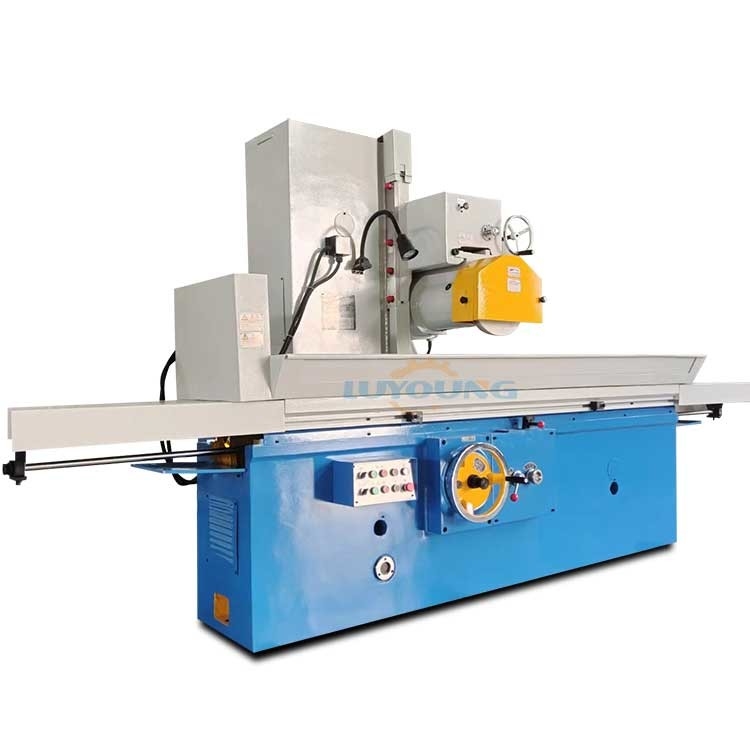

High Precision Metal Automatic Surface Grinder Machine Cnc M7140 1600
High Precision Metal Automatic Surface Grinder Machine CNC M7140 1600
High Precision Metal Automatic Surface Grinder Machine Cnc M7140 1600 0
Product Overview

The M7140-1600 is a high-precision automatic surface grinder designed for industrial metalworking applications. This electric-powered machine features a flat bed design with adjustable production capacity and delivers exceptional grinding accuracy.

Key Features
  • Automatic operation grade for efficient production
  • 1600x400mm worktable size with 1700mm longitudinal stroke
  • Precision grinding with 0.01mm vertical feed resolution
  • 12kW total motor power with 7.5kW grinding head motor
  • 1-year warranty on core components
  • Includes machinery test report
Technical Specifications
Worktable
Size (Length×Width): 1600×400 mm
Longitudinal motion stroke: 1700 mm
T-slot quantity×width: 3×18 mm
Longitudinal velocity (stepless): 3-25 m/min
Distance from table surface to spindle center: 570 mm
Grinding Head
Horizontal stroke (manual/hydraulic): 440 mm
Vertical stroke (manual): 400 mm
Size (OD×W×ID): 350×400×127 mm
Grinding wheel spindle speed: 1440 rpm
Vertical feed hand wheel per movement: 0.01 mm
Vertical feed wheel movement per lap: 1 mm
Motor Specifications
Total motor power: 12 kW
Grinding head motor: 7.5 kW at 1440 r/min
Fast lifting motor: 0.37 kW at 1440 r/min
Oil pump motor: 4 kW at 960 r/min
Cooling pump motor: 0.125 kW
Product Attributes
Attribute Value
Automatic Grade Automatic
CNC or Not Normal
Marketing Type New Product 2024
Cylindrical Grinder Type Flat bed
Power Source Electric
Color Blue
Production Capacity High, adjustable
Warranty of core components 1 Year
Specification 2.8-6.5 T
This precision surface grinder is ideal for industrial manufacturing applications requiring high accuracy and repeatability in metal surface finishing operations.
