Product Details
Place of Origin: China
Brand Name: Luyoung
Certification: CE

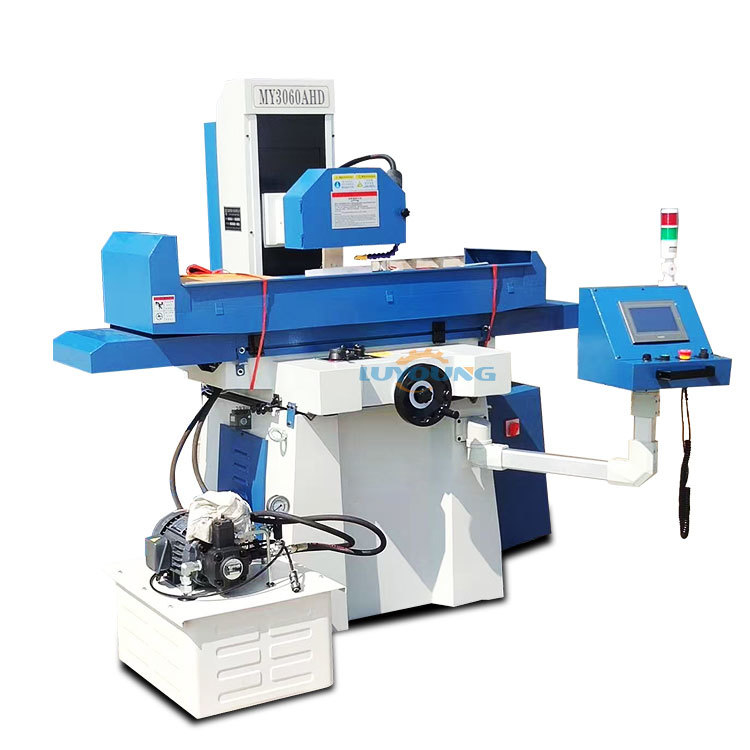

Model Number: MY3060AHD
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD20000-USD29000
Packaging Details: non-fumigation wooden box
Delivery Time: 45 working days
Payment Terms: L/C,T/T
Grinding Workpiece: |
700x300x300 |
Workbench Slide: |
Pair V Rail |
Maximum Load Of Workbench: |
200kg |
Workbench T Groove: |
14x1 |
Spindle Motor: |
4KW |
Grinding Workpiece: |
700x300x300 |
Workbench Slide: |
Pair V Rail |
Maximum Load Of Workbench: |
200kg |
Workbench T Groove: |
14x1 |
Spindle Motor: |
4KW |
| Grinding Workpiece | 700x300x300 mm |
| Workbench Slide | Pair V Rail |
| Maximum Load of Workbench | 200kg |
| Workbench T Groove | 14x1 mm |
| Spindle Motor | 4KW |
| Maximum size of grinding workpiece | 700×300×300 mm |
| Maximum longitudinal movement of the worktable | 750 mm |
| Maximum lateral movement of the worktable | 300 mm |
| Maximum distance from worktable to spindle center | 550 mm |
| Workbench surface size | 600×300 mm |
| Table speed | 3-20 m/min |
| Minimum feed amount (automatic feed) | 0.001 mm |
| Grinding wheel size | 350×30×127 mm |
| Spindle speed (50 Hz) | 1450 rpm |
| Parallelism of machined surface | 300:0.005 mm |
| Surface roughness | Ra 0.32 μm |
| Machine tool dimensions | 1960×1480×1850 mm |
| Weight (gross/net) | 1.6/1.5 T |
