Product Details
Place of Origin: China
Brand Name: Luyoung
Certification: CE
Model Number: M1432
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD6000-USD30000
Packaging Details: non-fumigation wooden box
Delivery Time: 45 working days
Payment Terms: L/C, T/T
Supply Ability: 100sets
Max.length Ground: |
1500 |
Swivel Angle CW/CCW: |
3/6 |
Infinitely Variable Hydraulic Speed Control: |
0.1-3 |
Center Travel/Manual: |
≧23 |
Center Travel/Hydraulic: |
≧15 |
Max.length Ground: |
1500 |
Swivel Angle CW/CCW: |
3/6 |
Infinitely Variable Hydraulic Speed Control: |
0.1-3 |
Center Travel/Manual: |
≧23 |
Center Travel/Hydraulic: |
≧15 |

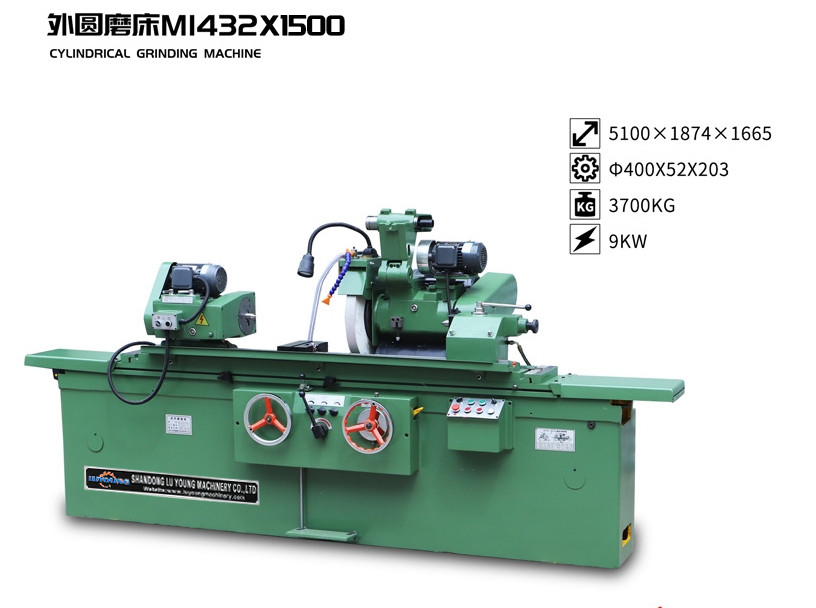

Cylindrical grinders are essential equipment in mechanical processing. Their high precision, versatility, and excellent machining results make them indispensable in various manufacturing sectors. With technological advancements, modern cylindrical grinders continue to enhance their performance to meet the growing market demands.
Specifications:
| SPECIFICATIONS | Units | M1432x1000 | M1432x1500 | |
| Capacity | Max.Dia ground | mm | 320 | 320 |
| Max.length ground | mm | 1000 | 1500 | |
| Min.Dia ground | mm | 10 | 10 | |
| Max.load weight between centers | kg | 150 | 150 | |
| Max.ground hold dia(ID) | mm | 125 | 125 | |
| Max. grinding depth | mm | 160 | 160 | |
| Center Height | mm | 165 | 165 | |
| Max. length between centers | mm | 1000 | 1500 | |
| Worktable | Swivel angle CW/CCW | ° | 3/6 | 3/6 |
| Infinitely variable hydraulic speed control | m/min | 0.1-3 | 0.1-3 | |
| Max.travel | mm | 1010 | 1510 | |
| Handwheel /revolution | mm | 9.6 | 9.6 | |
| Workhead | Work head swiveling angle | ° | CCW:60° ; CW:30° | CCW:60° ; CW:30° |
| Spindle taper | Morse No.4 | Morse No.4 | ||
| Speed range | rpm | 30,48,75,118,190,300 | 30,48,75,118,190,300 | |
| Tailstock | Center travel/Manual | mm | ≧23 | ≧23 |
| Center travel/Hydraulic | mm | ≧15 | ≧15 | |
| Internal grinding tool | Internal grinding spindle speed | r/min | 14000 | 14000 |
| Spindle taper | 1:5 | 1:5 | ||
| Motor | Compulsory lubrication motor | Kw | 1.5 | 1.5 |
| Coolant motor | 0.15 | 0.15 | ||
| Grinding wheel motor | 5.5 | 5.5 | ||
| Wotkhead motor | 0.75 | 0.75 | ||
| Internal grinding motor | 1.1 | 1.1 | ||
| Wheel head | Grinding wheel size (D x W x B) | mm | 500*52*203 | 500*52*203 |
| Revolution angle(CW/CCW) | ° | 10/5 | 10/5 | |
| Spindle speed | rpm | 1316 | 1316 | |
| Fast travel speed | r/min | ≧30 | ≧30 | |
| Lateral manual stroke | mm | 65 | 65 | |
| Handwheel feed/revolution | mm | 1 | 1 | |
| Min feed | mm | 0.002 | 0.002 | |
| Wheelhead total feed travel | mm | 150 | 150 | |
| General Specification | Machine size | mm | 3400x1800x1800 | 4300*1650*1700 |
| Machine weight | kg | 3700 | 4200 | |
Manual Grinding: Longitudinal Grinding, Plunge Grinding.
