Product Details
Place of Origin: China
Brand Name: Luyoung
Certification: CE
Model Number: M7150x2000
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD32400-USD45000
Packaging Details: non-fumigation wooden box
Delivery Time: 45 working days
Payment Terms: L/C, T/T
Supply Ability: 100sets
Workbench Size (width X Length): |
500x2000mm |
Maximum Grinding Size (width X Length X Height): |
500x2000mm |
Workbench Speed (stepless Speed Regulation): |
3-25m/min |
Longitudinal Movement Of Worktable (hydraulic): |
200-2100mm |
Workbench Load Capacity (including Electronic Suction Cup): |
1600kg |
Workbench Size (width X Length): |
500x2000mm |
Maximum Grinding Size (width X Length X Height): |
500x2000mm |
Workbench Speed (stepless Speed Regulation): |
3-25m/min |
Longitudinal Movement Of Worktable (hydraulic): |
200-2100mm |
Workbench Load Capacity (including Electronic Suction Cup): |
1600kg |
| Attribute | Value |
|---|---|
| Workbench size (width × length) | 500 × 2000mm |
| Maximum grinding size (width × length × height) | 500 × 2000mm |
| Workbench speed (stepless speed regulation) | 3-25m/min |
| Longitudinal movement of worktable (hydraulic) | 200-2100mm |
| Workbench load capacity (including electronic suction cup) | 1600kg |
| Parameter | Unit | Value |
|---|---|---|
| Workbench size (width × length) | mm | 500×2000 |
| Number of T-slots on workbench | 3 | |
| Electronic suction cup size (width × length) | mm | 500×1000 (2 pieces) |
| Grinding wheel size (outer diameter × width × inner diameter) | mm | Φ 350 × 40 × Φ 127 |
| Machine tool dimensions (approx.) (length × width × height) | mm | 5000 ×1875×2400 |
| Net weight (approx.) | Kg | 6300 |

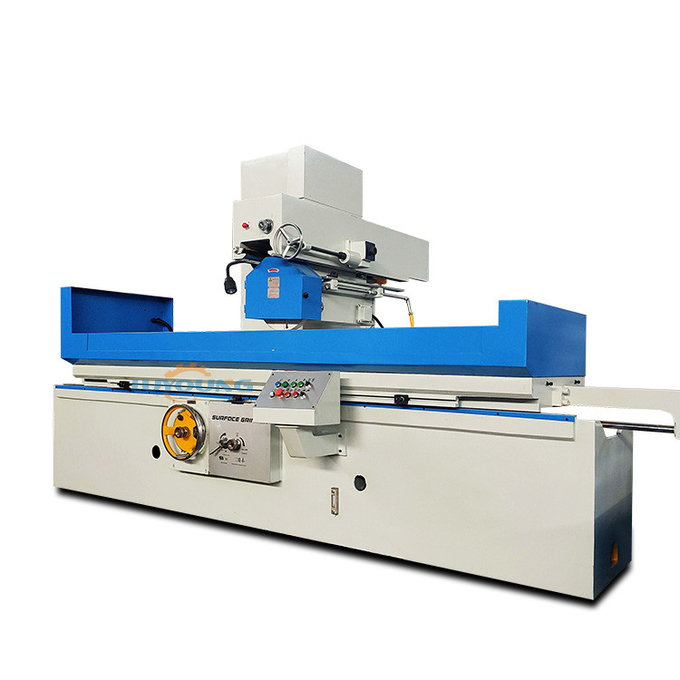

The M7150×2000 is a large horizontal spindle rectangular table surface grinder designed for processing flat and inclined surfaces of large workpieces. Ideal for precision grinding in heavy machinery, molds, and energy equipment industries.
This precision grinding machine is specifically designed for heavy-duty grinding tasks requiring high accuracy and smooth finishes, making it suitable for:
