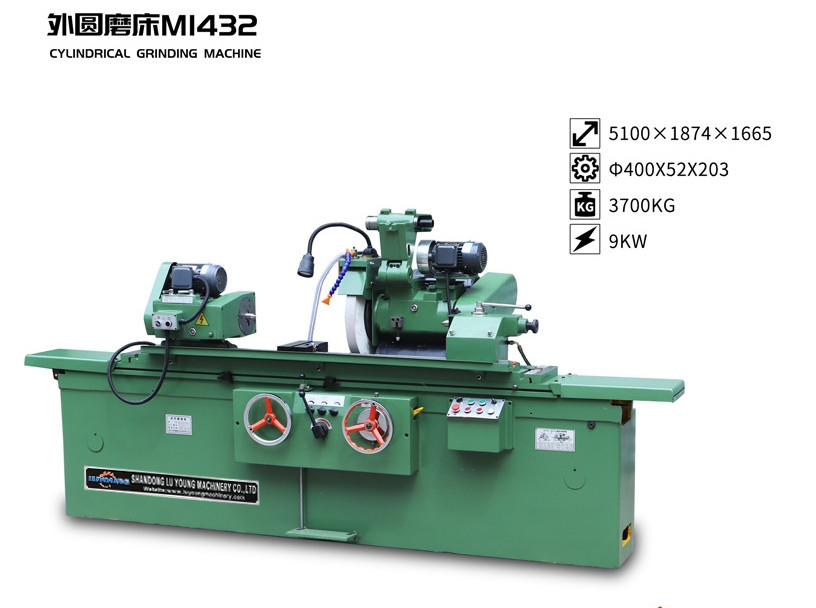

M1432x1000mm Distance Universal Cylindrical Grinder Machine High Precision

Name: M1432x1000mm Distance Universal Cylindrical Grinder Machine High Precision
Brand: shandong lu young machinery co.,ltd
SKU: M1432
Price: 18,000.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Luyoung

Certification: CE

Model Number: M1432

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: USD6000-USD30000

Packaging Details: non-fumigation wooden box

Delivery Time: 45 working days

Payment Terms: L/C, T/T

Supply Ability: 30/SET

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                Universal Cylindrical Grinder Machine, M1432x1000mm, High Precision Universal Cylindrical Grinding Machine


Max.Dia Ground:	320	Max.length Ground:	1000
Max.load Weight Between Centers:	150kg	Max.ground Hold Dia(ID):	125mm
Center Height:	165mm

Max.Dia Ground:	320
Max.length Ground:	1000
Max.load Weight Between Centers:	150kg
Max.ground Hold Dia(ID):	125mm
Center Height:	165mm

M1432x1000mm Distance Universal Cylindrical Grinder Machine High Precision

Key Specifications

Attribute	Value
Max.Dia ground	320
Max.length ground	1000
Max.load weight between centers	150kg
Max.ground hold dia(ID)	125mm
Center Height	165mm

Precision Cylindrical Grinder Overview

Cylindrical grinders are precision machine tools specifically engineered for grinding outer workpiece surfaces, widely utilized in mechanical manufacturing and processing industries.

Core Components

Headstock: Fixes and drives the workpiece, ensuring grinding stability
Tailstock: Provides additional support for long workpieces
Wheelhead: Houses the grinding wheel for operational grinding

Operating Principle

The rotating grinding wheel removes excess material while the workpiece is clamped between headstock and tailstock, achieving precise dimensional accuracy.

Key Advantages

High Precision: Achieves exceptional machining accuracy for shafts and conical shapes
Material Versatility: Processes various materials including aluminum and steel
Operational Efficiency: Designed for easy workpiece loading/unloading with automation
Superior Finish: Delivers excellent surface quality, reducing post-processing time

Technical Specifications

Specification	Units	M1432x1000
Max.Dia ground	mm	320
Max.length ground	mm	1000
Min.Dia ground	mm	10
Max.load weight between centers	kg	150
Max.ground hold dia(ID)	mm	125
Max. grinding depth	mm	160
Center Height	mm	165
Max. length between centers	mm	1000
Worktable swivel angle CCW/CW	°	3/6
Infinitely variable hydraulic speed control	m/min	0.1-3
Max.travel	mm	1010
Handwheel /revolution	mm	9.6
Work head swiveling angle	°	CCW:60° ; CW:30°
Spindle taper		Morse No.4
Speed range	rpm	30,48,75,118,190,300
Tailstock center travel/Manual	mm	≧23
Tailstock center travel/Hydraulic	mm	≧15
Internal grinding spindle speed	r/min	14000
Internal grinding spindle taper		1:5
Compulsory lubrication motor	Kw	1.5
Coolant motor	Kw	0.15
Grinding wheel motor	Kw	5.5
Workhead motor	Kw	0.75
Internal grinding motor	Kw	1.1
Grinding wheel size (D x W x B)	mm	50052203
Revolution angle(CW/CCW)	°	10/5
Spindle speed	rpm	1316
Fast travel speed	r/min	≧30
Lateral manual stroke	mm	65
Handwheel feed/revolution	mm	1
Min feed	mm	0.002
Wheelhead total feed travel	mm	150
Machine size	mm	3400x1800x1800
Machine weight	kg	3700

Industrial Applications

This precision cylindrical grinder is essential in automotive, aerospace, and defense industries for producing high-accuracy components including shafts, rolling bearings, and drill bits requiring superior surface quality.
